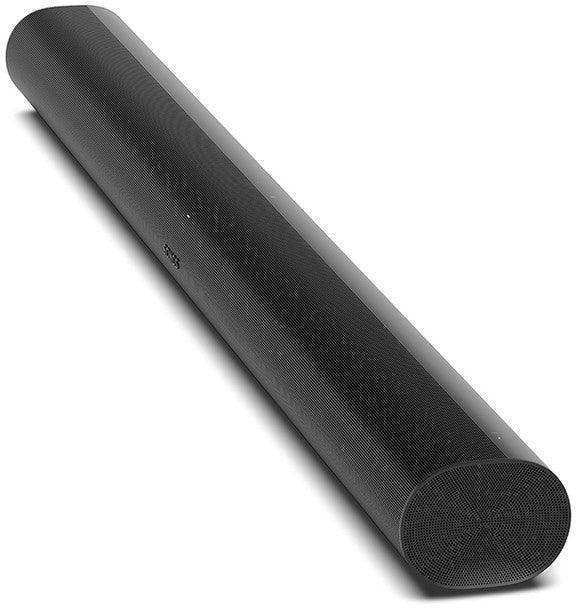

SONOS Arc Ultra Soundbar

Product Overview

The Sonos Arc Ultra soundbar is a premium home and commercial AV soundbar engineered for large display installations where high-fidelity audio and simple integration matter. Designed around Dolby Atmos 3D sound with upward-firing drivers, it delivers spatial audio that fills any room — from a private screening space to a dedicated conference room AV setup. As a wireless smart soundbar with HDMI eARC, the Arc Ultra connects directly to any compatible television or display with a single cable while supporting full network audio streaming. It is the right choice for AV integrators seeking a premium soundbar for commercial AV installation that demands minimal cabling and maximum audio performance.

Product Description

The Sonos Arc Ultra soundbar is powered by 11 Class-D digital amplifiers, each driving a dedicated speaker driver to produce full-range stereo and overhead audio from a single unit. Dolby Atmos support via upward-firing drivers creates a three-dimensional sound field without the need for rear satellite speakers, making it well-suited for conference rooms, executive offices, and high-end media rooms where a clean, minimal installation is preferred.

Connection is handled through a single HDMI eARC port, which passes both audio and control signals over the same cable used to connect to the display. This simplifies rack infrastructure and reduces the number of cable runs required during commercial AV installation. For network audio, the Arc Ultra supports Wi-Fi 802.11b/g/n on the 2.4 GHz band as well as a dedicated 10/100 Ethernet port, giving installers the choice of wired or wireless deployment on managed networks.

Apple AirPlay 2 is built in, enabling direct streaming from any Apple device on the same network without additional hardware or configuration. Voice control is supported through both Google Assistant and Amazon Alexa, allowing hands-free operation in spaces where that capability is appropriate. Capacitive touch controls on the top surface handle volume adjustment, play/pause, and track navigation without a remote. The Arc Ultra's auto-switching power supply accepts 100–240 VAC at 50–60 Hz, making it compatible with international deployments. At 44.95 inches wide and 3.43 inches tall, it fits naturally beneath virtually any large-format display while maintaining a low-profile commercial-grade appearance in matte black.

Key Features

• 11 Class-D Digital Amplifiers — Each driver is independently powered for precise, full-range audio reproduction across the frequency spectrum.
• Dolby Atmos with Upward-Firing Drivers — Delivers true three-dimensional spatial audio without rear speakers, ideal for single-unit installations.
• HDMI eARC Connection — Single-cable connection passes audio and CEC control signals, simplifying wiring in commercial AV environments.
• Wi-Fi + Ethernet Connectivity — Dual network options support both wired rack integration and wireless deployment on managed networks.
• Apple AirPlay 2 — Native AirPlay 2 support enables direct streaming from Apple devices without additional configuration.
• Voice Control Ready — Works with Google Assistant and Amazon Alexa for hands-free operation in conference rooms and executive spaces.
• Capacitive Touch Controls — Top-panel controls for volume, play/pause, and track navigation eliminate the need for a dedicated remote.
• Auto-Switching Power Supply — Accepts 100–240 VAC at 50–60 Hz for compatibility with international installations.
• Matte Black Finish — Clean commercial-grade aesthetic integrates with professional display and rack environments.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

Does the Sonos Arc Ultra require a Sonos ecosystem to function?

No. The Arc Ultra operates as a standalone soundbar over HDMI eARC. It also integrates into a broader Sonos multi-room audio system when paired with other Sonos devices via the Sonos app.

Is HDMI eARC the only way to connect the Arc Ultra?

HDMI eARC is the primary connection for TV and display audio. Network audio via Wi-Fi, Ethernet, and AirPlay 2 are available for direct streaming from source devices on the same network.

Can the Arc Ultra be controlled by a third-party AV control system?

The Sonos platform supports integration with control systems from manufacturers such as Control4, Crestron, and Savant. Consult the Sonos integration documentation for your specific control system for setup requirements.

Does it support Dolby Atmos from all sources?

Dolby Atmos is decoded from compatible sources passed through the HDMI eARC connection. Streaming services that deliver Dolby Atmos content are supported when accessed via a compatible connected device.

What is the warranty on the Sonos Arc Ultra?

The Sonos Arc Ultra carries a standard Sonos limited warranty. Contact Creation Networks for warranty registration and support options for commercial installations.

Is professional installation recommended for commercial deployments?

For conference rooms and commercial AV environments, professional installation is recommended to ensure correct HDMI eARC passthrough, network configuration on managed Wi-Fi or wired Ethernet, and integration with room control systems.

Can the Arc Ultra be wall-mounted below a display?

Yes. The Arc Ultra is designed to sit on a surface or be wall-mounted beneath a display using compatible mounting hardware. At 44.95 inches wide, confirm display and mount dimensions before specifying.
