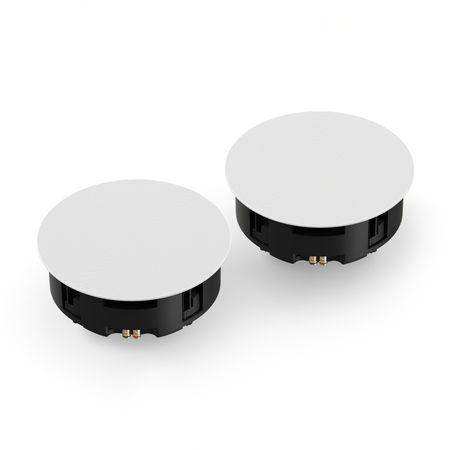

Sonos® Architectural 8" In-Ceiling Speakers (Pair)

Product Overview

The Sonos 8-inch in-ceiling speakers are architectural in-ceiling speakers designed for commercial installation where discreet overhead audio is required without compromising sound quality. Developed through the Sonos and Sonance partnership, these flush mount ceiling speakers deliver a frequency response of 41 Hz to 20 kHz and are optimized for use with the Sonos Amp and its Trueplay tuning system. Sold as a pair with a nominal impedance of 8 ohms, they are a direct fit for conference rooms, training rooms, and commercial meeting spaces that need a clean, painted-over ceiling look. AV integrators specifying Sonos Amp compatible in-ceiling speakers will find these a reliable, system-integrated choice for permanent commercial AV installation.

Product Description

The Sonos Architectural 8-inch In-Ceiling Speakers (model SONOS-INCL-8-SPKR) are passive flush-mount speakers that require a Sonos Amp for operation. At 11.1 inches in diameter and 5.3 inches in depth, they fit standard ceiling rough-in cuts and work with typical commercial ceiling depths found in suspended grid and drywall ceiling assemblies. The pair weighs 9.04 lb combined, making installation manageable during above-ceiling work.

Sensitivity is rated at 86 dB SPL, and nominal impedance is 8 ohms, which is compatible with the Sonos Amp’s output stage. The frequency response of 41 Hz to 20 kHz provides full-range audio reproduction suitable for background music, voice intelligibility in conference and training environments, and general commercial audio. Trueplay tuning through the Sonos Amp automatically adjusts the speaker output based on the acoustic characteristics of the room, which is particularly useful in commercial spaces with variable ceiling heights, furniture, and wall treatments.

The grilles are paintable, allowing the speakers to blend with virtually any ceiling finish color and meet the aesthetic requirements of executive boardrooms, government spaces, or hospitality environments. Up to three pairs of these speakers can be driven by a single Sonos Amp, enabling efficient zone coverage in larger rooms without additional amplification hardware. All speakers in the zone participate in the full Sonos multi-room ecosystem and can be grouped with other Sonos zones through the Sonos app. This makes them an efficient solution for AV integrators building out multi-zone commercial audio systems using a Sonos backbone.

Key Features

• Sonos + Sonance Architectural Design — Co-engineered for tight Sonos ecosystem integration with proven architectural speaker construction.
• 41 Hz–20 kHz Frequency Response — Full-range audio reproduction suitable for speech intelligibility and background music in commercial spaces.
• Trueplay Tuning Compatible — Works with Sonos Amp’s Trueplay system for automatic acoustic calibration to the room environment.
• Flush Mount, Paintable Grille — Grilles can be painted to match any ceiling finish for a clean architectural appearance in executive or government spaces.
• Up to 3 Pairs Per Sonos Amp — Efficient zone coverage allows multiple speaker pairs on a single Sonos Amp, reducing amplifier count in multi-speaker rooms.
• 8 Ohm Nominal Impedance — Standard impedance rating for compatibility with the Sonos Amp and other 8-ohm compatible amplifiers.
• 86 dB SPL Sensitivity — Adequate sensitivity for commercial room coverage at normal listening levels driven by the Sonos Amp.
• Sonos Multi-Room Integration — Zone participates in full Sonos ecosystem for grouped playback and centralized control via the Sonos app.
• Sold as Pair — Two speakers included for stereo in-ceiling deployment in a single zone.

Typical Applications

• Conference room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room
• Government space
• Huddle room
• All-hands room

Technical Specifications

Frequently Asked Questions

Can these in-ceiling speakers be driven by an amplifier other than the Sonos Amp?

These are standard passive 8-ohm speakers and will accept signal from any amplifier with compatible impedance and power output. Sonos-specific features such as Trueplay tuning and app-based multi-room control require the Sonos Amp.

How many pairs can a single Sonos Amp support?

A single Sonos Amp can drive up to three pairs of these 8-ohm in-ceiling speakers. For rooms requiring more than six speaker positions, additional Sonos Amp units will be required.

Are the grilles paintable after installation?

Yes. The grilles are designed to accept standard latex paint for matching to the ceiling finish. Use light coats to avoid clogging the grille material and affecting acoustic performance.

What ceiling depth is required for installation?

The speakers require a minimum ceiling cavity depth of 5.3 inches behind the mounting surface. Verify ceiling depth against existing structure, insulation, and any above-ceiling MEP before rough-in.

Does Trueplay tuning require any special setup steps?

Trueplay is configured through the Sonos app using an iOS device. The app walks through the calibration process room by room. Complete the process after furniture and final finishes are in place for best results.

Are these speakers appropriate for conference rooms with speech reinforcement requirements?

These speakers are designed for background music and distributed audio, not for speech reinforcement or PA applications. For conference room speech reinforcement, a dedicated DSP-based audio system is recommended.

What warranty covers these speakers?

The Sonos Architectural In-Ceiling Speakers carry a standard Sonos limited warranty. Contact Creation Networks for commercial installation warranty registration and support.
