Sonance VX42R 4" Round In-Ceiling Speaker with White Micro Trim Grille (Pair)

Product Overview

The Sonance VX42R is a 4" round in-ceiling speaker supplied as a pair, designed to deliver wide-dispersion, full-range audio from a low-profile ceiling footprint. It pairs a 4.5" pivoting polypropylene woofer with a 0.75" Ferrofluid-cooled cloth dome tweeter on a sinusoidal textured waveguide for consistent tonality across the room. The included white micro trim grille keeps the visible bezel minimal in finished ceilings. Flex Frame mounting and RotoLock clamps make installation fast and secure.

Product Description

The VX42R is well suited to distributed ceiling audio in conference rooms, huddle rooms, and other commercial meeting spaces where even coverage and a discreet appearance both matter. Its 4.5" textured polypropylene woofer uses a rubber surround and pivots on a coincident woofer-plus-tweeter assembly, allowing the integrator to aim output toward the listening area for more consistent coverage. The 0.75" cloth dome tweeter is Ferrofluid-cooled with an acoustic back chamber, and the sinusoidal textured waveguide widens dispersion so the sound stays balanced off-axis. Rated at 8 ohms nominal with 70 watts maximum power handling and 89dB sensitivity, the VX42R works on standard low-impedance amplifier zones. Frequency response spans 60Hz to 20kHz, covering speech and program material in background and foreground roles. Installation uses a Flex Frame one- or two-stage system with three RotoLock clamps and a 5.875" cut-out, keeping mounting depth to 4.53". The white micro trim grille is paintable to match the ceiling, and a round trimless grille option is also available. Voiced to match other Sonance in-ceiling models in the Sonance commercial audio collection, the VX42R integrates cleanly into multi-room and zoned commercial systems. Supplied as a pair, it provides a complete two-speaker solution for a single zone or room.

Key Features

• 4.5" Pivoting Woofer — Textured polypropylene cone with rubber surround pivots to aim output at the listening area.
• 0.75" Cloth Dome Tweeter — Ferrofluid-cooled with an acoustic back chamber for clear, detailed highs.
• Sinusoidal Textured Waveguide — Widens dispersion for consistent tonality across the listening area.

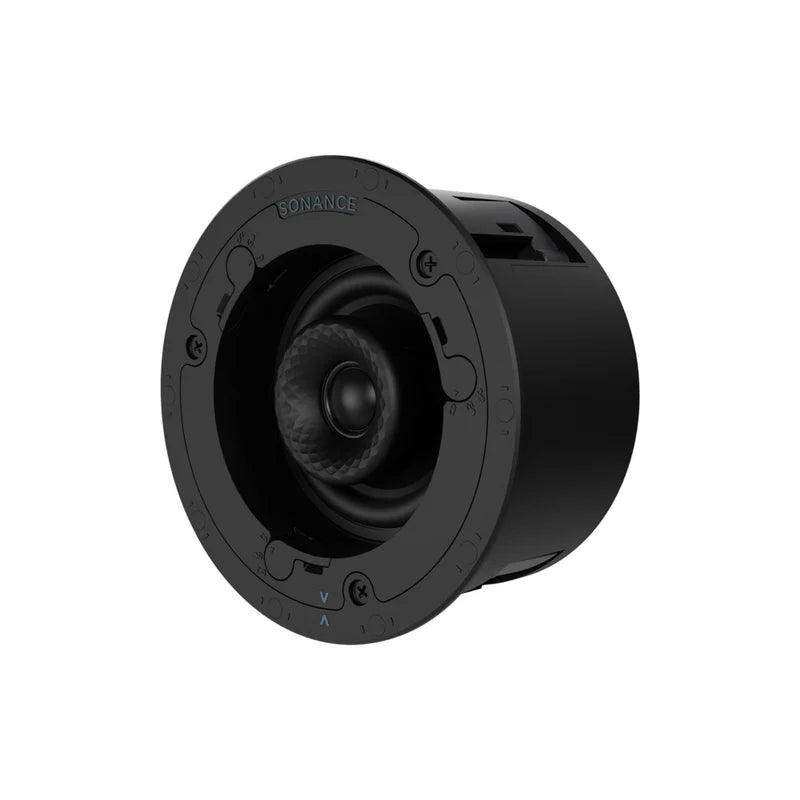

• Coincident Pivoting Assembly — Woofer and tweeter pivot together to maintain alignment when aimed.
• Flex Frame Mounting — One- or two-stage Flex Frame with three RotoLock clamps for fast, secure installation.

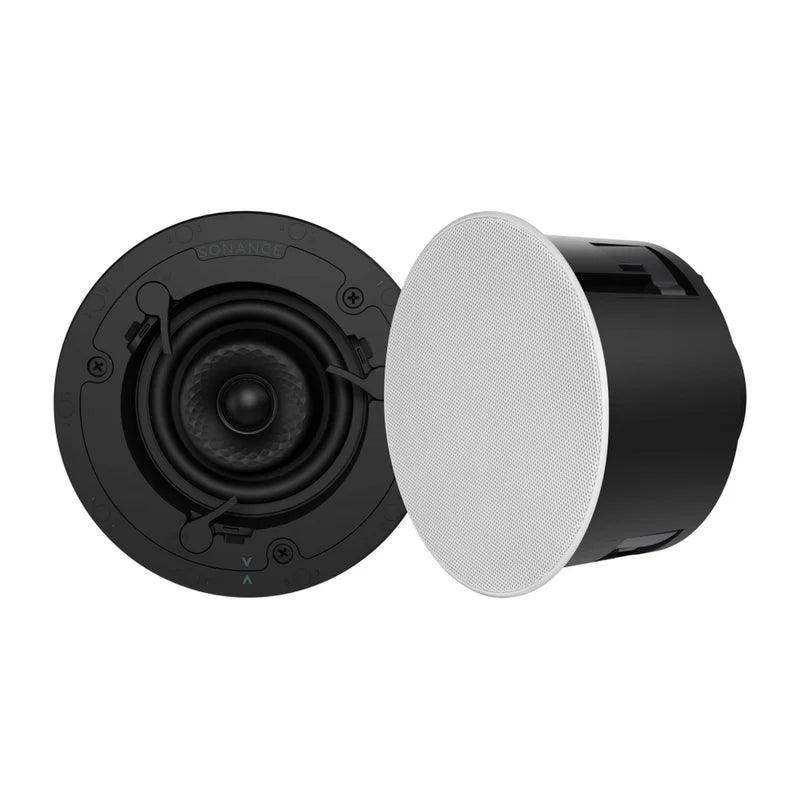

• Micro Trim Grille — White paintable grille keeps the visible bezel minimal in finished ceilings.
• 8 Ohm, 70W Power Handling — 89dB sensitivity for use on standard low-impedance amplifier zones.
• Sold As a Pair — Two speakers supplied to complete a single zone or room.

Typical Applications

The VX42R fits conference rooms, huddle rooms, boardrooms, training rooms, multi-purpose rooms, and other commercial meeting spaces that need discreet, even ceiling audio. Its pivoting drivers and wide dispersion also suit corridors and lobbies where listeners move through the coverage area.

Technical Specifications

Frequently Asked Questions

Is the VX42R sold as a pair?
Yes. This listing supplies two VX42R speakers, providing a complete two-speaker solution for a single zone or room.

Can the drivers be aimed?
Yes. The coincident woofer-and-tweeter assembly pivots together, letting the installer angle output toward the listening area for more even coverage.

What amplifier does it need?
The VX42R is 8 ohms nominal (6 ohms minimum) with 70 watts maximum power handling, so it runs on standard low-impedance amplifier zones.

What is the cut-out size and mounting depth?
It requires a 5.875" (149mm) diameter cut-out and a mounting depth of 4.53" (115mm).

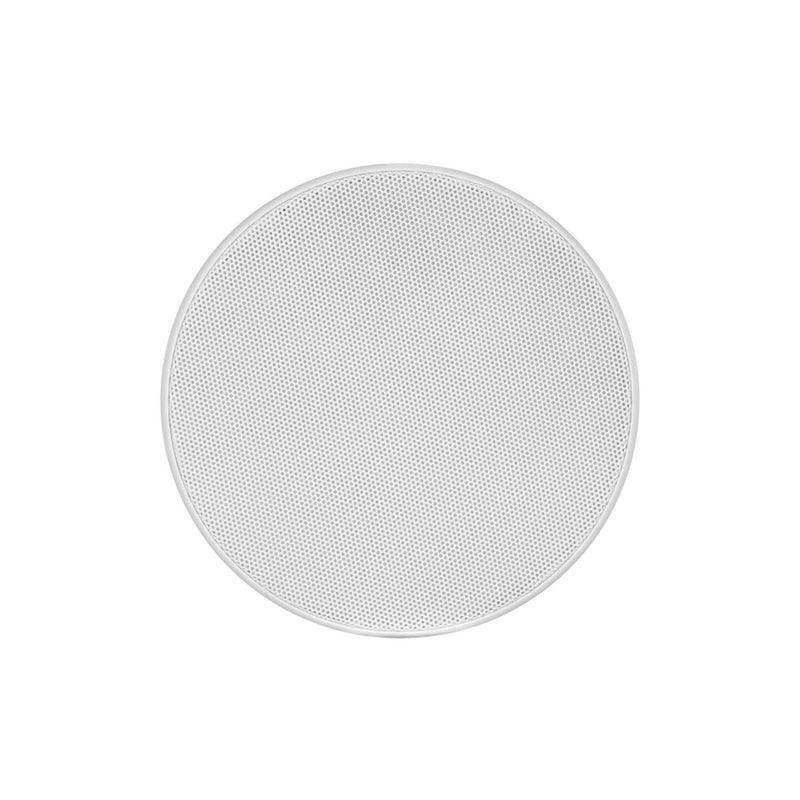

Can the grille be painted?
Yes. The white micro trim grille is paintable to match the ceiling. For specification confirmation, contact Creation Networks.
