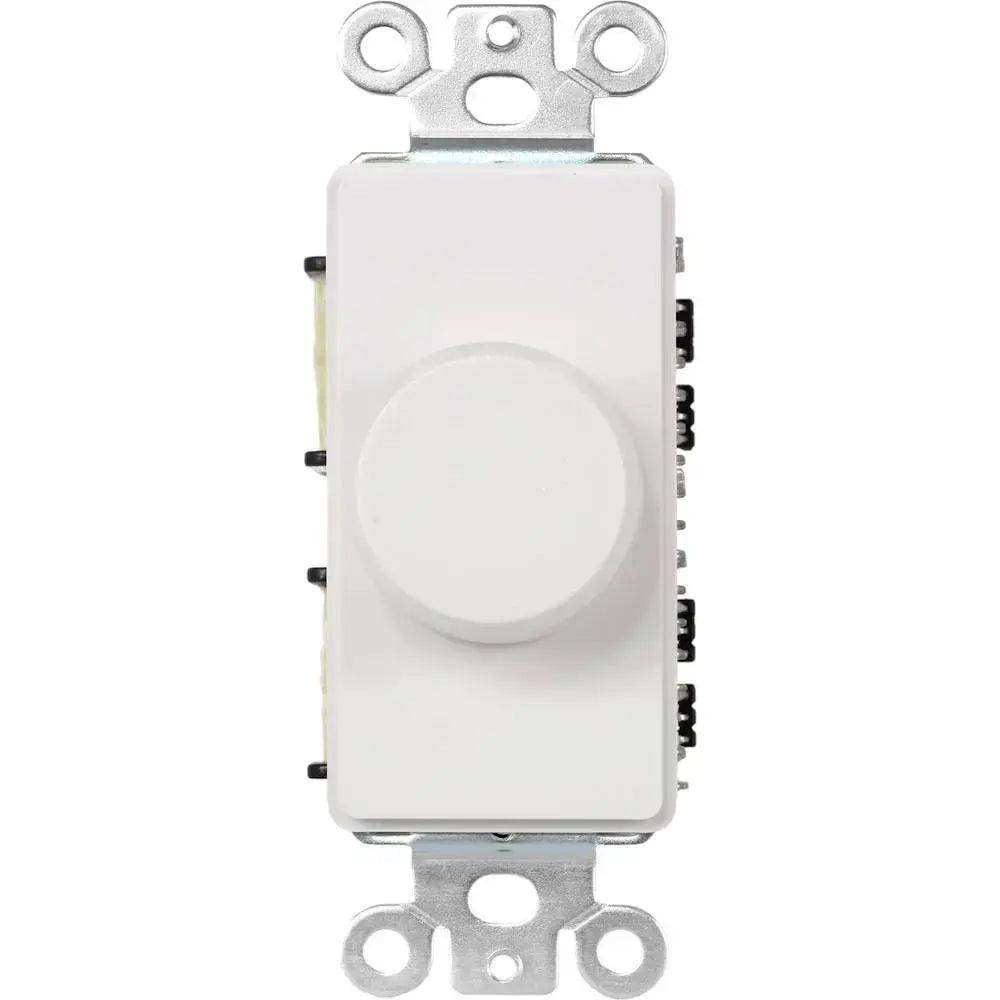

Sonance - VC60RIM - 60W Impedance Matching Volume Control In-wall Rotary (Each) - White
Sonance - VC60RIM - 60W Impedance Matching Volume Control In-wall Rotary (Each) - White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sonance - VC60RIM - 60W Impedance Matching Volume Control In-wall R...
Product Overview
The Sonance VC60RIM is a 60W impedance-matching in-wall rotary volume control for distributed commercial audio systems. It allows a single amplifier to drive multiple sets of 8-ohm speakers while a rotary knob sets the level at the wall. Fully adjustable impedance jumpers connect as many as eight pairs of speakers to one amplifier without overloading the source. The control installs in a standard wall box and finishes with the included white Decora-style plate.
Product Description
This Sonance impedance-matching volume control gives integrators reliable local level control across a zoned audio system. The Decora-style rotary knob offers soft-touch action for precise, intuitive listening adjustment. Adjustable jumpers provide 1x, 2x, 4x, and 8x impedance magnification, letting up to eight sets of 8-ohm speakers share a single amplifier while keeping the load within safe limits. The control handles a maximum of 60W per channel RMS, making it suitable for background and foreground commercial zones. A 20Hz to 20kHz frequency response maintains full-range reproduction across the audio band. Twelve stepped positions deliver up to 42 dB of maximum attenuation for controlled level setting. Quick-disconnect screw terminals accept up to 14-gauge wire for fast, secure termination in the field. The unit is UL-listed and CE approved to comply with most local building codes. For a coordinated distributed-audio build, pair this control with components from the Sonance commercial audio collection. Sold individually with the white Decora plate, the VC60RIM suits retail, hospitality, and office zoning applications.
Key Features
- Impedance Matching — Adjustable 1x, 2x, 4x, and 8x jumpers connect up to eight pairs of 8-ohm speakers to one amplifier.
- Decora Rotary Control — Soft-touch rotary knob provides precise level adjustment at the wall.
- 12-Step Attenuation — Twelve stepped positions provide up to 42 dB of maximum attenuation.
- 60W Power Handling — Handles a maximum of 60W per channel RMS for commercial zones.
- Full-Range Response — A 20Hz to 20kHz frequency response preserves faithful reproduction.
- Quick-Disconnect Terminals — Screw terminals accept up to 14-gauge wire for fast termination.
- UL-Listed and CE Approved — Certified to comply with most local building codes.

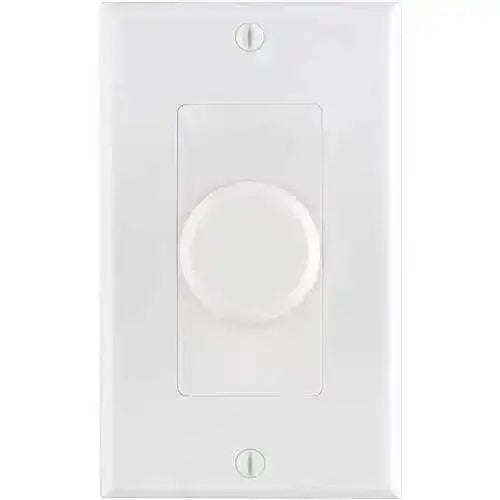

- Decora Wall Plate — Included white plate blends into standard interior finishes.
Technical Specifications
| Brand | Sonance |
| Model | VC60RIM |
| Type | Impedance-matching in-wall rotary volume control |
| Impedance Magnification | 1x, 2x, 4x, 8x |
| Power Handling | 60W per channel RMS (max) |
| Frequency Response | 20Hz – 20kHz |
| Steps / Attenuation | 12-step, up to 42 dB max attenuation |
| Wiring | Quick-disconnect screw terminal, up to 14-gauge |
| Certification | UL-listed, CE approved |
| Color | White (Decora plate) |
| Quantity | Each (sold individually) |
