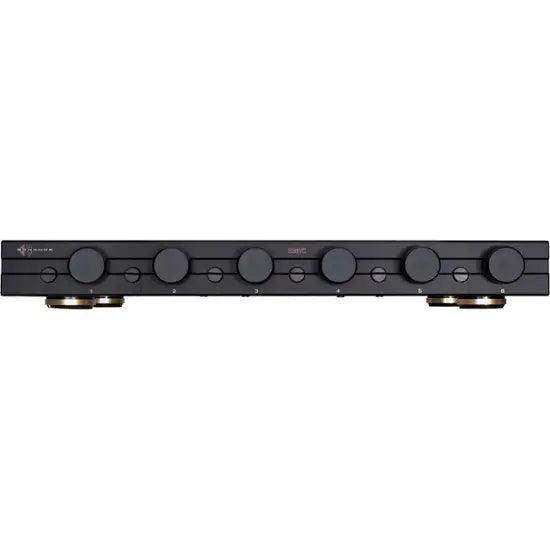

Sonance - SS6VC - 6-Pair Stereo Speaker Selector with Volume Controls (Each) - Black
Sonance - SS6VC - 6-Pair Stereo Speaker Selector with Volume Controls (Each) - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sonance - SS6VC - 6-Pair Stereo Speaker Selector with Volume Contro...
Product Overview
The Sonance SS6VC is a 6-pair stereo speaker selector with built-in volume controls, designed to distribute a single amplifier or receiver across as many as six speaker zones. Each zone has an independent on/off switch and a 12-position rotary volume knob for localized level control. A low-impedance protection circuit and 1U rack-mountable chassis make it a practical centerpiece for multi-zone commercial audio. Rated for 8 ohms per zone with quick-connect rear terminals for fast installation.
Product Description
The Sonance SS6VC speaker selector solves a common multi-zone challenge: driving several pairs of speakers from one amplifier while retaining independent control of each space. Six channels each include a soft-touch 12-position rotary volume knob, so a system designer can set room-by-room levels at the rack rather than relying on local controls. Independent on/off switches let unused zones be silenced entirely, conserving amplifier headroom for active rooms.
Power handling is rated at 75W per channel with the protection circuit engaged and 120W without, and the low-impedance protection circuit includes a slide switch that reduces the risk of damaging the unit or connected speakers when multiple zones run simultaneously. Frequency response spans 20Hz to 20kHz at 8 ohms impedance, supporting accurate reproduction across the audible range. Rear-panel quick connectors accept speaker wire up to 14 gauge for efficient termination during installation.
The SS6VC mounts in a single rack space with included rack ears, fitting cleanly into an equipment rack or AV cabinet alongside other distributed-audio components. Explore the full Sonance commercial audio collection for compatible amplifiers and speakers. For multi-room commercial facilities that need centralized, zone-by-zone audio management, the SS6VC is a dependable distribution hub.
Key Features
- Six Speaker-Pair Zones — Routes one amplifier or receiver to as many as six independent speaker pairs.
- 12-Position Volume Controls — Soft-touch rotary knobs set independent levels for each zone.
- Independent On/Off Switches — Each zone can be turned on or off individually to conserve amplifier headroom.
- Low-Impedance Protection Circuit — Slide switch reduces the risk of damaging the unit or connected speakers.
- 75W / 120W Power Handling — 75W per channel with protection engaged, 120W per channel without.
- 20Hz–20kHz Frequency Response — Accurate reproduction across the full audible range at 8 ohms.
- Quick-Connect Rear Terminals — Accept speaker wire up to 14 gauge for fast, clean installation.
- 1U Rack-Mountable — Installs in a single rack space with included rack ears.
Typical Applications
- Multi-zone commercial facilities
- Conference rooms and boardrooms
- Multi-purpose rooms
- Commercial meeting spaces
- House of worship
Technical Specifications
| Model | SS6VC |
| Type | Stereo speaker selector with volume controls |
| Zones | 6 speaker pairs |
| Volume Control | 12-position rotary, per zone |
| Power Handling | 75W with protection / 120W without (per channel) |
| Frequency Response | 20Hz – 20kHz |
| Impedance | 8 ohms |
| Wire Gauge | Up to 14 gauge |
| Protection | Low-impedance protection circuit with slide switch |
| Mounting | 1U rack-mountable (rack ears included) |
Frequently Asked Questions
How many speaker pairs can the SS6VC drive?
Up to six independent speaker pairs from a single amplifier or receiver.
Can I set different volumes for each room?
Yes. Each zone has its own 12-position rotary volume knob for independent level control.
What wire gauge do the rear connectors accept?
The quick-connect rear terminals accept speaker wire up to 14 gauge.
Does it fit in a standard equipment rack?
Yes. It is 1U rack-mountable and ships with rack ears included.
What impedance does it support?
The SS6VC is rated for 8 ohms per zone and includes a low-impedance protection circuit.
