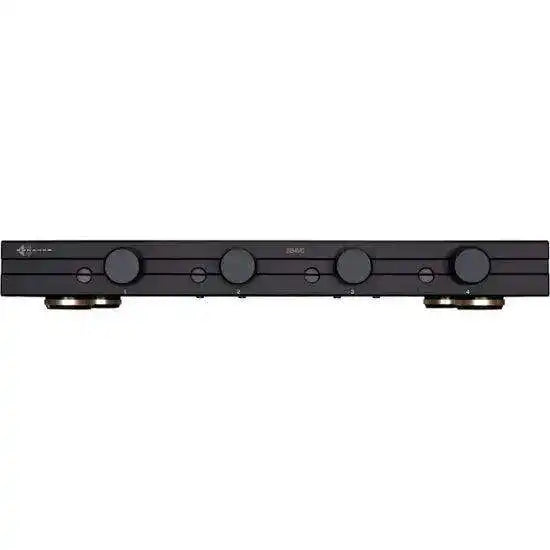

Sonance - SS4VC - 4-Pair Stereo Speaker Selector with Volume Controls (Each) - Black
Sonance - SS4VC - 4-Pair Stereo Speaker Selector with Volume Controls (Each) - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sonance - SS4VC - 4-Pair Stereo Speaker Selector with Volume Contro...
Product Overview
The Sonance SS4VC is a 4-pair stereo speaker selector with integrated volume controls, distributing a single amplifier or receiver across as many as four speaker zones. Each zone includes an independent on/off switch and a 12-position rotary volume knob for localized level adjustment. A low-impedance protection circuit and 1U rack-mountable chassis make it well suited to compact multi-zone audio installations. Rated for 8 ohms per zone with quick-connect rear terminals for fast installation.
Product Description
The Sonance SS4VC speaker selector lets an integrator drive four pairs of speakers from one amplifier while keeping independent control over each space. Every channel includes a soft-touch 12-position rotary volume knob, allowing room-by-room levels to be set at the rack instead of relying on local controls. Independent on/off switches let unused zones be silenced entirely, preserving amplifier headroom for the rooms in active use.
Power handling is rated at 75W per channel with the protection circuit engaged and 120W without, and the low-impedance protection circuit includes a slide switch that reduces the risk of damaging the unit or connected speakers when several zones run at once. Frequency response spans 20Hz to 20kHz at 8 ohms impedance for accurate reproduction across the audible range. Rear-panel quick connectors accept speaker wire up to 14 gauge for efficient termination.
The SS4VC occupies a single rack space with included rack ears, integrating cleanly into an equipment rack or AV cabinet alongside other distributed-audio components. Browse the full Sonance commercial audio collection for matching amplifiers and speakers. For smaller multi-room commercial spaces that need centralized, zone-by-zone audio control, the SS4VC is a compact and dependable distribution hub.
Key Features
- Four Speaker-Pair Zones — Routes one amplifier or receiver to as many as four independent speaker pairs.
- 12-Position Volume Controls — Soft-touch rotary knobs set independent levels for each zone.
- Independent On/Off Switches — Each zone can be turned on or off individually to conserve amplifier headroom.
- Low-Impedance Protection Circuit — Slide switch reduces the risk of damaging the unit or connected speakers.
- 75W / 120W Power Handling — 75W per channel with protection engaged, 120W per channel without.
- 20Hz–20kHz Frequency Response — Accurate reproduction across the full audible range at 8 ohms.
- Quick-Connect Rear Terminals — Accept speaker wire up to 14 gauge for fast, clean installation.
- 1U Rack-Mountable — Installs in a single rack space with included rack ears.
Typical Applications
- Multi-zone commercial facilities
- Conference rooms and huddle rooms
- Multi-purpose rooms
- Commercial meeting spaces
- House of worship
Technical Specifications
| Model | SS4VC |
| Type | Stereo speaker selector with volume controls |
| Zones | 4 speaker pairs |
| Volume Control | 12-position rotary, per zone |
| Power Handling | 75W with protection / 120W without (per channel) |
| Frequency Response | 20Hz – 20kHz |
| Impedance | 8 ohms |
| Wire Gauge | Up to 14 gauge |
| Protection | Low-impedance protection circuit with slide switch |
| Mounting | 1U rack-mountable (rack ears included) |
Frequently Asked Questions
How many speaker pairs can the SS4VC drive?
Up to four independent speaker pairs from a single amplifier or receiver.
Can I set different volumes for each room?
Yes. Each zone has its own 12-position rotary volume knob for independent level control.
What wire gauge do the rear connectors accept?
The quick-connect rear terminals accept speaker wire up to 14 gauge.
Does it fit in a standard equipment rack?
Yes. It is 1U rack-mountable and ships with rack ears included.
What impedance does it support?
The SS4VC is rated for 8 ohms per zone and includes a low-impedance protection circuit.
