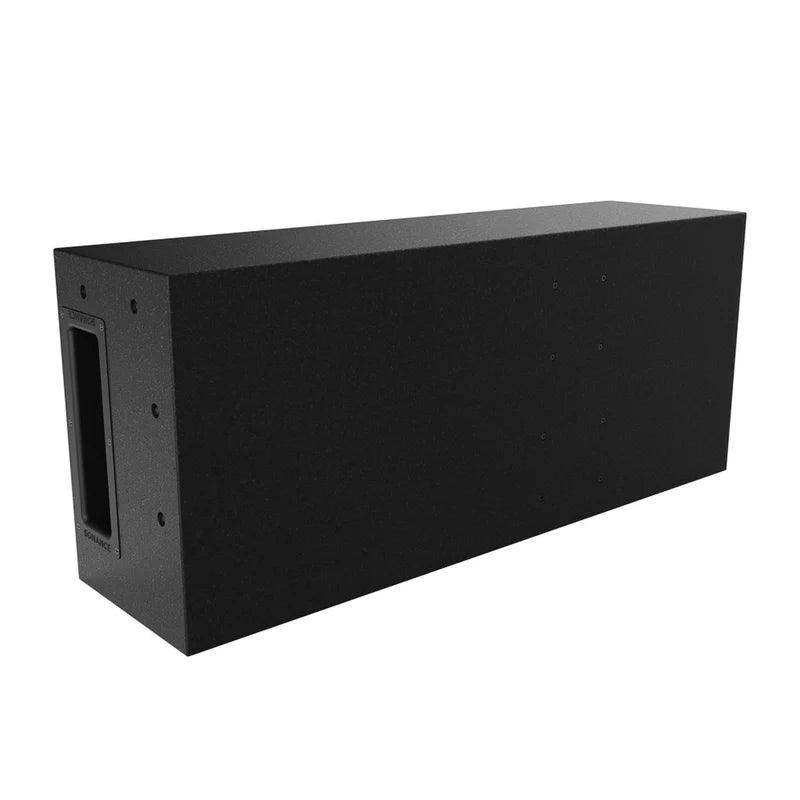

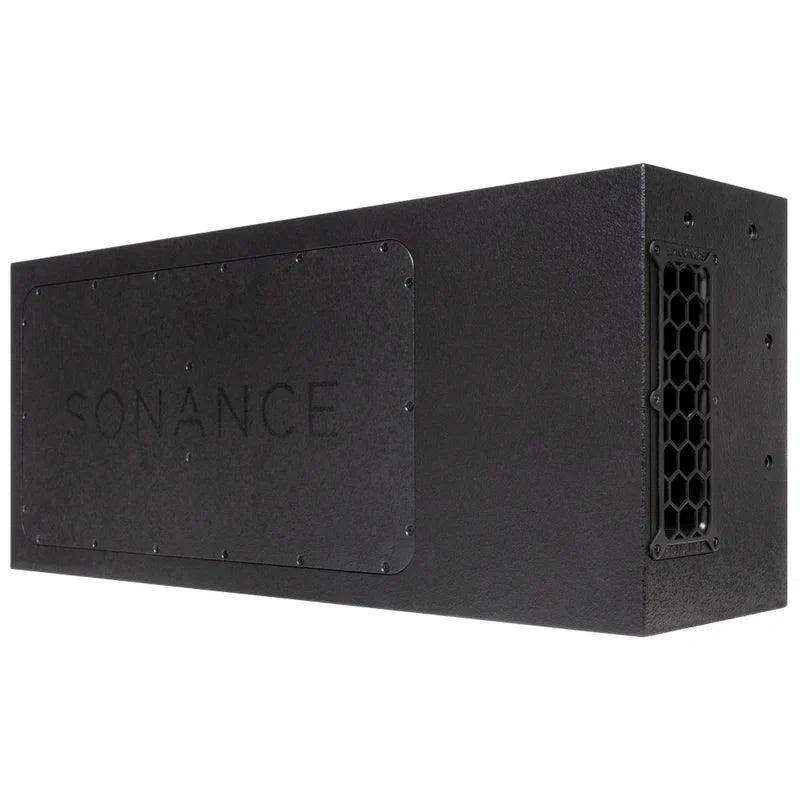

Sonance Pro Series PS-S210SUBT Subwoofer

Product Overview

The Sonance Pro Series PS-S210SUBT is a commercial bandpass subwoofer built to add high-output low frequency to 70V and 100V distributed audio systems. Its dual 10 inch drivers and line-matching transformer make it a direct fit for large commercial meeting spaces, auditoriums, and houses of worship that run constant-voltage speaker lines. The rugged, internally braced enclosure is engineered for permanent installation and high duty cycles. For integrators specifying a commercial-grade subwoofer, the PS-S210SUBT delivers the impact that full-range distributed speakers cannot produce on their own.

Product Description

The PS-S210SUBT is a Professional Series subwoofer designed around a compact bandpass enclosure that houses two 10 inch woofers. The bandpass design tunes driver output to a controlled passband, producing high acoustic output and a rated 121dB SPL with 127dB peak from a cabinet that hides under bench seating or surface-mounts on a wall. An onboard line-matching transformer supports both 70V and 100V distributed audio systems, with selectable power taps of 300W, 150W, and 75W on 70V plus an 8 ohm bypass for low-impedance applications. An integrated low-pass filter sets the crossover point without requiring an external processor, simplifying the signal chain for the integrator. The enclosure is constructed of rigid, internally braced multi-laminate hardwood finished in a ruggedized poly coating to withstand demanding commercial environments. Mounting options include concealment under bench seating, surface mounting with the optional C-bracket, or suspension from the integrated M10 fly points, giving installers flexibility across room types. This subwoofer pairs with Sonance pendant, surface, and in-ceiling speakers to complete a full-range distributed system, and compatible models are listed in the Sonance commercial audio collection. With 300 watts of continuous power handling and 500 watts program, it is specified for spaces where reliable low-frequency reinforcement runs for extended periods. The result is a commercial subwoofer that integrates into constant-voltage systems without compromising output or durability.

Key Features

• Dual 10 Inch Bandpass Design — Two 10 inch woofers in a tuned bandpass enclosure produce high acoustic output from a compact, concealable cabinet.
• 70V and 100V Operation — The onboard line-matching transformer connects directly to 70V or 100V distributed audio systems used in commercial installations.
• Selectable Power Taps — Power taps of 300W, 150W, and 75W on 70V, plus an 8 ohm bypass, let integrators match output to the system design.
• Integrated Low-Pass Filter — The built-in low-pass filter sets the subwoofer crossover without an external processor, simplifying the signal chain.
• High Output Performance — The subwoofer is rated at 121dB SPL with 127dB peak across its 44Hz to 132Hz passband.
• Rugged Braced Enclosure — The internally braced multi-laminate hardwood cabinet with ruggedized poly finish is built for permanent commercial installation.
• Flexible Mounting — The unit hides under bench seating, surface-mounts with the optional C-bracket, or suspends from integrated M10 fly points.

Typical Applications

• Auditorium
• House of worship
• Commercial meeting space
• Multi-purpose room
• Conference room
• Government space

Technical Specifications

Frequently Asked Questions

Does the PS-S210SUBT work on 70V and 100V systems?
Yes. The onboard line-matching transformer connects directly to both 70V and 100V distributed audio systems, with selectable power taps for system design.

Can it run on a low-impedance amplifier instead?
Yes. The transformer includes an 8 ohm bypass, allowing the subwoofer to be driven directly from a standard low-impedance amplifier channel.

Do I need an external crossover?
No. An integrated low-pass filter sets the subwoofer crossover point, so an external processor is not required for basic operation.

How is it mounted?
It can be concealed under bench seating, surface-mounted with the optional C-bracket, or suspended from the integrated M10 fly points.

Is it suitable for continuous commercial use?
Yes. With 300 watts continuous power handling and a braced multi-laminate hardwood enclosure, it is built for permanent installation in high-duty commercial environments.
