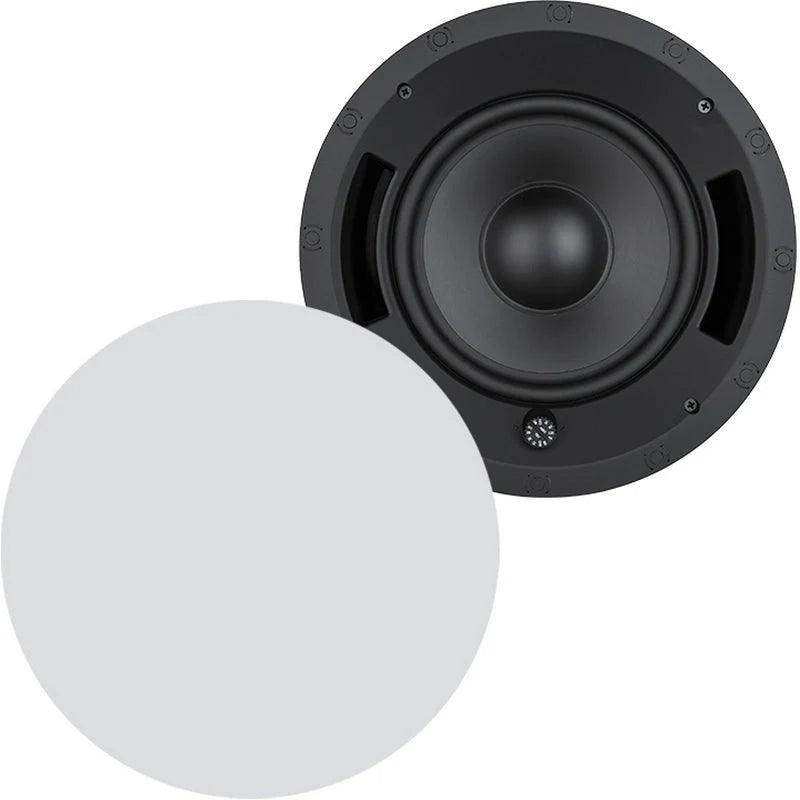

Sonance Pro Series PS-C83RWT 8" In-Ceiling Woofer (Each) - White

Product Overview

The Sonance Professional Series PS-C83RWT is an 8" in-ceiling woofer engineered to add low-frequency reinforcement to distributed ceiling audio systems in commercial environments. Its ultra-high-excursion polypropylene cone delivers impactful low bass extension at any sound pressure level, partnering with full-range in-ceiling models such as the PS-C43RT and PS-C63RT. A full-fidelity transformer supports 70V, 100V, and 8 Ohm operation from a single unit. The bezel-less, magnetically secured grille keeps the visual footprint minimal across finished ceilings.

Product Description

Specified for boardrooms, training rooms, and house of worship installations, the PS-C83RWT extends the bottom end of a ceiling loudspeaker array without adding visual clutter. The one-piece bezel-less grille is held in place magnetically and supports a one-step painting process, allowing integrators to match it to any ceiling color while reducing on-site labor. An optional Square Grille Adapter lets the woofer align with square downlights and HVAC grilles for a continuous sightline across the ceiling plane. The 8" ultra-high-excursion polypropylene cone is matched with a heavy-duty voice coil for sustained output and reliable performance under demanding duty cycles. A full-fidelity transformer delivers consistent tonality whether the unit is wired for high-impedance 70V/100V distribution or low-impedance 8 Ohm operation, with a finger-adjustable selector tap for setting the power level on site. The sealed metal enclosure, integrated cable and conduit clamping, removable Euroblock connector with loop-through, swing-open connector cover, and seismic attachment streamline code-compliant commercial installs. The PS-C83RWT is certified to UL 1480 and UL 2043 for use in plenum-rated spaces. Consistent voicing across the Professional Series allows this woofer to integrate cleanly with matching full-range models in the Sonance commercial audio collection. Its compact form factor suits installations where plenum depth and ceiling space are limited.

Key Features

• 8" Ultra-High-Excursion Woofer — Polypropylene cone delivers impactful low bass extension and augmentation at any sound pressure level.
• 70V / 100V / 8 Ohm Operation — Full-fidelity transformer supports high- and low-impedance systems from a single unit.
• Finger-Adjustable Tap — Power-level selector tap can be set by hand during installation.
• Bezel-Less Magnetic Grille — One-piece grille is magnetically secured for a clean, low-profile ceiling appearance.
• One-Step Paintable Grille — Simplified painting process lets the grille match any ceiling finish.
• Sealed Metal Enclosure — Integrated cable and conduit clamping with seismic attachment for code-compliant installs.
• Euroblock With Loop-Through — Removable connector and swing-open cover speed multi-unit wiring.
• UL 1480 and UL 2043 Certified — Rated for use in plenum air-handling spaces.

Typical Applications

The PS-C83RWT is suited to boardrooms, conference rooms, training rooms, multi-purpose rooms, house of worship sanctuaries, and other commercial meeting spaces where a ceiling audio system needs added low-frequency reinforcement. It pairs with full-range in-ceiling speakers to extend bass in auditoriums and large all-hands rooms.

Technical Specifications

Frequently Asked Questions

What full-range speakers does the PS-C83RWT pair with?
It is designed as a low-frequency partner for the Sonance PS-C43RT and PS-C63RT in-ceiling speakers and integrates with other Professional Series models that share consistent voicing.

Can it run on a 70V/100V line and on 8 Ohm?
Yes. Its full-fidelity transformer supports 70V, 100V, and 8 Ohm operation, with a finger-adjustable tap to set the power level during installation.

Is it suitable for plenum spaces?
Yes. The woofer is certified to UL 1480 and UL 2043 for use in air-handling plenum environments.

Does it require additional enclosure construction?
No. It ships with a sealed metal enclosure, integrated cable and conduit clamping, and seismic attachment for direct ceiling installation.

Is it sold individually?
Yes. This listing is for one PS-C83RWT woofer (Each) in White. For specification confirmation or system design support, contact Creation Networks.
