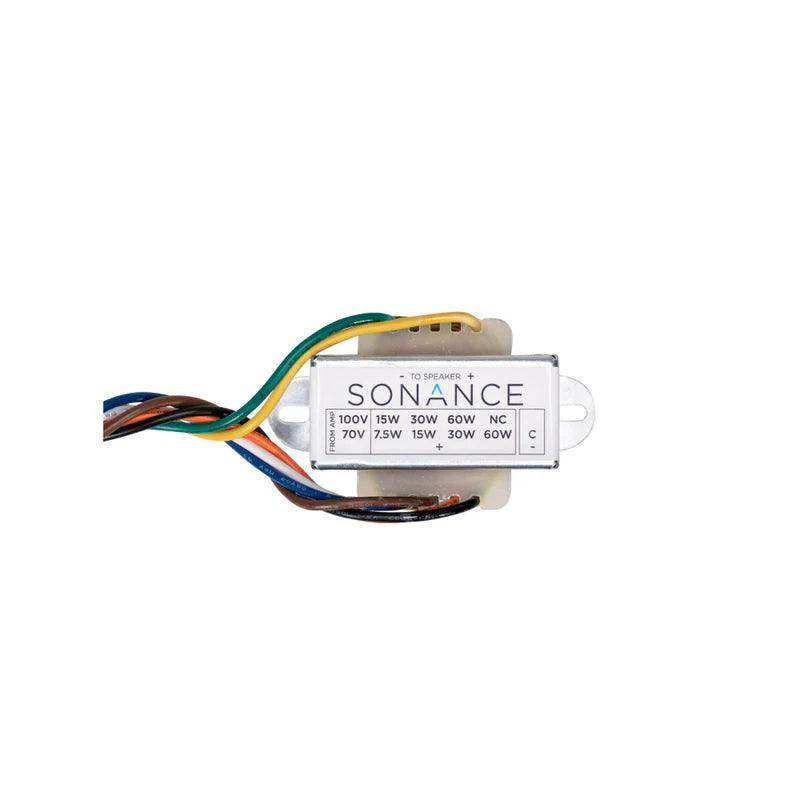

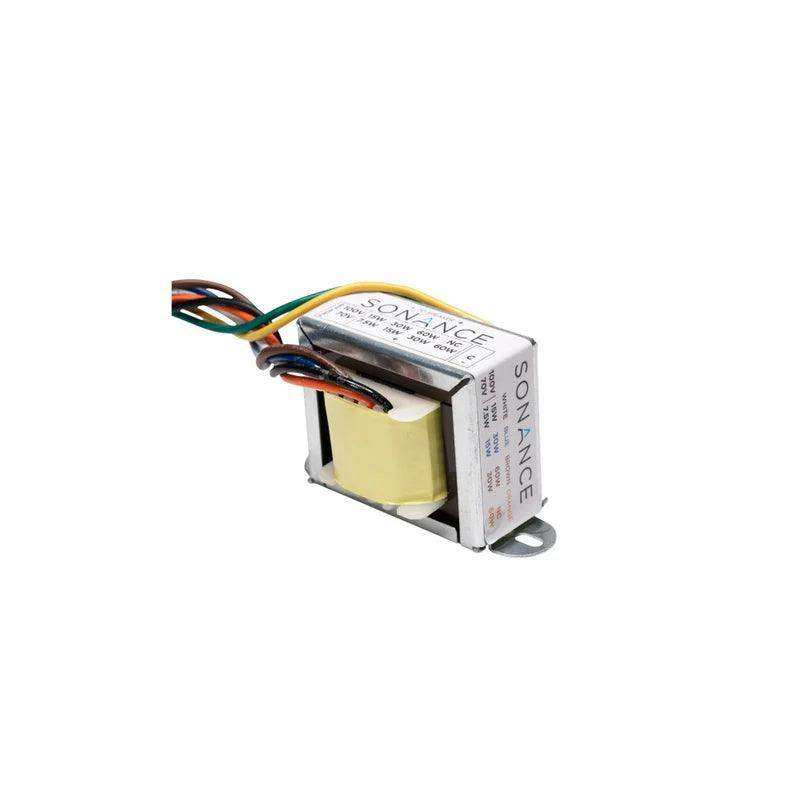

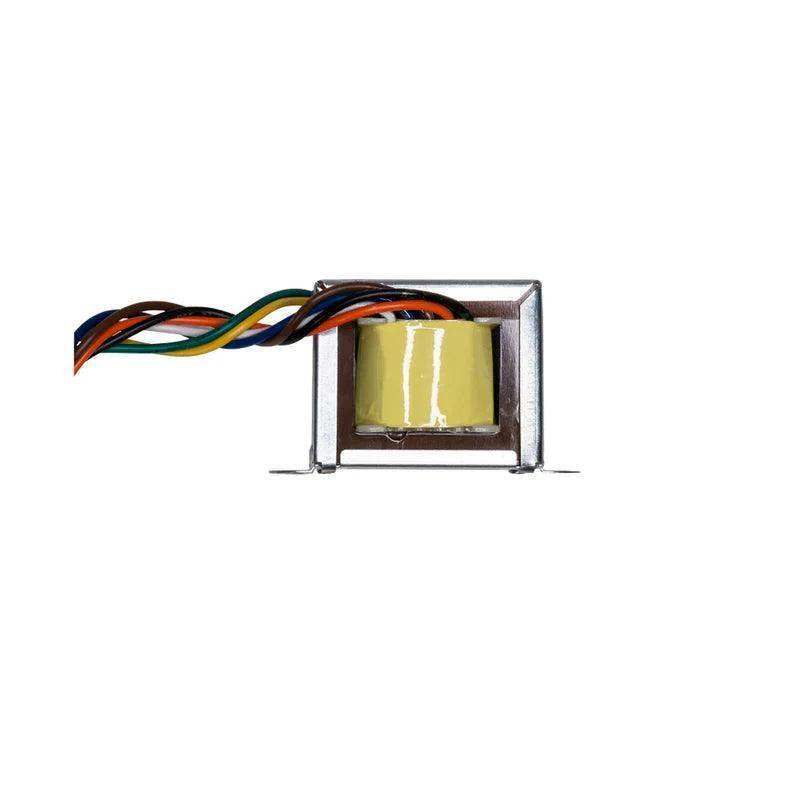

Sonance Pro Series PS-60XF Transformer for 70/100V Systems
Product Overview
The Sonance PS-60XF transformer adapts Sonance 8-ohm loudspeakers for use on 70V and 100V constant-voltage distribution lines. It is intended for commercial installations where multiple speakers run from a single 70V or 100V amplifier across a long cable run. The transformer mounts inside speaker enclosures or junction points and selects power per zone with switchable taps. It is a core component for restaurant, retail, and multi-room paging or background-music systems.
Product Description
The Sonance PS-60XF 70V/100V transformer uses a Sonance Laminated Core Transformer (SLCT) design for full-fidelity reproduction across the audio band. It handles up to 60 watts and offers multiple tap settings, letting installers set output to match each speaker's role in the system. Tap options are 60W, 30W, 15W, and 7.5W, with the 7.5W tap available on 70V systems only. Wiring is clearly labeled and color-coded so installers can connect taps quickly and consistently across a large speaker count. Mounting tabs accept screws or zip-ties, supporting fixed installation in tight or weatherproof enclosures. The compact form factor fits inside small speaker backboxes and outdoor housings without crowding the connections. The transformer is compatible with Sonance 8-ohm loudspeakers, making it a direct match for distributed-audio designs built on the Sonance platform. Browse the full Sonance commercial audio collection for compatible speakers and system components.
Key Features
- 70V and 100V Support — The transformer adapts 8-ohm speakers to both 70V and 100V constant-voltage distribution systems.
- 60W Power Handling — It handles up to 60 watts for use across a range of speaker configurations.
- Multiple Tap Settings — Selectable 60W, 30W, 15W, and 7.5W taps set per-speaker output, with the 7.5W tap on 70V only.
- SLCT Core — The Sonance Laminated Core Transformer design supports full-fidelity audio reproduction.
- Labeled Color-Coded Wiring — Clearly marked leads speed installation and reduce wiring errors.
- Flexible Mounting — Tabs accept screws or zip-ties for fixed installation in enclosures.
- Compact Form Factor — The small size fits inside weatherproof and back-box enclosures.
- 8-Ohm Speaker Compatibility — The transformer is matched to Sonance 8-ohm loudspeakers.
Technical Specifications
| System Compatibility | 70V and 100V constant-voltage systems |
| Power Handling | Up to 60 watts |
| Tap Settings | 60W, 30W, 15W, 7.5W (7.5W on 70V only) |
| Transformer Type | Sonance Laminated Core Transformer (SLCT) |
| Speaker Compatibility | Sonance 8-ohm loudspeakers |
| Mounting | Tabs for screws or zip-ties |
| Wiring | Labeled and color-coded |
| Brand | Sonance |
