Sonance PS-C85RTBF – 8-Inch Pro Series In-Ceiling Baffle Speaker
Product Overview
The Sonance PS-C85RTBF is the baffle-only version of the Pro Series High Output 8-inch in-ceiling speaker, designed to install into a separately purchased back box for new-construction commercial projects. It delivers the same coaxial 8-inch woofer and 1.4-inch compression driver performance as the standard PS-C85RT in a format built for plenum-isolated back-box mounting.
Product Description
As part of the Sonance Pro Series High Output lineup, the PS-C85RTBF (Black, RAL 7021) pairs an 8-inch aluminum cone woofer, Santoprene surround, with a 1.4-inch aluminum dome compression driver for extended low-frequency output and high SPL in commercial spaces. Because it is a baffle-only loudspeaker, it must be installed with the matching PS-C85BB back box, giving specifying engineers control over enclosure volume and plenum separation on larger jobs. Field-selectable 120-degree or 80-degree dispersion lets one SKU serve open floor plans and narrower, high-ceiling throws alike, and the integrated distributed-audio transformer switches between 70V/100V taps (120W, 60W, 30W) or a 70V 15W tap for lower-output zones. The PC/ABS enclosure, steel grille, and powder-coated finish are rated UL 1480A, UL 2043, and NFPA 90A/70 compliant for above-ceiling plenum installation. Integrators sourcing the PS-C85RTBF for a new build can review the broader Sonance in-ceiling speakers lineup to plan matching back boxes, tile bridges, and grille finishes in the same order.
Key Features
- Baffle-Only Design — Installs into the separate PS-C85BB back box for controlled enclosure volume in new construction.
- 8-Inch Coaxial Driver — 1.4-inch aluminum dome compression driver paired with an 8-inch aluminum cone woofer, Santoprene surround.

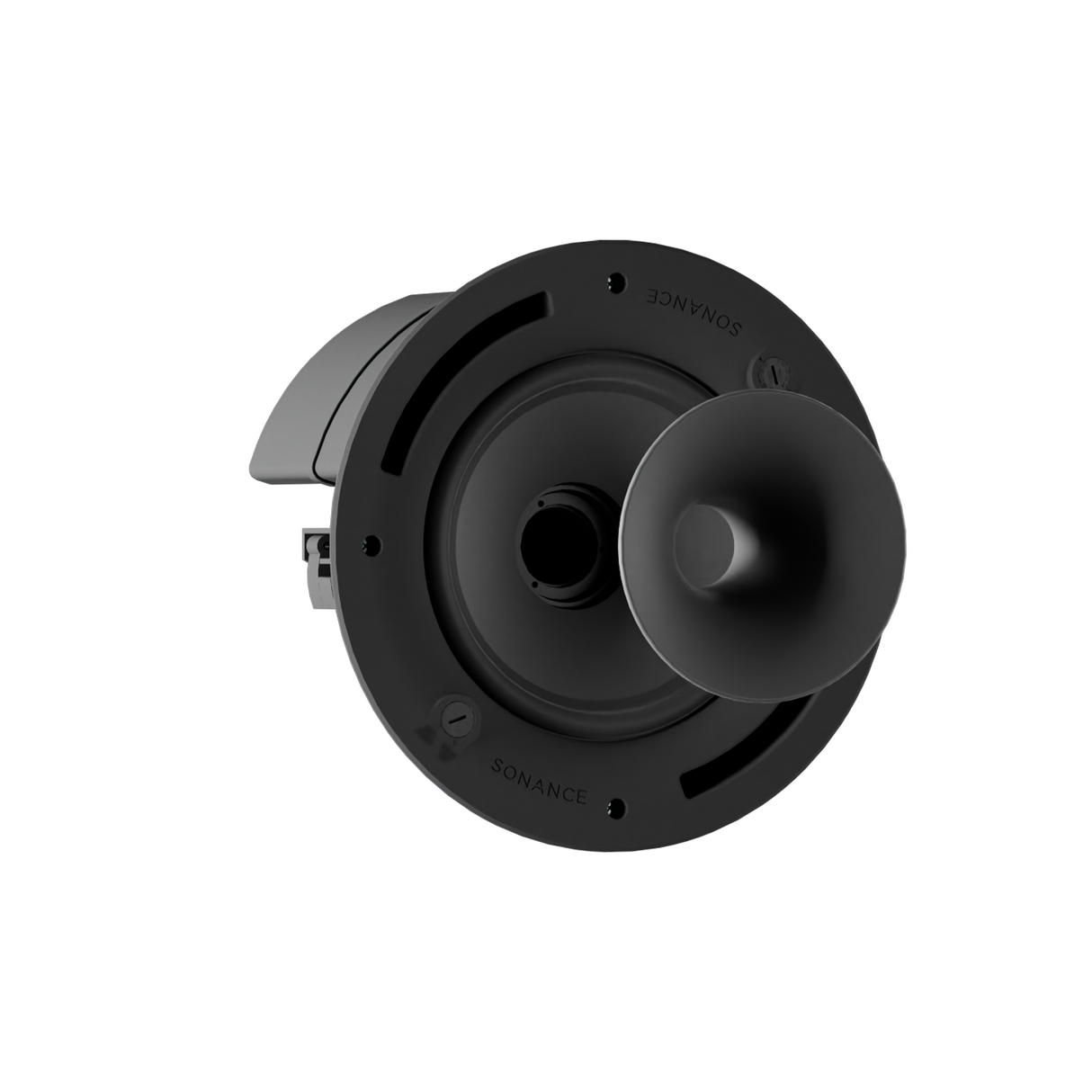

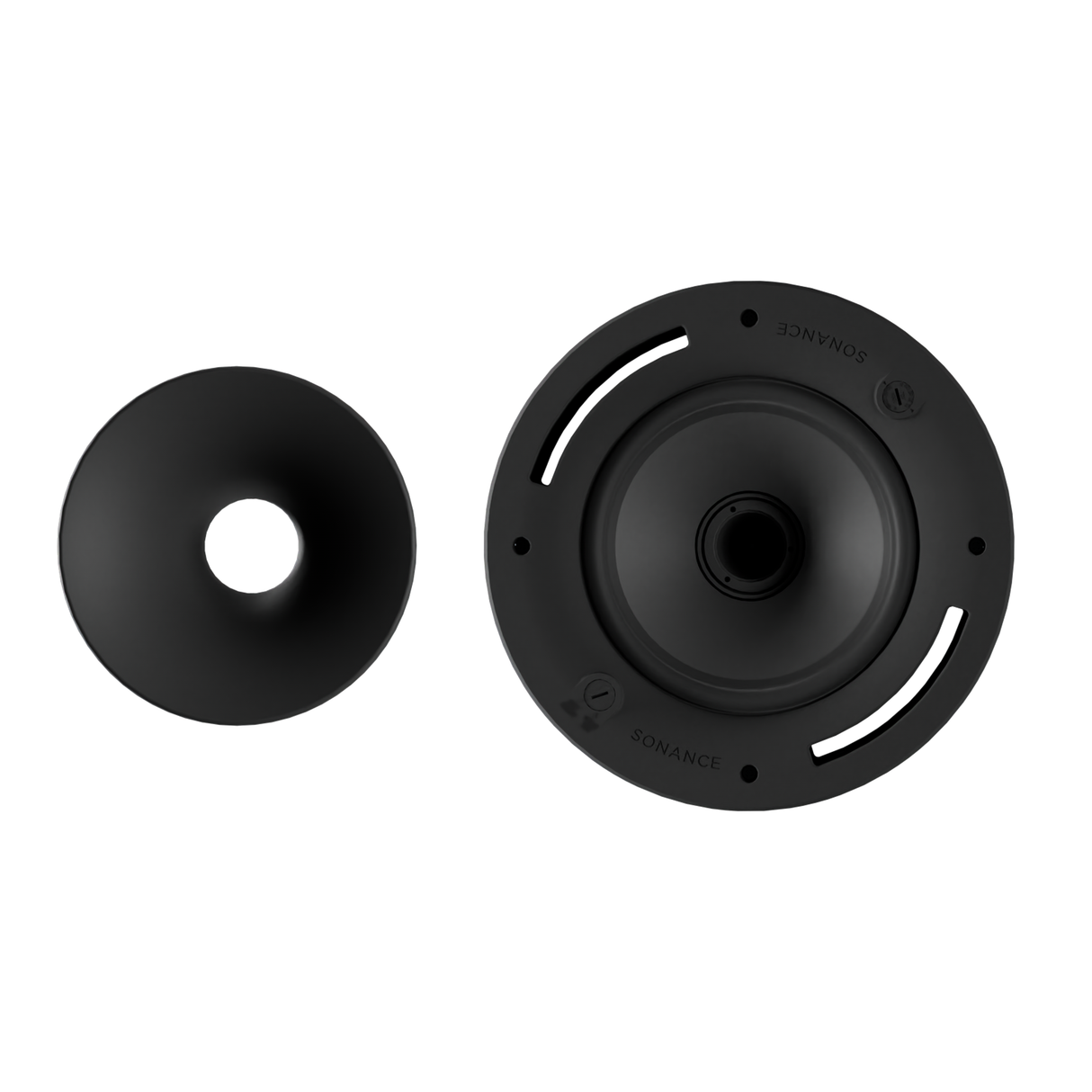

- Field-Selectable Dispersion — 120-degree or 80-degree coverage pattern set on site to match room layout.
- 150W RMS Power Handling — 150 watts RMS / 600 watts peak, up to 114dB SPL (120dB peak).
- Integrated 70V/100V Transformer — Distributed audio taps at 120W, 60W, 30W (70V/100V) and 15W (70V).
- Plenum-Rated Materials — UL 1480A, UL 2043 listed enclosure with NFPA 90A and NFPA 70 compliance.
Typical Applications
- Restaurants and bars
- Retail stores
- Corporate offices
- Houses of worship
- New-construction commercial ceilings
Technical Specifications
| High-Frequency Driver | 1.4" (36mm) aluminum dome compression driver, 1" exit |
| Low-Frequency Driver | 8" (203mm) aluminum cone, Santoprene surround |
| Power Handling | 150W RMS / 600W peak |
| Nominal Impedance | 8 ohms |
| Sensitivity | 91dB SPL |
| Maximum SPL | 114dB / 120dB peak |
| Frequency Response | 41.4Hz – 20kHz (±3dB); 36.6Hz – 25kHz (±10dB) |
| Baffle Dimensions | 11.07" diameter × 7.22" deep |
| Cut-Out Diameter | 10.125" |
| Weight | 18.7 lbs |
| Transformer Taps | 70V/100V: 120W, 60W, 30W; 70V: 15W |
| Enclosure | PC/ABS (UL94V-0), powder-coated steel grille |
| Certifications | UL 1480A, UL 2043, NFPA 90A, NFPA 70 |
| Color | Black (RAL 7021) |
Frequently Asked Questions
Does the PS-C85RTBF include a back box?
No. The PS-C85RTBF is a baffle-only speaker and must be paired with the separately sold PS-C85BB back box.
What is the cut-out size for the PS-C85RTBF?
The recommended ceiling cut-out diameter is 10.125 inches.
What power handling does the PS-C85RTBF have?
It is rated for 150 watts RMS with 600 watts peak power handling at 8 ohms.
Can the PS-C85RTBF be used on a 70V distributed line?
Yes, its integrated transformer offers 70V/100V taps at 120W, 60W, and 30W, plus a 70V 15W tap.
Is the PS-C85RTBF suitable for plenum ceilings?
Yes, it is UL 1480A and UL 2043 listed and complies with NFPA 90A and NFPA 70 for plenum installation.
