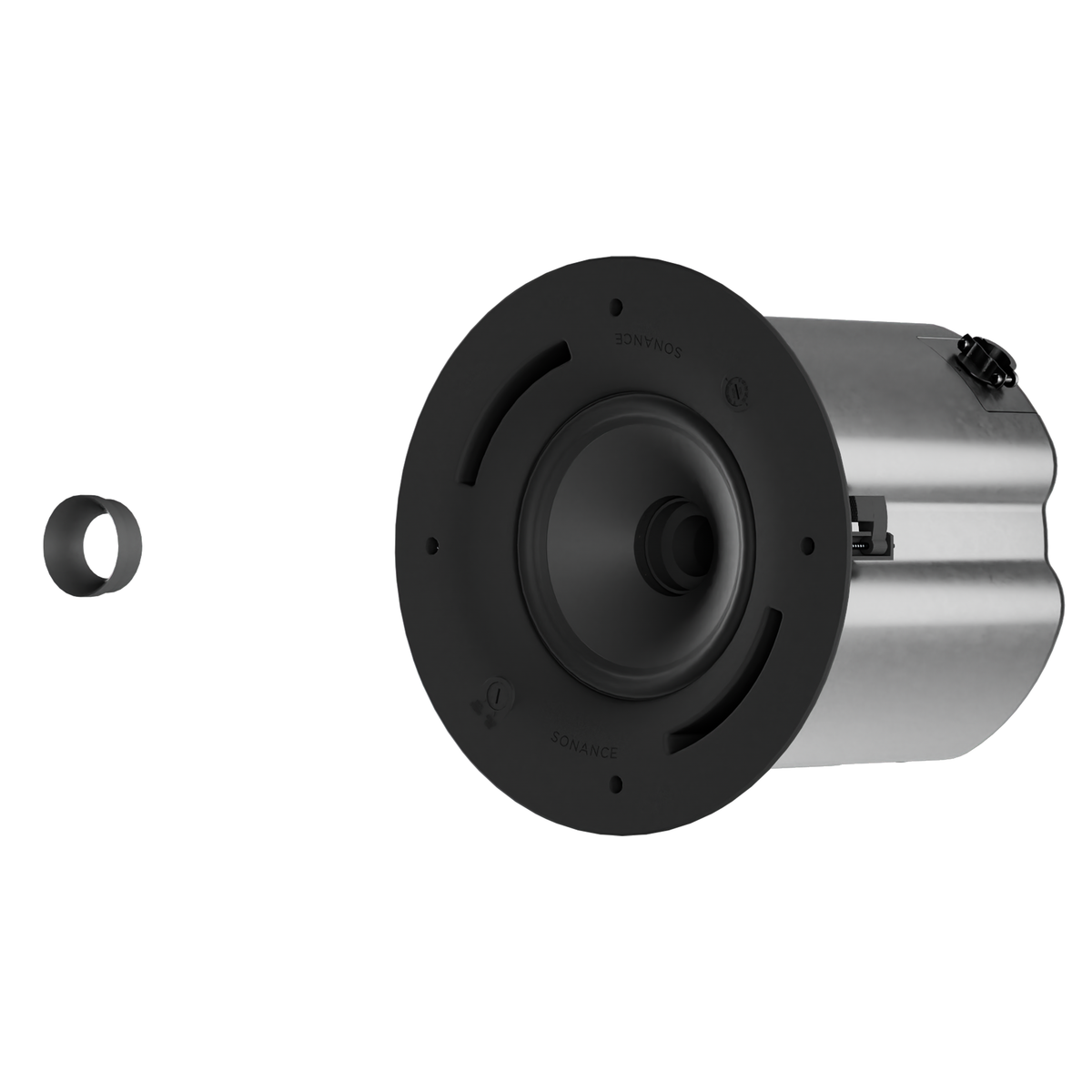

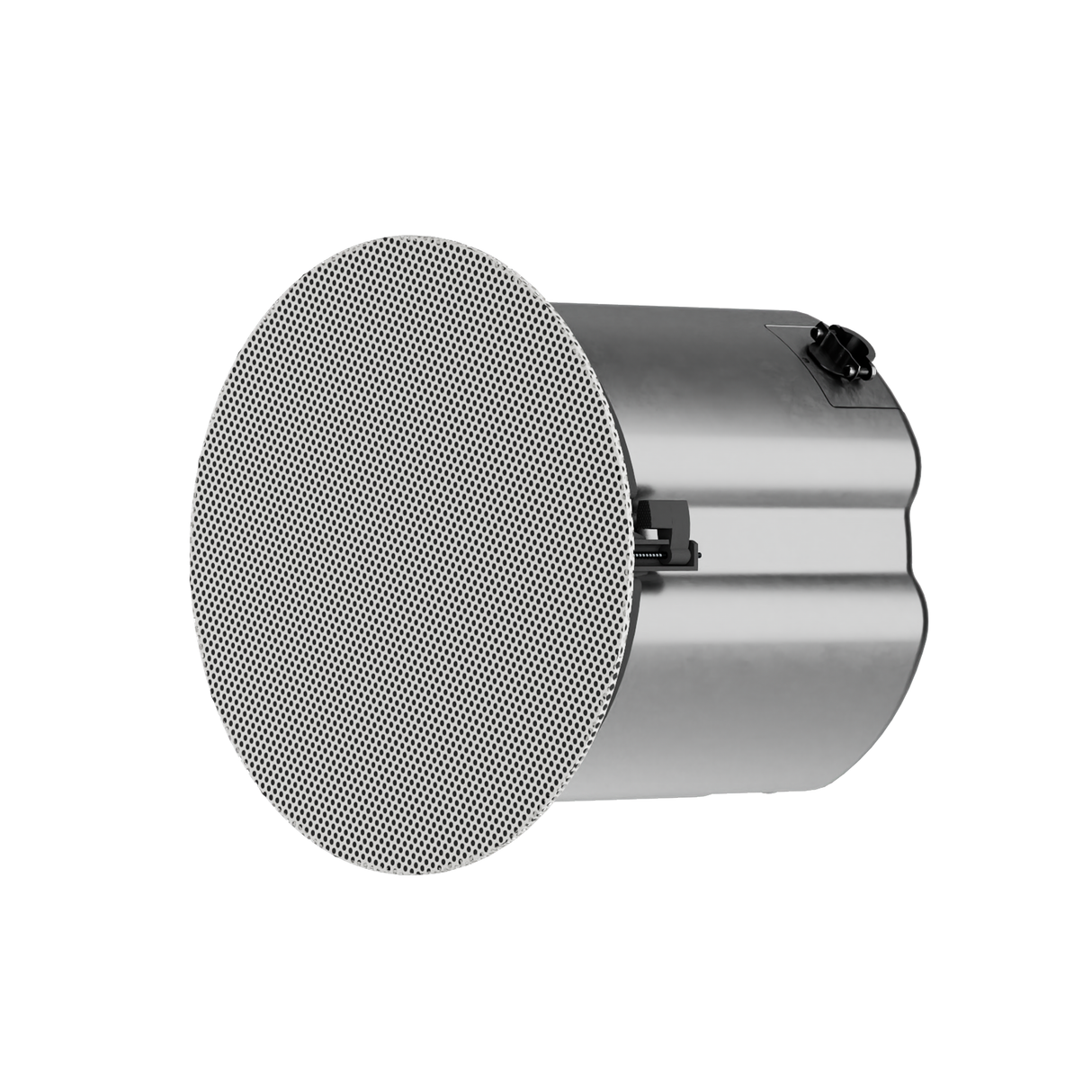

Sonance PS-C85RT – 8-Inch Pro Series High-Output In-Ceiling Speaker

Product Overview

The Sonance PS-C85RT is an 8-inch high-output in-ceiling loudspeaker built for commercial sound reinforcement where extended low frequency and consistent SPL matter. It pairs an 8-inch aluminum cone woofer with a 1.4-inch neodymium compression driver on a field-selectable horn, giving integrators one enclosure that covers background and foreground music duty in demanding spaces.

Product Description

Part of the Sonance Pro Series High Output family, the PS-C85RT (Black, RAL 7021) is engineered for restaurants, retail floors, and houses of worship that need more headroom than a standard in-ceiling speaker can deliver. The coaxial driver arrangement keeps vocal clarity and bass output aligned from a single low-profile enclosure, so contractors can cover larger rooms with fewer drops. A field-selectable 120-degree or 80-degree dispersion pattern lets the same speaker adapt to open-plan ceilings or narrower, high-ceiling throws without swapping hardware. An integrated 70V/100V transformer with 120W, 60W, and 30W taps (plus a 70V 15W tap) makes the PS-C85RT equally at home on a distributed 70V/100V line or wired at 8 ohms for a dedicated amplifier zone. The steel grille and PC/ABS, powder-coated enclosure are built to hold up under daily commercial use, and the speaker carries UL 1480A, UL 2043, NFPA 90A, and NFPA 70 listings for plenum-rated installations. For integrators comparing options, browsing in-ceiling speakers alongside the PS-C85RT helps confirm it is the right fit before ordering matching grilles, back boxes, or mounting brackets.

Key Features

• 8-Inch Coaxial Driver Array — 1.4-inch neodymium compression driver mounted coaxially with an 8-inch aluminum cone woofer for high-SPL, full-range output.

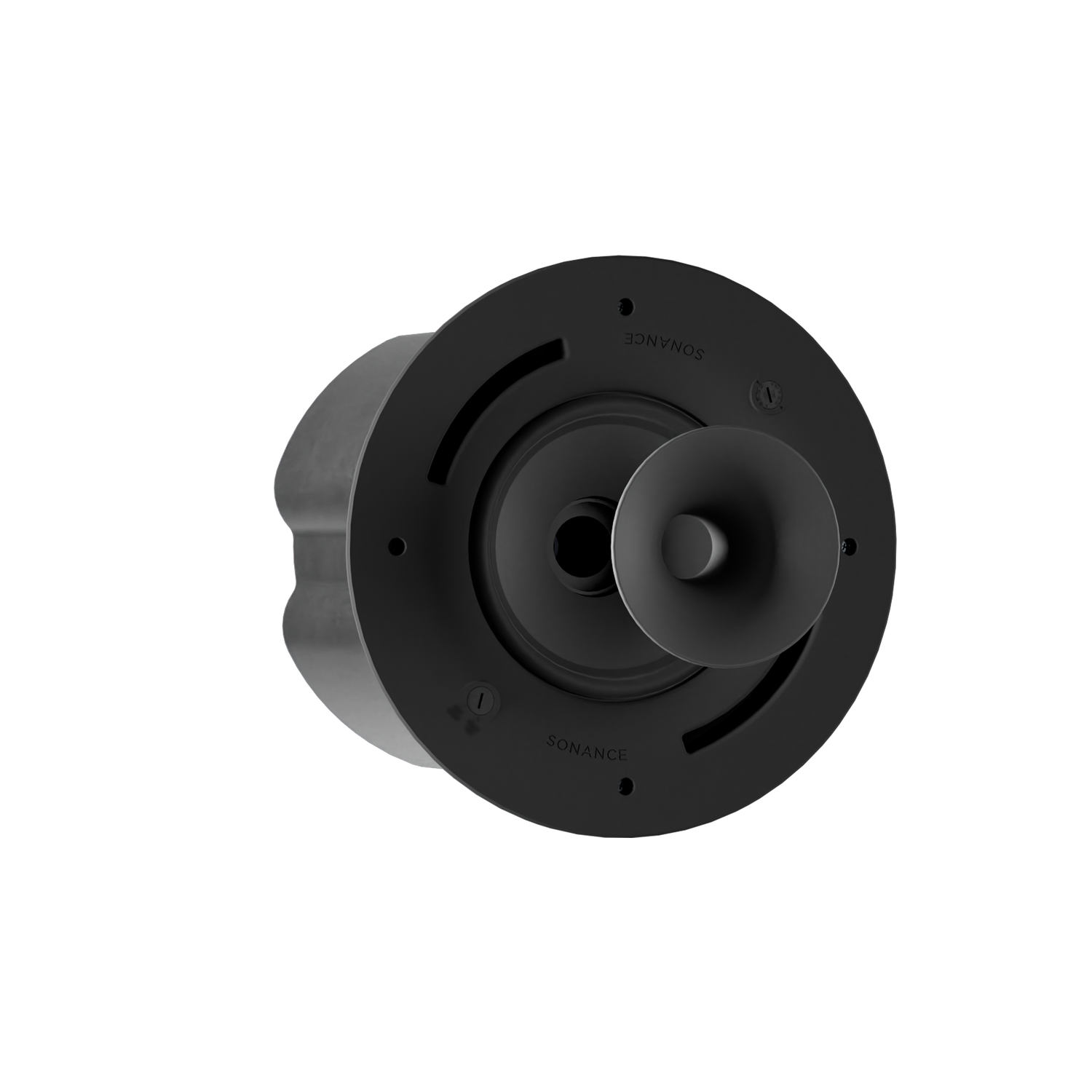

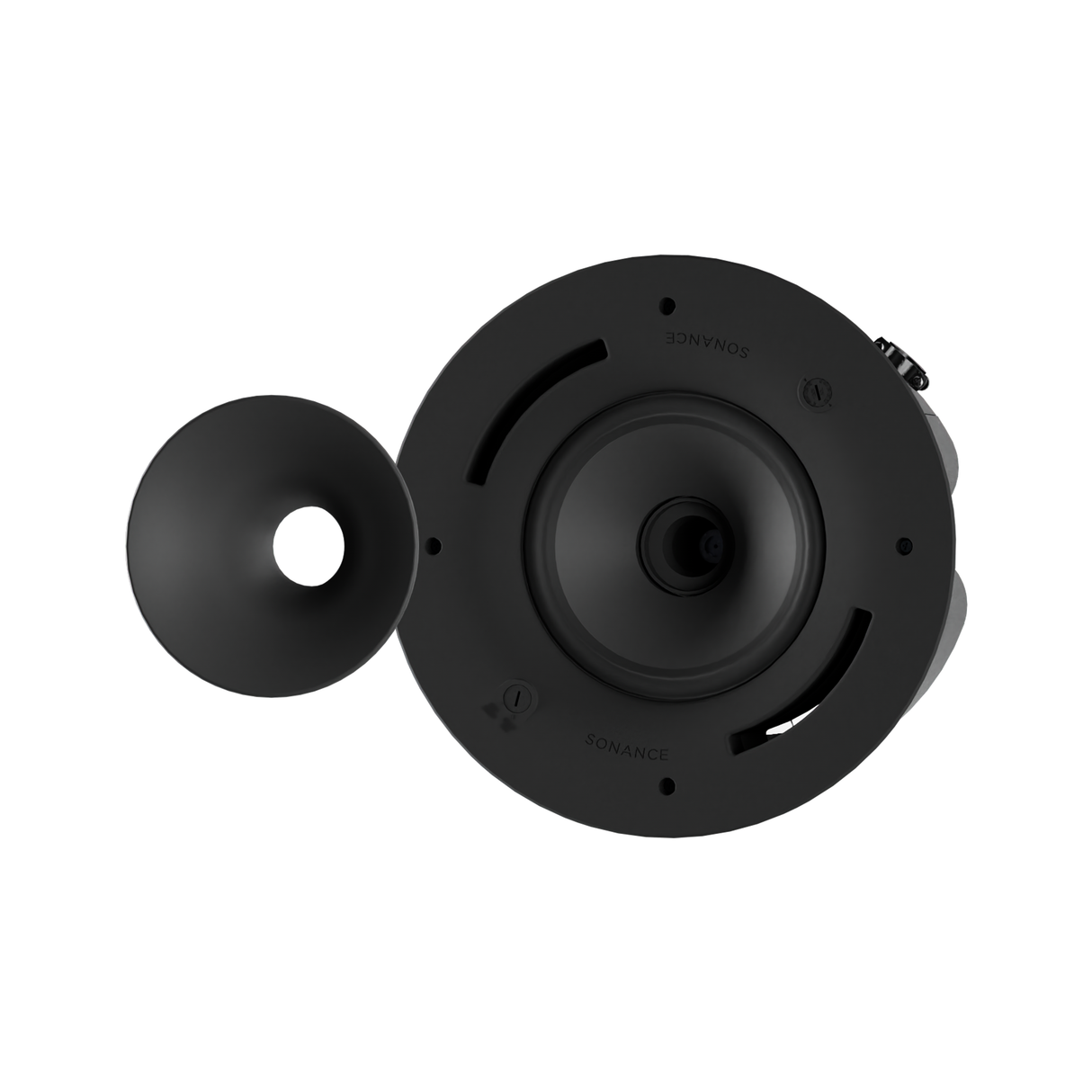

• Field-Selectable Dispersion — Switch between 120-degree and 80-degree coverage patterns on site to match room geometry.
• Integrated 70V/100V Transformer — Built-in transformer with 120W, 60W, and 30W taps (plus 70V 15W) simplifies distributed audio wiring.
• 150W RMS Power Handling — Rated for 150 watts RMS and 600 watts peak, delivering up to 112dB SPL (118dB peak) continuous output.
• Plenum-Rated Construction — UL 1480A and UL 2043 listed with NFPA 90A/70 compliance for above-ceiling commercial installations.
• Four-Pin Euroblock Connector — Loop-output terminal block speeds daisy-chained wiring across multiple ceiling speakers.

Typical Applications

• Restaurants and bars
• Retail and big-box stores
• Houses of worship
• Fitness centers
• Corporate lobbies and open offices

Technical Specifications

Frequently Asked Questions

What is the power handling of the Sonance PS-C85RT?

The PS-C85RT is rated for 150 watts RMS with 600 watts peak power handling.

Can the PS-C85RT run on a 70V or 100V distributed audio line?

Yes. It has an integrated transformer with 70V/100V taps at 120W, 60W, and 30W, plus a 70V 15W tap.

Is the PS-C85RT rated for plenum ceiling installation?

Yes, it carries UL 1480A and UL 2043 listings along with NFPA 90A and NFPA 70 compliance for use in plenum air spaces.

What dispersion patterns does the PS-C85RT support?

The horn is field-selectable between 120-degree and 80-degree coverage to match different room layouts.

Does the PS-C85RT need a separate back box?

The PS-C85RT is the round-baffle version with its own trim; a related baffle-only variant (PS-C85RTBF) pairs with the PS-C85BB back box.

What grille and mounting accessories are available for the PS-C85RT?

Matching steel grilles, square adapter kits, C-brackets, and a flex bracket rough-in frame are sold separately for the PS-C85RT.
