Sonance PS-C63RT – 6.5-Inch Pro Series In-Ceiling Speaker

Product Overview

The Sonance PS-C63RT is a 6.5-inch Pro Series in-ceiling speaker built for commercial background and foreground music systems. It targets integrators outfitting retail floors, restaurants, and office common areas that need dependable coverage from a low-profile, paintable, bezel-less speaker. A pivoting high-frequency driver and 70V/100V transformer taps make it equally suited to 70V distributed audio or direct 8-ohm amplifier runs.

Product Description

The PS-C63RT pairs a 6.5-inch polypropylene woofer with a butyl rubber surround and a 1-inch pivoting, ferrofluid-cooled cloth dome tweeter, delivering a 65Hz-20kHz frequency range at 91dB sensitivity. Program power handling is rated at 120W with a peak SPL of 116dB, giving it enough headroom for lobbies, dining rooms, and open-plan offices without distortion. An included removable Euroblock connector and transformer-tapped 70V/100V input make it simple to wire into a distributed 70V system or run direct off an 8-ohm amplifier channel, and the speaker carries UL 1480, UL 2043, NFPA 90A, and NFPA 70 listings for plenum-rated commercial installs. The bezel-less design and magnetic grille retention keep the ceiling line clean, and seismic attachment points are built in for jobs that require secondary support. Browse the full Sonance lineup at Creation Networks for matching Pro Series 4-inch and 8-inch models, or check available in-ceiling speakers for companion zones. Because the PS-C63RT accepts the same PS-C63/P63 grille family, integrators can standardize trim across ceiling and pendant installs on the same job.

Key Features

• 120W Program Power — Rated for 120W program power with 116dB peak SPL for commercial-grade output.
• 70V/100V Transformer Taps — Switchable transformer taps support 70V or 100V distributed audio systems as well as direct 8-ohm wiring.
• Pivoting Tweeter — 1-inch ferrofluid-cooled cloth dome tweeter pivots for on-axis coverage in irregular ceiling layouts.
• Plenum-Rated Listings — UL 1480, UL 2043, NFPA 90A, and NFPA 70 listed for code-compliant commercial ceiling installs.

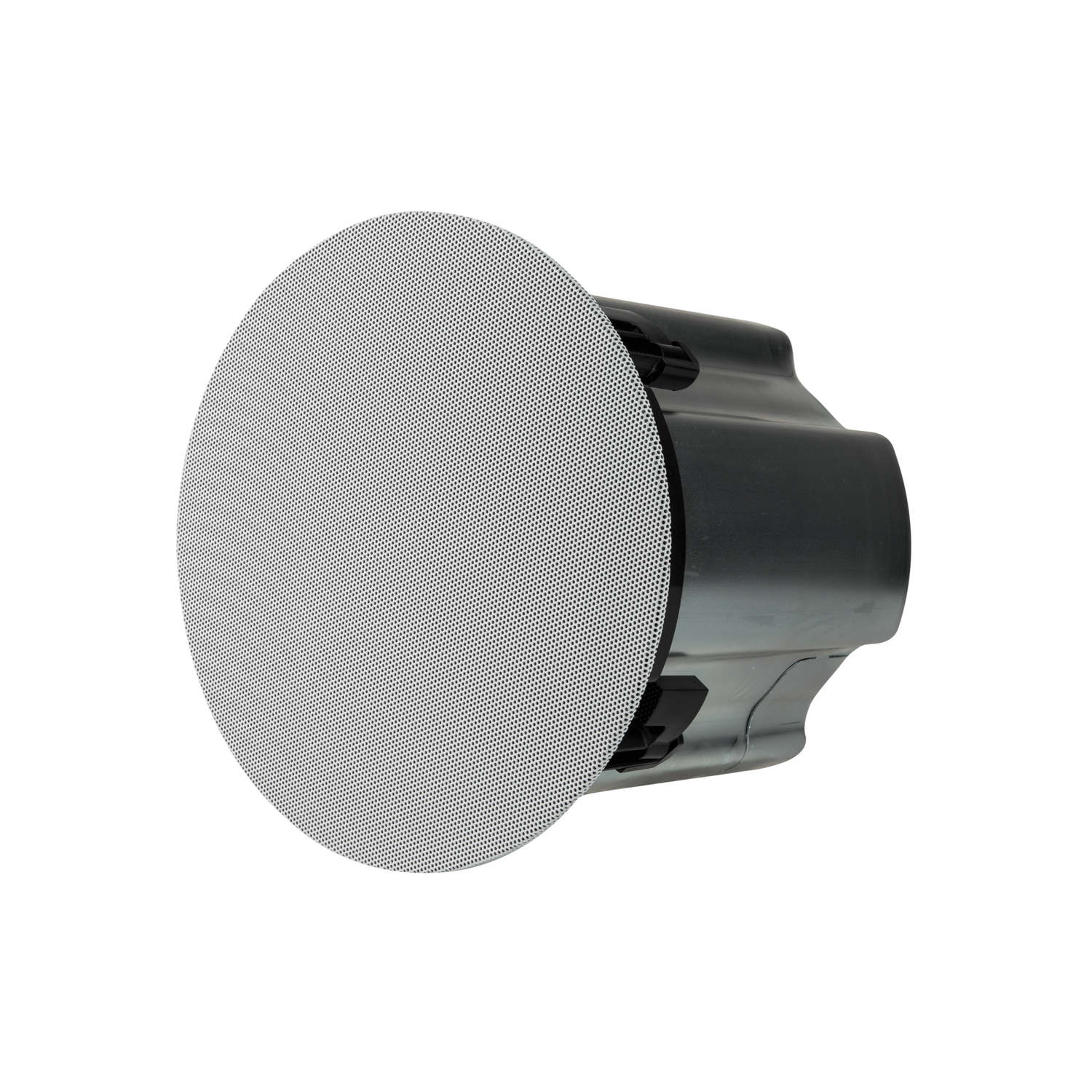

• Bezel-Less, Paintable Design — Magnetic grille retention and a paintable, bezel-less trim keep the finished ceiling clean.
• Removable Euroblock Connector — Included Euroblock terminal speeds wiring and simplifies future service.

Typical Applications

• Retail sales floors and showrooms
• Restaurants and hospitality dining areas
• Offices, lobbies, and conference rooms
• Houses of worship and community centers
