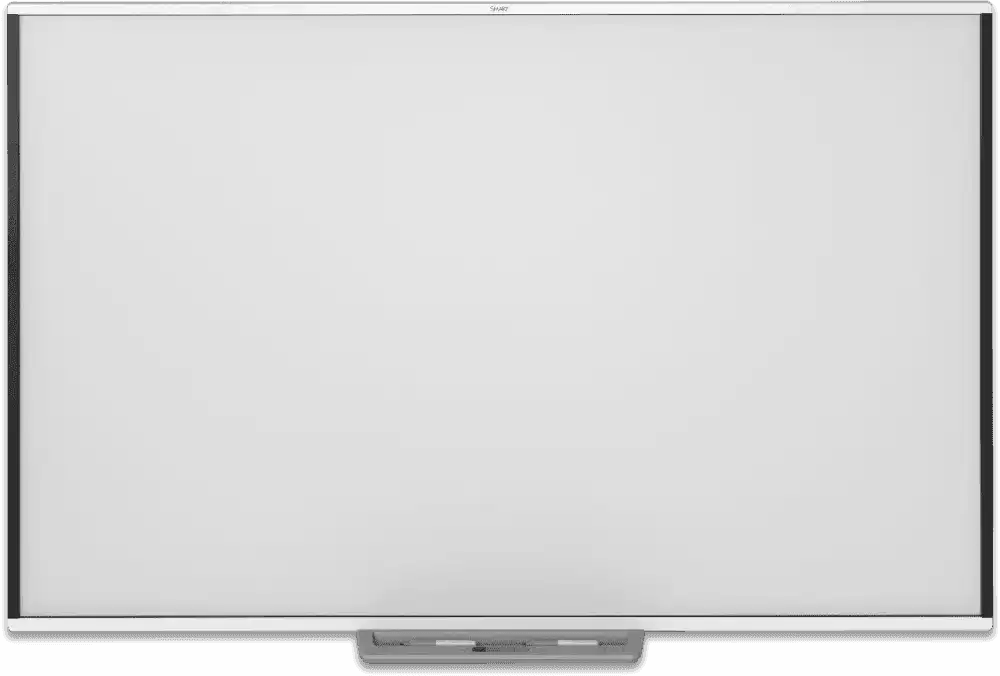

SMART M700 Series SMART Board M797 (16:10) 97" Interactive Whiteboard with an Active Pen Tray - SBM797

Product Overview

The SMART Board M797 is a 97" front-projection interactive whiteboard offering one of the largest available surface areas in the M700 series, designed for auditoriums, large lecture halls, and high-capacity training rooms where maximum visibility is the primary requirement. At 16:10 aspect ratio with an 82" × 51" projection area, the M797 accommodates both widescreen and legacy 4:3 projected content with minimal letterboxing. It connects to any Windows, Mac, or Linux computer via a single USB cable with no external power required. Advanced infrared touch technology with Object Awareness supports up to 20 simultaneous touches and differentiates between pen, finger, eraser, and palm.

Product Description

When a room's audience size or seating arrangement demands a surface larger than 87" or 94", the M797 provides the necessary scale while retaining the same reliable touch platform and software compatibility as the rest of the M700 series. The 97" diagonal at 16:10 gives a projection area of 82 1/4" × 51", which translates to over 14 square feet of interactive surface — suitable for annotation-heavy technical reviews, detailed diagram walkthroughs, and collaborative group exercises in large venues. The hard-coated steel surface is scratch- and dent-resistant, accepts dry-erase markers, and is optimized for standard projection without hotspot issues. USB 2.0 connection at 12 Mbps full-speed provides all touch data and power through a single 5-meter cable included in the box. The pen tray provides immediate access to color selection, highlighting, on-screen keyboard, right-click, and orientation functions. SMART Notebook and SMART Product Drivers are included to enable annotation across any application on the connected computer. For institutions standardizing on a large-format whiteboard across multiple rooms, the M797 integrates into any existing projector infrastructure without requiring display replacement.

Key Features

• 97" 16:10 Surface — 82 1/4" × 51" projection area for maximum visibility in large-group settings.
• Advanced IR with Object Awareness — Identifies pen, finger, eraser, and palm for accurate, intuitive interaction.
• 20 Simultaneous Touch Points — Two-user simultaneous input for collaborative activities.
• USB Bus-Powered — No wall outlet required at the board; a single USB cable handles power and data.
• Hard-Coated Steel Surface — Scratch- and dent-resistant; compatible with dry-erase markers.
• SMART Notebook Included — Full lesson and presentation authoring suite included.
• SMART Product Drivers and Ink Included — Annotate over any application on Windows, Mac, or Linux.
• Pen Tray with Function Buttons — One-touch access to color, highlighter, keyboard, right-click, and orient features.
• 3-Year Limited Warranty — Commercial-grade warranty for high-use environments.

Typical Applications

• University and college lecture halls
• Auditoriums and large training rooms
• Government and military briefing rooms
• Large corporate conference rooms
• K-12 multi-purpose rooms and gymnasiums

Technical Specifications

Frequently Asked Questions

What projector does the M797 require?
The M797 works with any digital projector capable of projecting onto its surface. A short-throw projector is recommended to minimize shadow interference. The projector is sold separately.

How does this compare to the M794-169?
The M797 is larger (97" vs. 94") and uses a 16:10 aspect ratio rather than 16:9. The M797's 16:10 format accommodates both widescreen and near-4:3 content with less letterboxing, while the M794-169 is optimized specifically for HD 16:9 content.

Can two people write simultaneously?
Yes. Up to 20 simultaneous touch points are supported, enabling two active users at the board simultaneously.

Does the board need its own power outlet?
No. The M797 draws power through the USB connection to the computer, consuming less than 2.5 W. No power outlet is needed at the board location.

What software is included?
SMART Notebook, SMART Product Drivers, and SMART Ink are included. SMART Learning Suite is available as an optional upgrade.

What warranty is provided?
A 3-year limited equipment warranty is included. Contact your reseller for extended warranty options.
