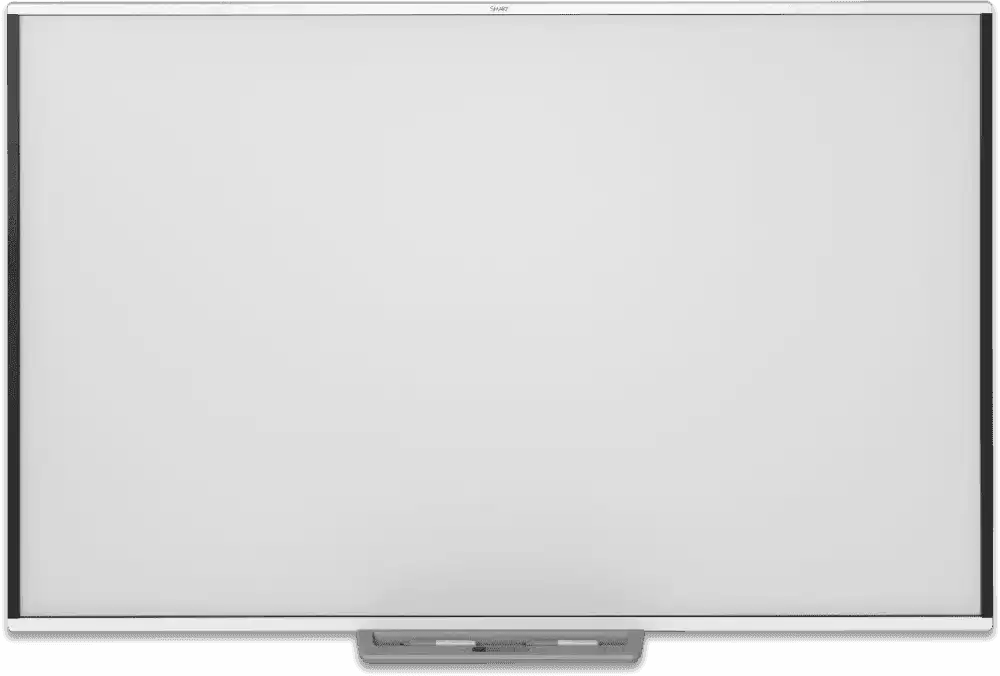

SMART M700 Series SMART Board M794 (16:9) 94" Interactive Whiteboard with an Active Pen Tray - SBM794-169

Product Overview

The SMART Board M794 is a 94" front-projection interactive whiteboard designed for large conference rooms, training facilities, and lecture halls that require widescreen 16:9 presentation format. Using advanced infrared touch technology with Object Awareness, it supports up to 20 simultaneous touch points and differentiates between pen, finger, eraser, and palm inputs. The M794 connects directly to a computer via USB, requiring no external power supply, and works with standard digital projectors to deliver a fully interactive presentation surface. SMART Notebook software is included for collaborative content creation and annotation.

Product Description

The SMART Board M794-169 occupies a practical middle ground between whiteboard and interactive display technology: it delivers the expansive 94" widescreen surface area that large-group instruction demands while keeping the total system cost lower than all-in-one flat panel alternatives. The 82" x 46" projection area accommodates standard 16:9 content without letterboxing, making it well-suited for HD video playback, widescreen presentations, and shared document review. The durable hard-coated steel surface withstands the rigors of daily use, resists dents and scratches, and is compatible with dry-erase markers for non-digital annotation. Connection to any Windows, Mac, or Linux computer is handled through a single USB cable that carries both data and power, eliminating the need for separate power adapters at the board. SMART Product Drivers and SMART Ink are included, enabling annotation over any application. The pen tray provides color-select buttons, a highlighter function, an on-screen keyboard, right-click access, and an orientation shortcut. For organizations already running digital projectors, the M794 integrates into the existing AV infrastructure without requiring display replacement.

Key Features

• 94" 16:9 Widescreen Surface — 82" x 46" projection area optimized for HD widescreen content in large rooms.
• Advanced IR with Object Awareness — Distinguishes pen, finger, eraser, and palm for precise, natural interaction.
• Up to 20 Simultaneous Touch Points — Supports two-user simultaneous input for collaborative exercises.
• USB Bus-Powered — Single USB cable provides both connectivity and power; no external supply required.
• Hard-Coated Steel Surface — Scratch-resistant, dent-resistant, and compatible with dry-erase markers.
• SMART Product Drivers and Ink Included — Annotate over any application on Windows, Mac, or Linux.
• SMART Notebook Included — Lesson and presentation authoring software included at no additional cost.
• Pen Tray with Function Buttons — Color selection, highlighter, on-screen keyboard, right-click, and orient functions accessible from the board.
• 3-Year Limited Warranty — Commercial-grade coverage for confidence in high-use environments.

Typical Applications

• Large conference rooms and boardrooms
• Corporate training rooms
• University and college lecture halls
• Government and military briefing rooms
• Auditoriums and multi-purpose meeting spaces
• K-12 classrooms requiring large-format instruction

Technical Specifications

Frequently Asked Questions

Does the M794 require a specific type of projector?
The M794 works with any standard digital projector that can project onto the board surface. SMART recommends a short-throw projector to minimize shadow interference. The projector is not included.

What computer operating systems are supported?
Windows (with SMART Notebook 20+ and SMART Product Drivers 12.16+), Mac, and Linux are all supported. See SMART's documentation for minimum version requirements.

Can multiple users write simultaneously?
Yes. The board supports up to 20 simultaneous touch points, enabling two users to write, draw, or interact at the same time.

Is the surface compatible with regular dry-erase markers?
Yes. The hard-coated steel surface accepts standard dry-erase markers and erases cleanly.

How does the board receive power?
The M794 is USB bus-powered. It draws less than 2.5 W through the included USB cable connected to the computer — no wall power outlet at the board is needed.

What is included in the box?
The M794 ships with two passive pens, a pen tray, a 5-meter USB cable, self-adhesive cable clips, SMART Notebook software, and SMART Product Drivers.

What warranty does the M794 carry?
SMART provides a 3-year limited equipment warranty. Extended coverage options may be available through your reseller.
