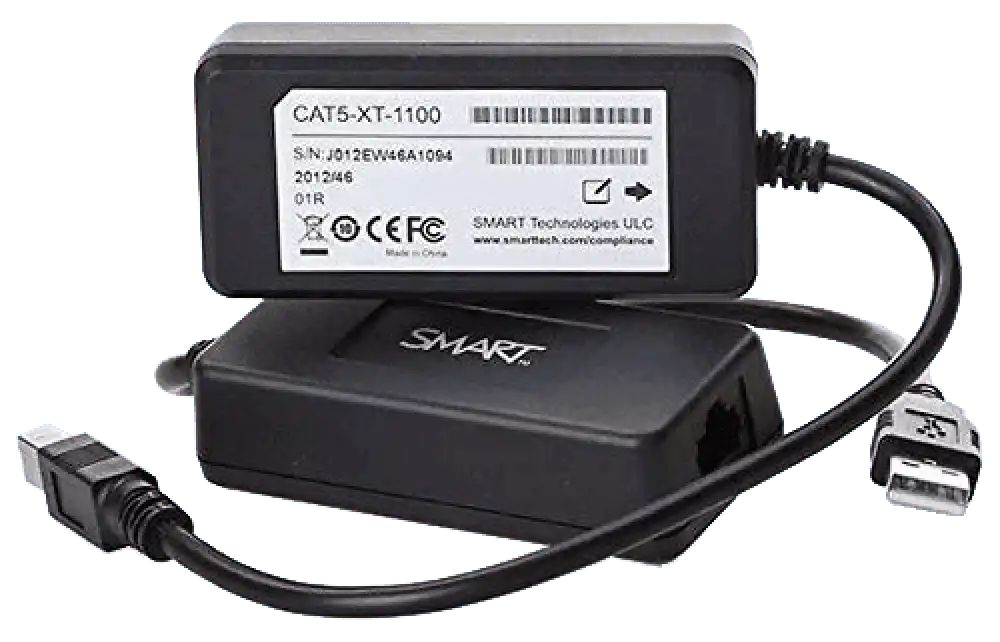

Smart CAT 5 USB Extender (Black) - CAT5-XT-1100
Product Overview
The SMART CAT5 USB Extender (CAT5-XT-1100) extends USB 2.0 signals over standard CAT5, CAT5e, or CAT6 infrastructure cable, allowing a USB-connected PC to be positioned at a distance from the SMART Board interactive display. This extender is designed for installations where a rack-mounted or closet-mounted PC must connect to a wall-mounted SMART Board without running long USB cables across the room. The kit includes both the transmitter and receiver units in black finish, requiring only a standard network cable between them. Maximum extension distance is up to 150 feet (45 meters) over CAT5e or CAT6 cable.
Product Description
The CAT5-XT-1100 transmitter connects to the host PC via USB, while the receiver connects to the SMART Board's USB input; a field-terminated or pre-run CAT5/5e/6 cable bridges the two units. USB 2.0 signal is extended at full USB 2.0 speeds, supporting touch input, stylus, and USB peripheral connectivity between the display and a remotely located PC. This approach eliminates the need for long USB cable runs and avoids the signal degradation associated with passive USB extension cables beyond five meters. The black finish matches typical rack and AV infrastructure aesthetics. The extender is compatible with SMART Board interactive displays that accept standard USB input and does not require additional drivers on Windows or macOS. Both transmitter and receiver are included; CAT cable is not included and must be sourced separately.
Key Features
- CAT5/5e/6 USB Extension — Extends USB 2.0 over standard network infrastructure cable up to 150 feet (45m).
- USB 2.0 Signal Integrity — Maintains full USB 2.0 speeds for touch, stylus, and peripheral connectivity between SMART Board and remote PC.
- Transmitter and Receiver Included — Complete kit with both endpoints; requires only a field-provided CAT5e/6 cable between units.
- Rack-to-Wall Installation Support — Designed for rack-mounted PC to wall-mounted SMART Board installations without long USB cable runs.
- Driver-Free Operation — Compatible with Windows and macOS without additional driver installation.
- Black Finish — Matches standard AV rack and infrastructure hardware aesthetics.
Technical Specifications
| Specification | Detail |
|---|---|
| SKU | CAT5-XT-1100 |
| USB Standard | USB 2.0 |
| Cable Type | CAT5 / CAT5e / CAT6 (not included) |
| Maximum Extension Distance | 150 ft (45m) over CAT5e/6 |
| Finish | Black |
| Included Components | Transmitter unit, receiver unit |
| Driver Requirement | None (plug-and-play) |
| Compatible Displays | SMART Board interactive displays with USB input |
