SMART Board QX Pro 86" Interactive Display with iQ - SBID-QX286-P

Product Overview

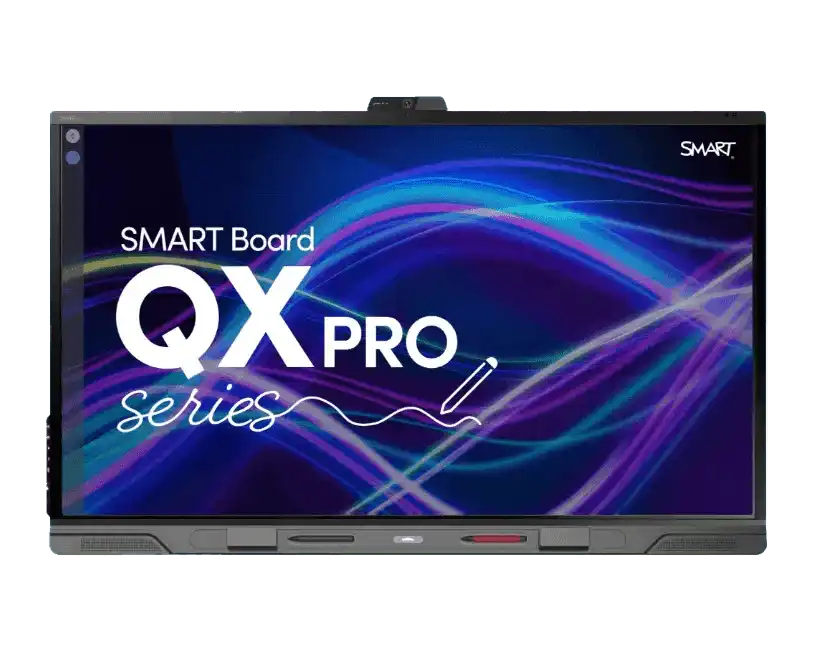

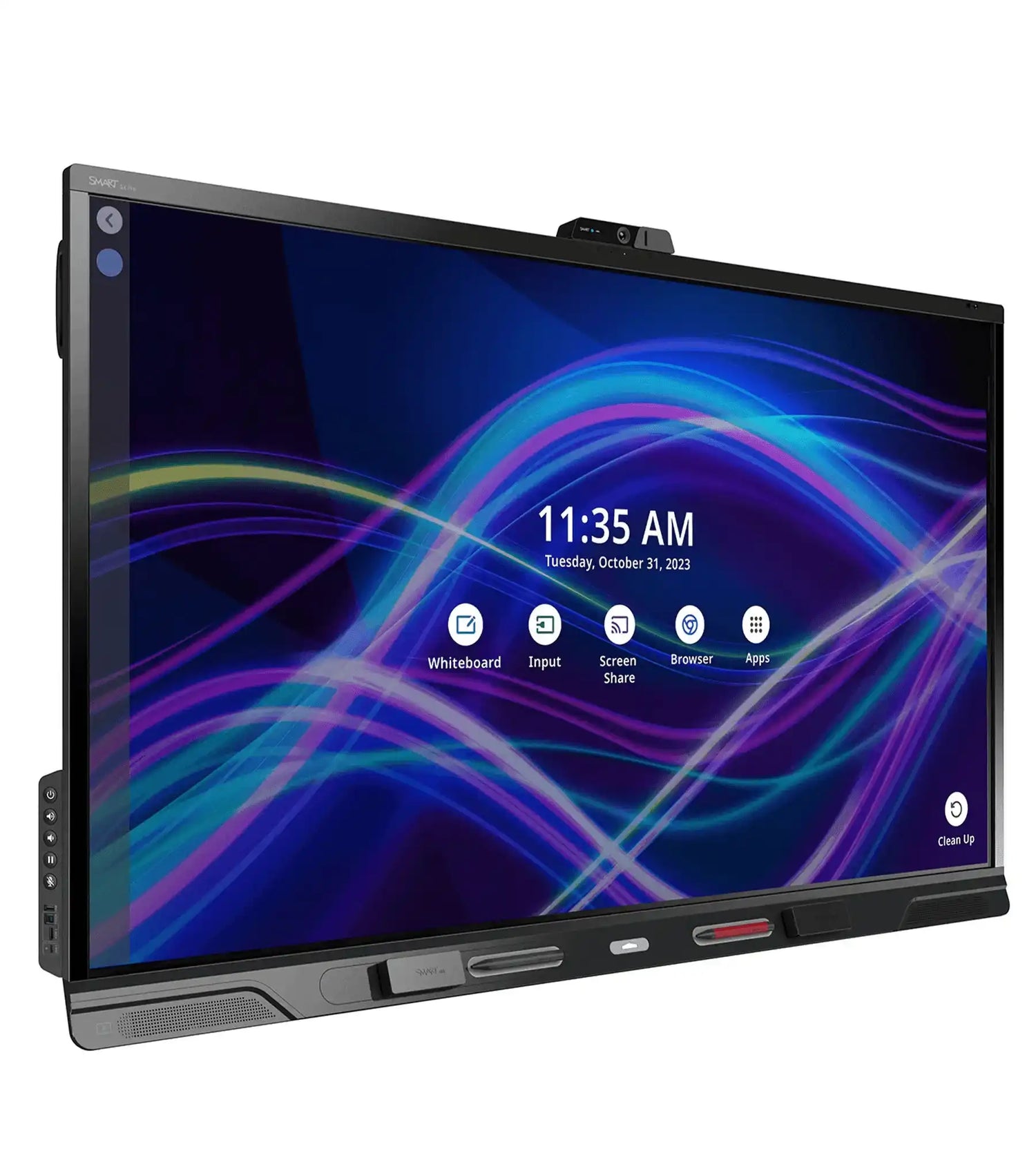

The SMART Board QX Pro 86" (SBID-QX286-P) is a commercial-grade 86-inch interactive display built for demanding meeting room and conference room environments. Combining a 4K UHD LED panel with an integrated UHD camera, a 6-element microphone array, and SMART iQ compute, it functions as a complete all-in-one video conferencing and collaboration station. Designed for AV integrators and IT teams deploying enterprise interactive displays, the QX Pro 86" ships with SMART Meeting Pro software, wall mount, and all required cabling. The display is the first on the market certified for Crestron XiO Cloud and Crestron Connected 2nd Generation, making it straightforward to integrate into existing AV control systems.

Product Description

The SMART Board QX Pro 86" targets large conference rooms, boardrooms, and all-hands spaces where screen size, touch precision, and integrated A/V matter. The 86" optically bonded glass panel delivers 4K resolution with no parallax gap between the glass surface and the display layer, giving pressure-sensitive pen input a pen-on-paper feel. SMART's Simultaneous Tool Differentiation technology allows multiple users to write, erase, and move objects at the same time without interfering with one another — a critical capability for collaborative design reviews and whiteboard sessions.

Connectivity is comprehensive: three HDMI 2.1 inputs, dual USB-C ports each providing 4K video and 65W power delivery, VGA, RS-232, and both wired Gigabit Ethernet and dual-band Wi-Fi with three external antennas. The OPS accessory slot accepts a 100W PC module, allowing the display to host a full Windows installation without a separate computer. The integrated NFC/RFID reader supports CCID badge authentication, which simplifies secure login in enterprise and government deployments. ENERGY STAR certified with a 135W operating power draw and a 50,000-hour LED panel life, the QX Pro 86" is built for continuous commercial use.

Key Features

• 86" 4K UHD LED Display — 3840x2160 resolution with a 50,000-hour LED backlight life for long-term commercial deployment.
• Optical Bonding — Eliminates the air gap between the glass and panel, reducing glare and improving touch accuracy for pressure-sensitive pen input.
• Dual USB-C with 65W Power Delivery — Each USB-C port delivers 4K@60Hz video, DisplayPort 1.2, USB 2.0 touch/audio, USB 3.2 data, and 65W charging — a single-cable connection for laptops.
• Integrated UHD 4K Camera — Flush-mounted ultra-high-definition camera included in the box, positioned to cover participants across a large conference room.
• 6-Element Microphone Array — Built-in beam-forming mic array with acoustic echo cancellation for clear voice pickup in video conferencing without a separate USB microphone.
• 2x 20W Speakers + 15W Subwoofer — Integrated audio system handles meeting audio without requiring an external speaker bar.
• Simultaneous Tool Differentiation — Multiple participants write, erase, and gesture simultaneously over any connected input source without tool conflicts.
• NFC/RFID Reader with CCID Support — Tap-to-login via proximity badge for enterprise single sign-on workflows and government access card environments.
• OPS PC Accessory Slot (100W) — Accepts SMART or third-party OPS-compatible PC modules for a fully self-contained Windows workstation.
• Crestron XiO Cloud Certified — First interactive display certified for Crestron XiO Cloud and Crestron Connected 2nd Generation, ensuring compatibility with enterprise AV control infrastructures.
• Android 11 with iQ — Onboard compute (8GB RAM, 32GB storage) runs SMART iQ apps natively — whiteboard, wireless screen sharing, web browser — without a connected PC.
• ENERGY STAR Certified — 135W operating power consumption; qualifies for energy rebate programs in commercial building deployments.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Multi-purpose room
• Government space
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What video conferencing platforms does the QX Pro 86" support?

The display works with Microsoft Teams, Zoom, Google Meet, and Webex. It connects as a USB audio/video device to a host laptop, or runs these apps natively via Android 11 when configured with the appropriate app.

Does the QX Pro 86" require a connected PC to function?

No. The built-in Android 11 compute with 8GB RAM and SMART iQ runs whiteboard, screen sharing, and browser applications without any external computer. Connecting a PC expands functionality and allows use of Windows applications on the display.

What is the mounting configuration for the SBID-QX286-P?

The display ships with a wall mount included. It weighs 154 lb and measures 78.5" wide x 49.4" tall x 4.8" deep. It is VESA-compatible; confirm mount load ratings before installation. A floor stand is available separately from SMART Technologies.

How does the QX Pro 86" integrate with Crestron control systems?

It is certified for both Crestron XiO Cloud (cloud-based device management) and Crestron Connected 2nd Generation (room control). This allows AV integrators to manage the display alongside other Crestron-controlled room devices — lighting, shades, audio — through a unified control system.

Can the OPS slot accept third-party PC modules?

Yes. The OPS accessory slot supports up to 100W devices, accepting SMART OPS PC modules and most OPS-compliant third-party compute modules that meet the power and form factor specification.

What is included in the box?

The display ships with a US power cable, 5m USB 2.0 Type-A to B cable, 1.8m USB-C (USB4, 100W) cable, 2 pens (red and black), 2 erasers, 3 dual-band Wi-Fi antennas, remote control with batteries, wall mount, SMART Ultra HD 4K Camera with accessories, and installation documentation.

What warranty coverage applies to the SBID-QX286-P?

SMART Technologies provides a 3-year limited warranty. Extended warranty and SMART Assure service plans are available through authorized resellers. Contact Creation Networks for warranty registration assistance and support escalation.

Is the QX Pro 86" suitable for government procurement?

The standard QX Pro includes Wi-Fi and Bluetooth. For government facilities requiring disabled wireless or restricted USB peripherals, review the 6000S TAA-compliant series available on Creation Networks, which offers factory-configured security restrictions.
