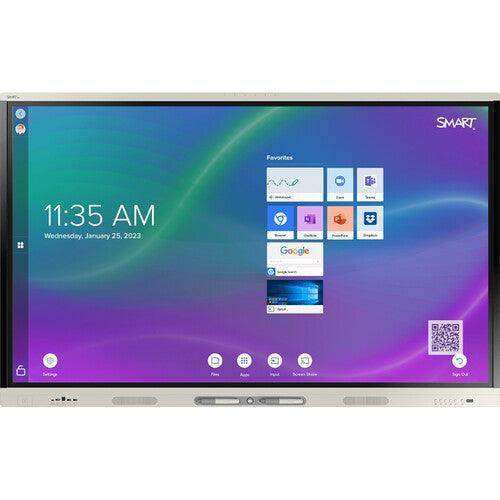

SMART Board MX Pro series 55" Interactive display with iQ (White) - SBID-MX255-V4-PW

Product Overview

The SMART Board MX Pro 55" (SBID-MX255-V4-PW) is a commercial-grade interactive flat panel designed for enterprise meeting rooms and collaboration spaces that demand a complete, standalone solution. It combines a 4K UHD 55" display with the iQ embedded Android OS, SMART Meeting Pro software, integrated six-microphone array with acoustic echo cancellation, and NFC sign-in in a single white-framed unit. The Pro designation includes SMART Meeting Pro room license plus 10 personal licenses out of the box, making it deployment-ready for professional collaboration without additional software procurement. HyPr Touch technology delivers touch response times under 5 ms with 1 mm accuracy across 20 simultaneous touch points.

Product Description

The MX055-V4 Pro is engineered for the modern hybrid meeting room where presenters and remote participants need consistent, reliable interaction regardless of which computing platform is in use. The embedded iQ system running Android 11.0 with 8 GB DDR4 RAM and 32 GB storage provides standalone whiteboarding, web browsing, and screen sharing without a connected PC. When a PC is required, the rear OPS slot accepts SMART PCM modules for a fully integrated Windows computing solution. Connectivity is extensive: three HDMI 2.1 ports (one front, two rear), dual USB-C inputs with DisplayPort 1.2, VGA, RS-232, dual RJ45 Gigabit Ethernet ports, Wi-Fi 6 (802.11ax), and Bluetooth 5.2 ensure compatibility with virtually any source device. The integrated linear six-microphone array with onboard acoustic echo cancellation supports video conferencing directly from the display without an external speakerphone for rooms up to a standard meeting room size. NFC enables tap-to-sign-in to a SMART Account for personalized session start. The 55" screen operates at 300 cd/m² brightness with a 178° viewing angle and ≤8 ms response time. SMART Remote Management subscription is included for the warranty period, enabling IT administrators to manage the device remotely. The white frame suits modern office interiors, and VESA 400×400 mm mounting is supported for integration with third-party mounts and wall stands.

Key Features

• 4K UHD Display (3840×2160) — 55" LED panel with 300 cd/m² brightness, 178° viewing angle, and ≤8 ms response time.
• HyPr Touch Technology — ≤5 ms touch response, 1 mm accuracy, 20 simultaneous touch points, Object Awareness, and Silktouch.
• iQ Embedded Android 11.0 — 8 GB DDR4 RAM, 32 GB storage; standalone whiteboarding, browser, and screen sharing without a PC.
• SMART Meeting Pro Included — Room license plus 10 personal licenses included; enterprise-grade meeting software ready at first power-on.
• Integrated 6-Mic Array with AEC — Onboard acoustic echo cancellation supports video conferencing without an external speakerphone.
• NFC Sign-In — Tap to authenticate to a SMART Account for personalized session start and cloud access.
• Wi-Fi 6 and Bluetooth 5.2 — IEEE 802.11ax wireless plus Bluetooth 5.2 for device connectivity and screen sharing.
• OPS Expansion Slot — Rear slot accepts SMART PCM modules for an integrated Windows 11 Pro computing solution.
• Dual Gigabit Ethernet — Two RJ45 1000BASE-T ports support wired network daisy-chaining.
• SMART Remote Management Included — Fleet management subscription included for warranty duration.

Typical Applications

• Corporate conference rooms and huddle spaces
• Executive boardrooms
• Hybrid meeting environments with video conferencing
• Training rooms requiring standalone interactive capability
• Financial services and legal collaboration rooms
• Healthcare administrative meeting spaces

Technical Specifications

Frequently Asked Questions

What is the difference between the MX Pro and the standard MX?
The Pro version adds SMART Meeting Pro software (room + 10 personal licenses), an integrated NFC reader for account sign-in, and 2× 15 W speakers on the 55" model versus the standard model's identical display hardware. The Pro is positioned for enterprise meeting room deployment.

Can this display operate without a connected PC?
Yes. The embedded iQ Android 11.0 system provides a full whiteboard, web browser, and screen sharing capability. An external PC is not required for standalone use.

Does the MX255-V4-PW support video conferencing?
The display includes an integrated 6-microphone array with acoustic echo cancellation. A USB camera is still required for video. The display works with Teams, Zoom, and other USB-based conferencing platforms.

What OPS modules are compatible?
SMART PCM modules (PCM11, PCM13 series) are compatible. The display provides 60 W to the OPS slot. Third-party OPS modules may have varying compatibility — test before deployment.

Is the wall mount included?
No. The WM-SBID-200 wall mount (sold separately) is compatible with this display. VESA 400×400 mm M8 mounting holes are provided.

What software is included?
SMART Meeting Pro (room license + 10 personal licenses), iQ embedded Android OS, and SMART Remote Management (for warranty duration) are all included.

What is the display's expected lifespan?
The LED backlight is rated for ≥50,000 hours of operation.
