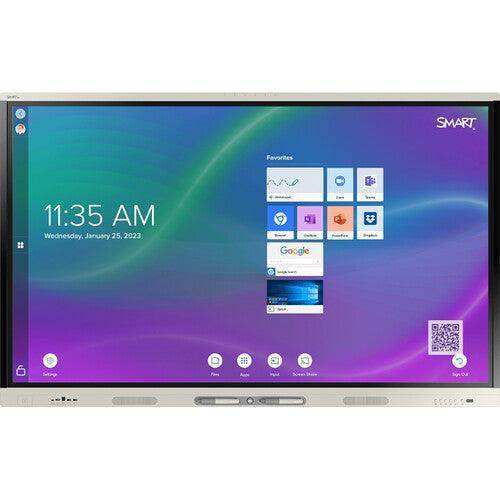

SMART Board MX Pro series 86" Interactive display with iQ (White) - SBID-MX286-V4-PW

Product Overview

The SMART Board MX Pro V4 86" (SBID-MX286-V4-PW) is a commercial-grade 86-inch interactive display with iQ, finished in white bezels for light-colored room environments. It delivers 4K UHD resolution at 400 cd/m² brightness, SMART's IR touch technology with 20-point multi-touch on Windows, Mac, and Android (10-point on ChromeOS), and a full SMART iQ app suite including whiteboard, wireless screen sharing, and a web browser. The integrated 6-element linear microphone array with acoustic echo cancellation and two 20W speakers provide onboard audio for video conferencing without additional peripherals. Available at Creation Networks for conference room, training room, and commercial meeting space deployments where white trim is specified.

Product Description

The SBID-MX286-V4-PW is designed for AV integrators and facilities teams deploying 86" interactive displays in spaces where white bezels are a design requirement — modern open offices, bright-walled conference rooms, educational environments, and any installation where a dark-framed panel would be visually dominant. The 86" LED/LCD panel delivers 4K resolution at 400 cd/m² brightness with a heat-tempered anti-glare bonded glass surface for reduced reflections in naturally lit spaces.

Touch input uses IR technology with 20-point multi-touch on Windows, Mac, and Android, and 10-point on ChromeOS. The display comes with two pens for writing and drawing, and supports Object Awareness for automatic pen, finger, and palm detection. The built-in SMART iQ experience provides one-touch access to the whiteboard, screen sharing, and browser without a connected PC, running natively on the onboard Android compute. Connectivity covers three HDMI 2.1 inputs plus VGA, dual USB-C ports, USB 3.2 ports, and RJ45 LAN, with dual-band Wi-Fi for wireless networking. An NFC sign-in reader supports SMART ID badge authentication. The display includes SMART ID cards for NFC login out of the box.

Key Features

• 86" 4K UHD Display at 400 cd/m² — High-brightness 4K panel with anti-glare bonded glass for clear visibility in rooms with ambient or natural lighting.
• White Bezel Finish — Bright white frame for modern offices, open collaboration spaces, and any environment where a dark bezel is not appropriate.
• 20-Point IR Touch (Windows/Mac/Android) — Multi-touch support for up to 20 simultaneous touch points on major platforms; 10-point on ChromeOS.
• SMART iQ Built-In Compute — Onboard Android compute provides one-touch access to SMART whiteboard, wireless screen sharing, and web browser without a connected PC.
• 6-Element Linear Microphone Array — Integrated mic array with acoustic echo cancellation for video conferencing audio pickup across a large room without a separate USB mic.
• Two 20W Integrated Speakers — Forward-facing speaker pair delivers clear meeting audio in conference rooms and training spaces.
• NFC Sign-In with SMART ID Cards — Tap-to-login via SMART ID badge on the integrated NFC reader; SMART ID cards included in the box.
• Anti-Glare Bonded Glass — Heat-tempered, bonded construction reduces surface reflections and provides a natural writing feel with included pens.
• 3x HDMI 2.1 + VGA + Dual USB-C Inputs — Broad connectivity for room computers, guest laptops, and AV sources from a single display.
• Dual-Band Wi-Fi + Gigabit Ethernet — Wired and wireless network connectivity for screen sharing, firmware updates, and iQ app access.

Typical Applications

• Conference room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room
• All-hands room
• House of worship

Technical Specifications

Frequently Asked Questions

What is the difference between the MX Pro V4 and the QX Pro or 6000 Series?

The MX Pro V4 uses IR touch technology with 20-point multi-touch, while the QX Pro uses pressure-sensitive optical bonding and the 6000S Pro uses InGlass HyPr Touch. The MX Pro is positioned as a cost-effective commercial display with iQ, whereas the QX Pro and 6000S Pro offer more advanced touch precision and, on the QX Pro, an integrated 4K camera.

Does the MX Pro V4 86" work with Microsoft Teams and Zoom?

Yes. The display connects to Teams, Zoom, Google Meet, and Webex via a connected PC through HDMI or USB-C. Native Android conferencing apps can also be installed through the iQ interface depending on configuration.

What NFC functionality is built in?

The display includes an integrated NFC reader for SMART Account sign-in using a SMART ID card. Tap the card to the reader and enter a PIN to log in without typing credentials. SMART ID cards are included in the box.

Can the display be used as a standalone device without a PC?

Yes. The built-in iQ experience on Android provides whiteboard, wireless screen sharing, and browser access independently. A PC is required for Windows applications, Office software, or specific corporate applications.

How does the 6-element microphone array perform in a large conference room?

The linear 6-element array with acoustic echo cancellation is designed to pick up voices across a large room. For very large spaces or highly reverberant environments, an external USB or networked microphone system may be preferable for optimal audio capture.

What is included in the box?

The display ships with two pens, a remote control, cables, wall mount, SMART ID cards for NFC sign-in, and installation documentation. Contact Creation Networks to confirm the complete packing list for the SBID-MX286-V4-PW.

What warranty does the MX Pro V4 carry?

A 3-year limited warranty from SMART Technologies. Extended service plans are available through Creation Networks.
