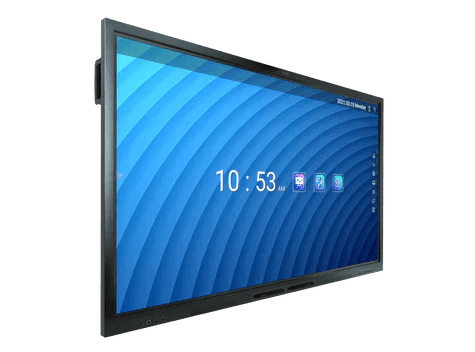

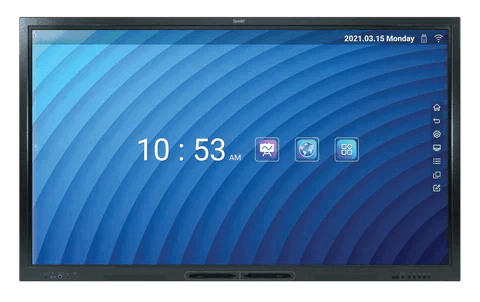

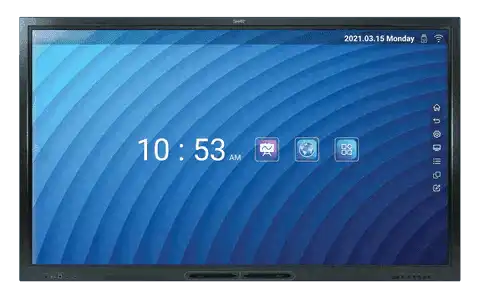

SMART Board GX Series 86" Interactive display with embedded OS - GX186-V3

Product Overview

The SMART Board GX186-V3 is an 86-inch interactive display from the GX Series, designed for large classrooms, training rooms, conference rooms, and collaborative spaces requiring an embedded Android OS and SMART's touch interaction technology at a commercial-grade price point. The GX Series V3 delivers SMART's iQ embedded platform, HyPr Touch multi-user touch, and compatibility with the SMART Notebook and iQ app ecosystem on a large-format 4K display. This model is suited for educational institutions, corporate training centers, and any environment where an 86" interactive display is needed for group instruction or presentation.

Product Description

The GX186-V3 provides 4K UHD (3840 × 2160) resolution on an 86" panel with LED backlighting, a 178° viewing angle, and SMART's HyPr Touch Advanced IR touch system for multi-user simultaneous interaction. The V3 platform runs SMART's iQ embedded Android OS, providing digital whiteboarding, web browsing, screen sharing, and SMART's collaboration app suite without an external PC. SMART Notebook software for lesson delivery is compatible with the GX Series. The display includes integrated stereo speakers, NFC for SMART Account sign-in, Wi-Fi, Bluetooth, HDMI inputs, USB-C, USB-A ports, VGA, and an OPS slot for SMART PCM compute modules. SMART Remote Management enables centralized IT administration for multi-site deployments. The GX186-V3 is the predecessor to the GX Plus V4 (GX186N-V4); the V4 adds EDLA Google certification and improved OS performance. For EDLA-certified Google Play Store access, select the GX186N-V4. For organizations with existing V3 deployments looking to expand, the GX186-V3 maintains hardware and software compatibility.

Key Features

• 86" 4K UHD Display — 3840 × 2160 resolution on a large-format panel with LED backlight and 178° viewing angle for large classrooms and training rooms.
• iQ Embedded Android OS — Built-in collaboration platform with whiteboard, browser, screen sharing, and SMART app ecosystem; no external PC required.
• HyPr Touch with Advanced IR — Multi-user simultaneous pen and finger touch with palm rejection and Object Awareness.
• SMART Notebook Compatible — Full compatibility with SMART Notebook for structured interactive lesson delivery.
• OPS Compute Slot — Supports SMART PCM modules for Windows or Linux operation.
• NFC Sign-In — Integrated NFC for SMART Account authentication and personalized sessions.
• SMART Remote Management — Centralized IT administration for multi-display deployments.
• GX Series V3 Platform — Predecessor to the GX Plus V4; compatible with existing V3 GX Series deployments.

Typical Applications

• K-12 and higher education classrooms requiring large-format interactive displays
• Corporate training rooms and presentation centers
• University lecture halls and seminar rooms
• Library and collaborative learning spaces
• Large conference rooms requiring group viewing and annotation

Technical Specifications

Frequently Asked Questions

What is the difference between the GX186-V3 and the GX186N-V4?

The GX186N-V4 (GX Plus) adds EDLA certification — Google's Enterprise Device Licensing Agreement — enabling full Google Play Store, Google Play Protect, and Google Workspace compatibility. The V3 uses SMART's iQ Android platform without EDLA certification. If Google-certified app access is required, select the V4.

Does this display require an external PC?

No. The iQ Android OS provides whiteboarding, web browsing, screen sharing, and SMART app access without a connected PC. An OPS module can be added for Windows operation.

Is SMART Notebook compatible with the GX186-V3?

Yes. SMART Notebook is compatible with the GX Series V3. Notebook licensing may need to be purchased separately depending on requirements.

What is the warranty?

Standard SMART equipment warranty with extended options up to 7 years. Contact Creation Networks or visit smarttech.com/warranty for details.

Can I expand a V3 GX Series deployment with additional V3 units?

Yes. The GX186-V3 maintains hardware and software compatibility with existing V3 GX Series deployments. For new installations, consider the GX186N-V4 for EDLA certification advantages.
