SMART Board GX Series 65" Interactive display with embedded OS...
Product Overview

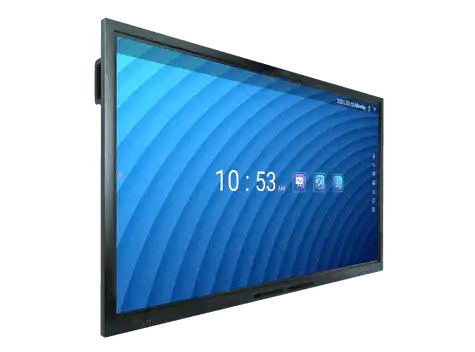

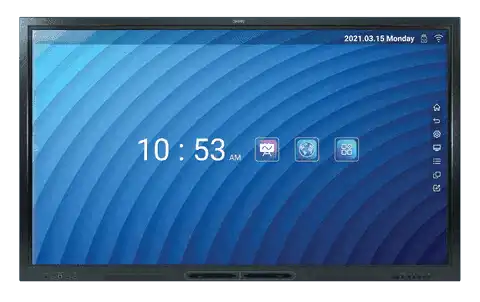

The SMART Board GX165-V3 is a 65" interactive flat panel display from the original GX series, offering 4K UHD resolution, embedded Android OS, and advanced infrared touch technology at an entry-level price point for commercial AV buyers. Designed for classrooms and conference rooms that need a reliable standalone interactive display without the advanced computing features of the MX Pro series, the GX165-V3 includes SMART Notebook, SMART Product Drivers, and SMART Ink out of the box. The OPS expansion slot accommodates SMART PCM modules for Windows 11 Pro computing when an integrated PC is required.
Product Description
The GX165-V3 is the generation that preceded the GX Plus (V4) series and remains a viable option for budget-conscious procurement where Google EDLA certification, 50-point touch, and Android 14 are not requirements. Running Android 8.0 with 3 GB RAM and 32 GB storage, the embedded OS handles basic whiteboarding, web browsing, and screen sharing without a connected PC. SMART Mirror enables wireless casting from student and presenter devices. The 65" LED display achieves 400 cd/m² brightness with full heat-tempered, anti-glare glass and a 178° viewing angle, suitable for the range of ambient lighting conditions found in standard classrooms and meeting rooms. Touch performance is delivered via advanced IR with 20-touch support, Object Awareness, and Silktouch at a ≤10 ms response time. Wi-Fi 802.11 ac/n with dual-band 2.4/5 GHz and Bluetooth 4.2 provide wireless connectivity. For wired connectivity, dual RJ45 1000BASE-T ports support daisy-chaining. HDMI 2.0 inputs on the front and rear accept display signals from connected computers, while DisplayPort 1.2 and VGA provide additional source compatibility. The OPS slot provides 60 W for SMART PCM modules. ENERGY STAR certification and standby power under 0.5 W support energy management programs.
Key Features
- 4K UHD Resolution (3840×2160) — 400 cd/m² LED panel with anti-glare glass for clear visibility in classroom and meeting room conditions.
- Advanced IR Touch (20-Point) — Object Awareness, Silktouch, ≤10 ms response; differentiates pen, finger, and eraser.
- Embedded Android 8.0 — 3 GB RAM / 32 GB storage; standalone whiteboard, browser, and screen sharing without a PC.
- SMART Notebook and SMART Ink Included — Lesson authoring and over-application annotation included out of the box.
- OPS Slot (60 W) — Accepts SMART PCM modules for integrated Windows 11 Pro computing.
- Dual RJ45 with LAN Out — Wired network daisy-chaining for AV closet or device-chain installations.
- Wi-Fi 802.11ac Dual-Band — 2.4 and 5 GHz for flexible wireless deployment.
- Multiple Video Inputs — HDMI 2.0, DisplayPort 1.2, VGA, USB-C for broad source compatibility.
- ENERGY STAR Certified — Meets energy efficiency requirements for public sector and LEED-qualified procurement.
Typical Applications
- K-12 classrooms requiring a cost-effective interactive display
- Higher education seminar and tutorial rooms
- Corporate conference rooms and huddle spaces
- Training rooms with standard SMART software workflows
- Government facility meeting rooms
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 65" diagonal |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 400 cd/m² |
| Refresh Rate | 60 Hz |
| Response Time | ≤8 ms |
| Viewing Angle | 178° |
| Glass | Full heat-tempered, anti-glare |
| Backlight | LED |
| Lifespan | ≥50,000 hours |
| Frame Color | Black |
| Touch Technology | Advanced IR |
| Touch Response Time | ≤10 ms |
| Frame Rate | ≥110 Hz |
| Multitouch | 20 points (Windows/Mac), 10 points (Chrome OS) |
| Touch Accuracy | 1 mm |
| Embedded OS | Android 8.0, 3 GB RAM, 32 GB storage |
| Audio | 2 × 15 W integrated speakers |
| OPS Slot Power | 60 W |
| Inputs | 3× HDMI 2.0, 1× DisplayPort 1.2, 1× VGA, 1× USB-C (front, 15 W PD), 1× RS-232, 1× RJ45 LAN In, OPS slot |
| Outputs | 1× RJ45 LAN Out, 1× S/PDIF optical, 1× 3.5 mm (variable) |
| USB | 3× USB 2.0 Type-A, 1× USB 3.2 Gen 1 Type-A, 2× USB Type-B |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, dual-band 2.4/5 GHz, Wi-Fi access point |
| Bluetooth | 4.2 dual mode |
| Ethernet | 2× RJ45 1000BASE-T |
| VESA Mount | 600 × 400 mm, M8 |
| Unit Weight | 92 lb. (42 kg) |
| Dimensions (W×H×D) | 59 3/8" × 35 1/2" × 3 3/4" (150.6 cm × 90.1 cm × 9.6 cm) |
| Power Consumption | 117 W typical; <0.5 W standby |
| Certifications | UL, FCC, ISED, TSCA, CE, UKCA, ENERGY STAR, RoHS, REACH |
| Warranty | Varies by region; see smarttech.com/warranty |
Frequently Asked Questions
How does the GX165-V3 compare to the newer GX165N-V4?
The V4 Plus runs Android 14 vs. Android 8.0, doubles the RAM (8 GB vs. 3 GB), quadruples storage (64 GB vs. 32 GB), supports 50 touch points vs. 20, includes Google EDLA certification and the Play Store, has a 400 Hz scan rate vs. 110 Hz, and includes bonded anti-fingerprint glass. The V3 is suited for environments where those features are not required and budget is the primary constraint.
Can the GX165-V3 run without a PC?
Yes. The embedded Android 8.0 OS supports standalone whiteboarding, web browsing, and screen sharing. For more demanding applications, a SMART PCM module in the OPS slot provides full Windows 11 Pro capability.
What wall mount is compatible?
The WM-SBID-200 wall mount is compatible. The display uses VESA 600×400 mm M8 mounting holes.
Is this display discontinued?
The GX165-V3 has been superseded by the GX165N-V4 but remains available as a cost-effective option. See SMART's product life cycle page for support timeline details.
What software is included?
SMART Notebook, SMART Product Drivers, and SMART Ink are included. SMART Mirror enables wireless screen sharing from connected devices.
