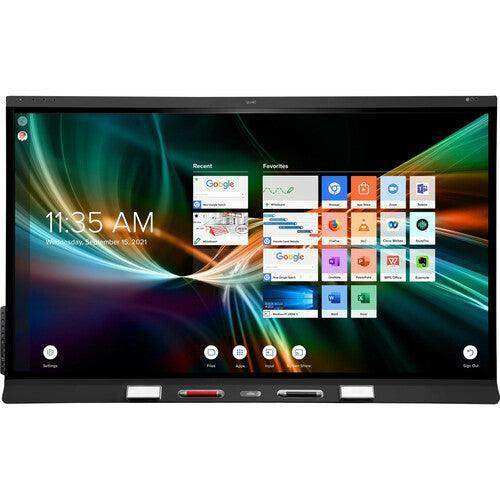

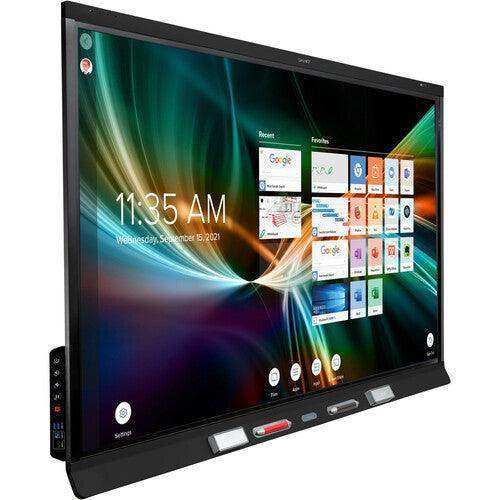

SMART Board 6000 Series 86" 4K Pro Interactive Display w/ iQ and Meeting Pro Software (Black Bezels) - SBID-6286S-V3-P

Product Overview

The SMART Board SBID-6286S-V3-P is an 86-inch 4K Pro interactive display from the 6000 Series with iQ and SMART Meeting Pro software, in a standard black bezel configuration. It combines InGlass 40-point multi-touch, built-in Android iQ compute, dual 65W USB-C ports, a 40W integrated speaker system, and an integrated microphone array in a commercial-grade 86" panel suited for boardrooms, large conference rooms, and all-hands spaces. Bundled with SMART Meeting Pro (Room and Personal licenses) and a 3-year SMART Remote Management subscription, this is a complete out-of-box conference room interactive display solution.

Product Description

The SBID-6286S-V3-P represents SMART's established 6000S Pro platform in the 86" form factor with black bezels — the most widely deployed configuration for corporate conference rooms and commercial AV installations. The 86" LED-backlit LCD panel outputs 4K UHD resolution (3840x2160) with InGlass HyPr Touch technology at 40 simultaneous touch points, delivering accurate multi-user interaction across the entire surface area of the display.

Built-in iQ runs on Android 9 (with an OTA update path to Android 11) with 6GB DDR RAM, providing the SMART whiteboard, wireless screen sharing, and browser apps as a standalone experience without a connected PC. Dual 65W USB-C ports enable single-cable laptop connections for video, touch, audio, and power. Two forward-facing 20W speakers and an integrated dual-element microphone array handle audio for video conferencing sessions with Microsoft Teams, Zoom, Google Meet, or Webex. A 3-year SMART Remote Management subscription is included for centralized IT management of display fleets. SMART Meeting Pro software (Room and Personal licenses) enables structured whiteboarding and meeting workflows.

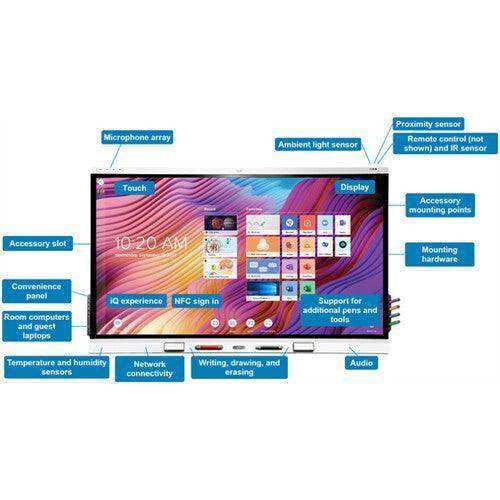

Key Features

• 86" 4K UHD LED Display — 3840x2160 resolution on a commercial-grade LED-backlit LCD panel with wide viewing angles for large meeting rooms.
• InGlass 40-Point Multi-Touch — HyPr Touch with InGlass technology supports 40 simultaneous touch points for accurate, multi-user whiteboarding and annotation.
• iQ Built-In Android Compute — Android 9 / 11 with 6GB RAM runs SMART whiteboard, wireless screen sharing, and browser natively without a connected PC.
• Dual 65W USB-C Ports — Two USB-C ports each delivering 4K video, touch, audio, and 65W laptop charging over a single cable.
• Two 20W Forward-Facing Speakers — 40W integrated audio positioned for front-of-room coverage in conference and training spaces.
• Integrated Dual Microphone Array — Built-in mic array with echo cancellation for video conferencing without a separate USB microphone device.
• SMART Meeting Pro Included — Room and Personal software licenses for digital whiteboarding, meeting notes capture, and annotation tools.
• 3-Year SMART Remote Management — Cloud-based IT fleet management for remote firmware updates, configuration, and device monitoring.
• Simultaneous Tool Differentiation — Multiple users write, erase, and interact with content simultaneously over any connected source without tool interference.
• Object Awareness — The display automatically identifies whether a pen, finger, eraser, or palm is touching the screen and responds accordingly.
• Black Bezel Finish — Standard commercial dark frame for corporate boardrooms and professional AV installations.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Commercial meeting space
• Training room
• Multi-purpose room
• House of worship

Technical Specifications

Frequently Asked Questions

Does this display require a PC to operate?

No. The built-in iQ compute module runs on Android with 6GB RAM, providing SMART's whiteboard, wireless screen sharing, and browser applications independently. Connecting a Windows or Mac laptop expands the application set to the full OS environment.

How does wireless screen sharing work?

SMART iQ supports wireless screen mirroring from Windows, Mac, iOS, Android, and Chromebook devices using SMART's screen sharing app. No additional hardware dongle is required. The display and source device must be on the same network.

What is the SMART Meeting Pro software included?

SMART Meeting Pro provides an infinite digital whiteboard, meeting notes capture, and annotation tools. Room licenses run on the display itself; Personal licenses allow meeting participants to annotate from their connected laptops.

Can this display integrate with a room control system?

Yes. The SMART Board 6000S Pro supports RS-232 serial control and is compatible with major AV room control systems including AMX and Crestron. Consult Creation Networks' AV integration team for specific driver and control code availability.

Is the 6286S-V3-P available in a TAA-compliant configuration?

The SBID-6286S-V3-P is the non-TAA variant. The SBID-6586S-V3-P and SBID-6486S-V3-P are the TAA-compliant configurations in the 6000 Series 86" lineup. Contact Creation Networks if TAA compliance is a procurement requirement.

What warranty is included?

SMART includes a 3-year SMART Assure limited warranty. Extended warranty options and SMART Support plans are available through Creation Networks.

How is the display mounted?

A WM-SBID-200 wall mount is included. The 86" display is also compatible with SMART's floor stand and height-adjustable cart accessories. Confirm the wall's load capacity before installation; professional mounting is recommended for panels in this size and weight class.
