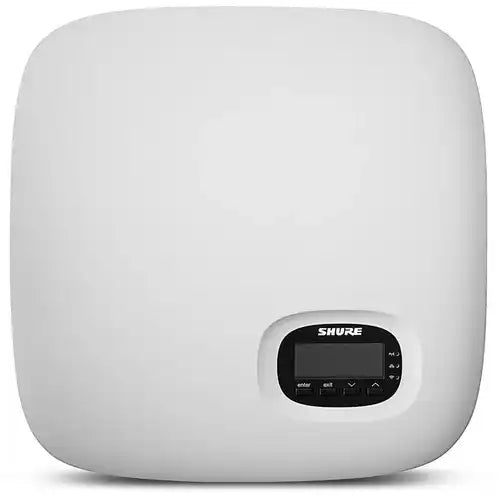

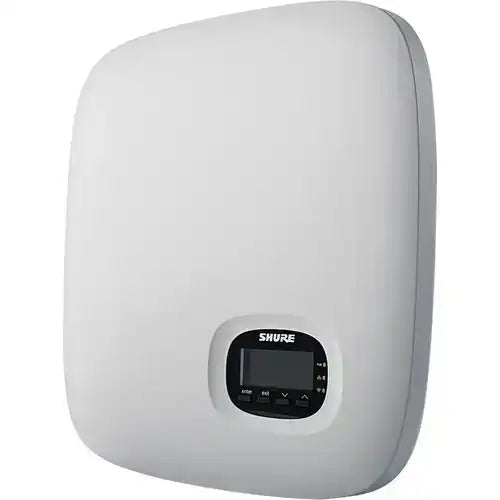

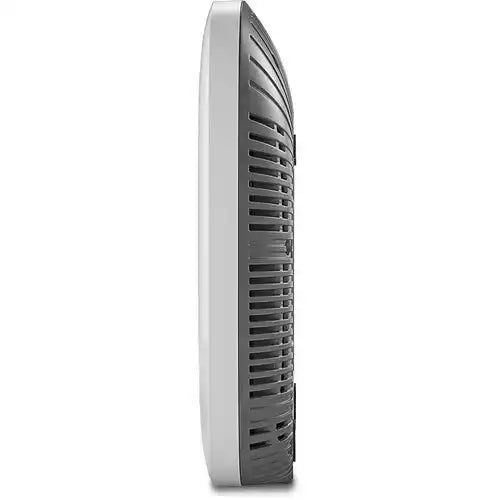

Shure MXCWAPT-PS Wireless Access Point Transceiver
The Shure MXCWAPT-PS is a professional wireless access point transceiver for the Microflex Complete Wireless conference system. It serves as the central hub that manages up to 125 delegate units while providing reliable two-way digital audio, control signals, and power distribution using secure 2.4 GHz and 5 GHz dual-band wireless technology.
The unit features automatic frequency coordination, intelligent interference avoidance, and AES-128 encryption for secure communication. It supports both wired Dante/AES67 networked audio output and analog XLR outputs, making it highly flexible for integration into existing AV systems. The low-profile design allows discreet ceiling or wall mounting, while the included power supply ensures reliable operation in boardrooms, council chambers, and conference centers.
| Feature | Benefit |
|---|---|
| Dual-Band Wireless Operation | Uses 2.4 GHz and 5 GHz bands with automatic channel selection for reliable performance |
| Supports Up to 125 Delegate Units | Scales easily for large conference systems |
| Automatic Frequency Coordination | Simplifies setup and avoids interference without manual tuning |
| AES-128 Encryption | Ensures secure wireless audio and control transmission |
| Dante/AES67 Networked Audio | Enables digital audio routing and integration with modern AV systems |
| Analog XLR Outputs | Provides flexible connectivity to legacy equipment |
| Low-Profile Design | Allows discreet ceiling or wall mounting |
| Intelligent Interference Avoidance | Maintains stable connections in challenging RF environments |
| Specification | Details |
|---|---|
| Product Type | Wireless Access Point Transceiver |
| Wireless Bands | 2.4 GHz and 5 GHz dual-band |
| Maximum Delegate Units | 125 |
| Audio Quality | 24-bit / 48 kHz digital audio |
| Encryption | AES-128 |
| Networking | Dante / AES67 |

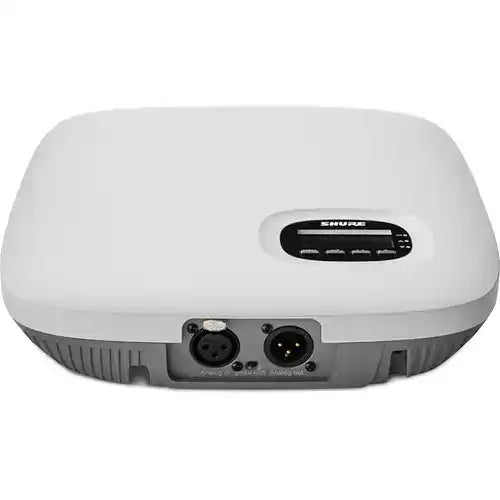

| Outputs | 2 x balanced XLR + Dante |
| Power Requirement | Included power supply (100–240 V AC) or PoE+ |

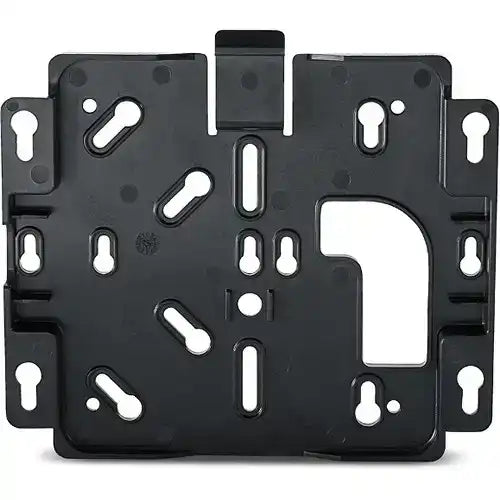

| Mounting | Ceiling or wall mount |
| Applications | Boardrooms, council chambers, conference centers |
| Compatibility | Microflex Complete Wireless delegate units |
| Aspect | Shure MXCWAPT-PS | Shure MXCWAPT | Typical Analog Conference System |
|---|---|---|---|
| Wireless Bands | Dual-band (2.4/5 GHz) | Dual-band (2.4/5 GHz) | Single band or wired |
| Maximum Units | 125 | 125 | Limited |
| Encryption | AES-128 | AES-128 | None or basic |
| Networked Audio | Dante / AES67 | Dante / AES67 | Analog only |
| Power Supply | Included AC power supply | PoE+ or 24 V DC | External power |
| Primary Use | Large wireless conferencing | Large wireless conferencing | Traditional wired systems |
FAQ
- What is the maximum number of delegate units supported? The MXCWAPT-PS supports up to 125 delegate units in a single system.
- Does it include a power supply? Yes, this PS variant comes with an included AC power supply for convenient operation.
- Is Dante networking included? Yes, it provides Dante/AES67 digital audio output for modern AV integration.
- How does it handle interference? It uses automatic frequency coordination and intelligent interference avoidance across dual bands.
- Can it be mounted on the ceiling? Yes, its low-profile design allows discreet ceiling or wall mounting.
- Is encryption supported? Yes, AES-128 encryption secures all wireless audio and control signals.
