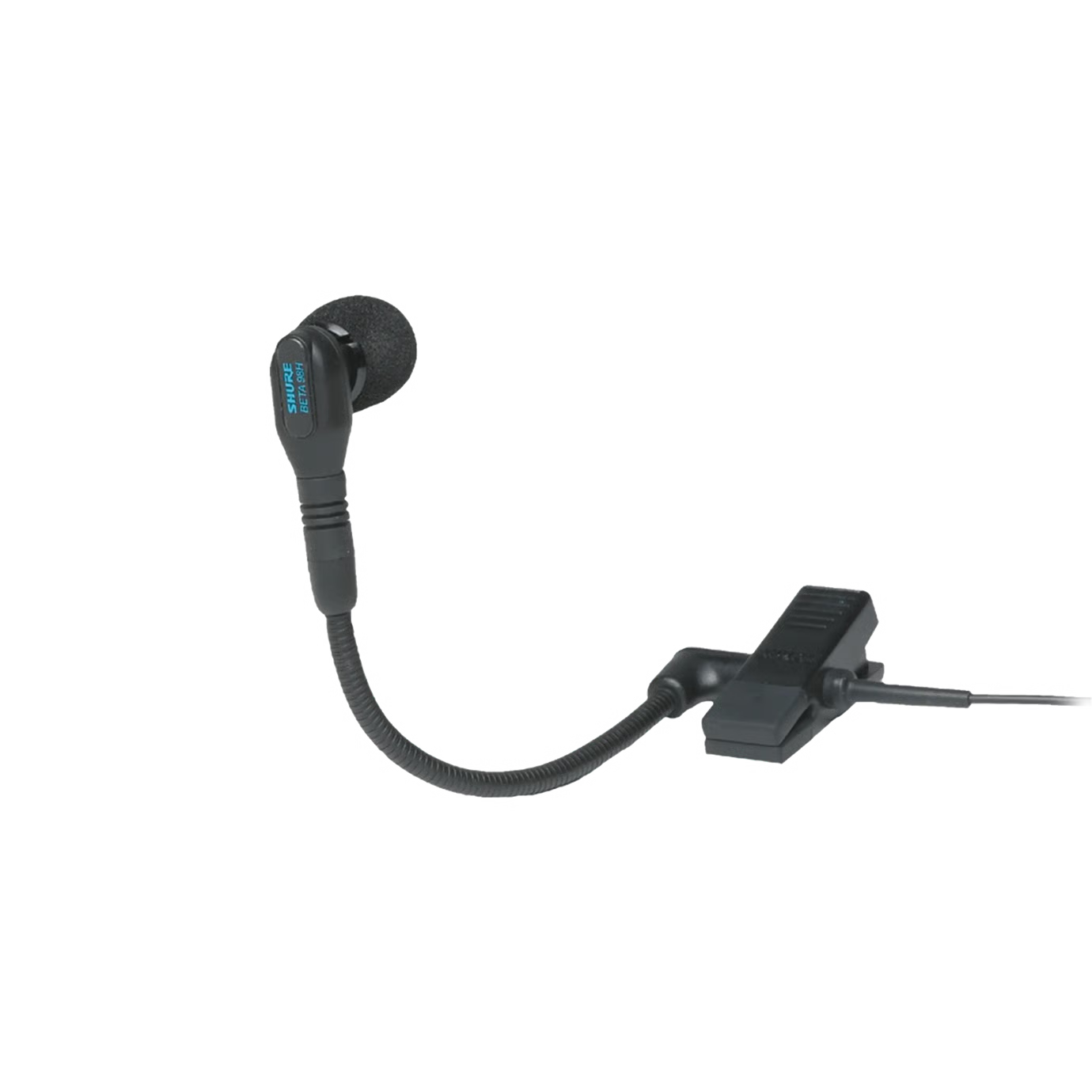

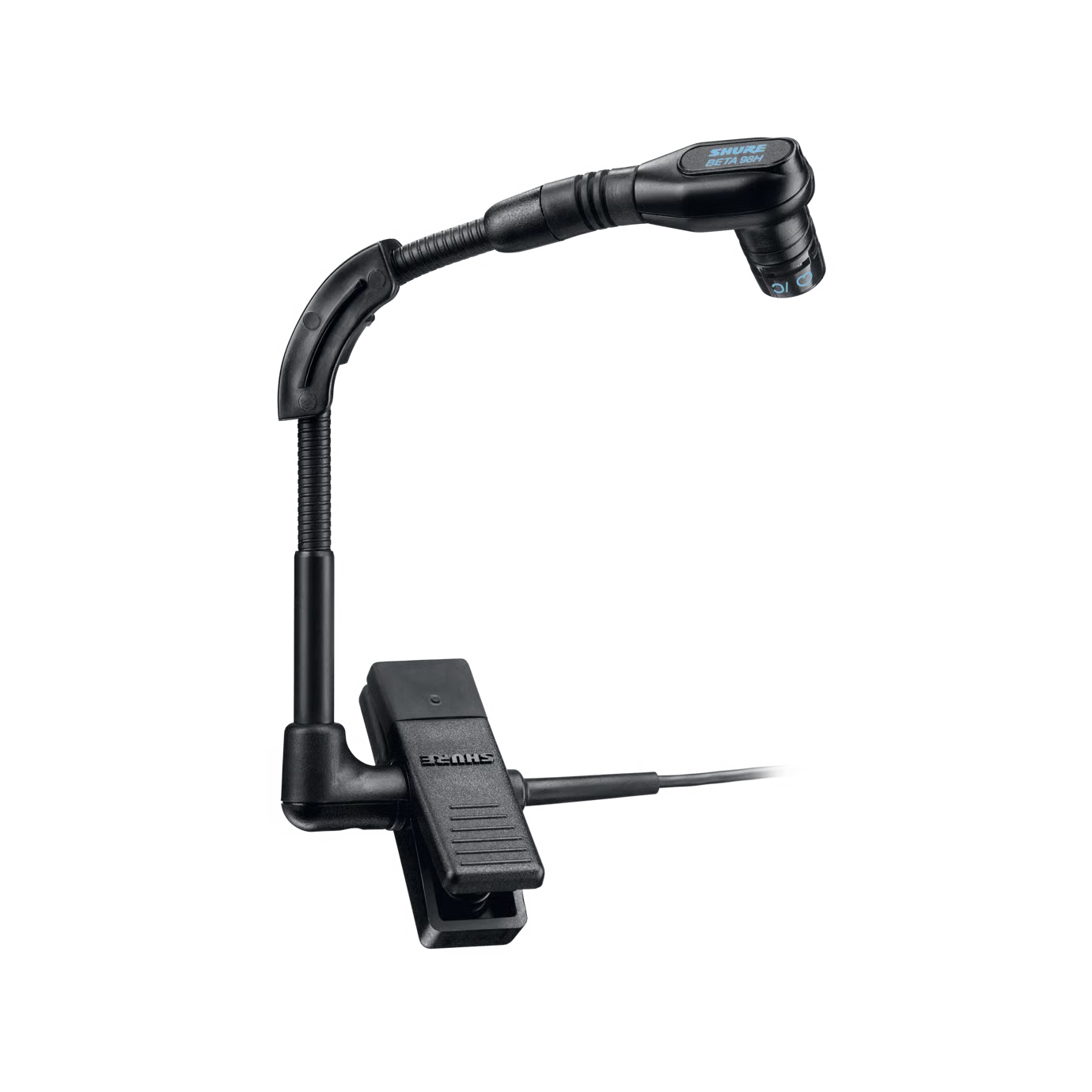

Shure WB98H/C BETA 98H/C Miniature Instrument Microphone (Cardioid)
The Shure WB98H/C BETA 98H/C is a miniature cardioid condenser microphone designed for professional instrument miking in live performance and studio applications. It features a high SPL handling capability and a tailored frequency response optimized for brass, woodwinds, drums, and percussion. The cardioid polar pattern provides excellent off-axis rejection, minimizing bleed from other instruments on stage while delivering clear, detailed sound.
The microphone includes an integrated gooseneck and ratcheting swivel joint for precise, stable positioning directly on the instrument. A detachable 1.6 m (5.3 ft) lightweight cable with TA4F connector allows easy connection to Shure wireless bodypack transmitters. The rugged construction and low-profile design make it ideal for touring and installed sound systems where space is limited and reliable performance is essential.
| Feature | Benefit |
|---|---|
| Cardioid Polar Pattern | Provides excellent off-axis rejection and reduces bleed from other instruments |
| Tailored Frequency Response | Optimized for clear, detailed reproduction of brass, woodwinds, drums, and percussion |
| High SPL Handling | Captures loud instruments without distortion |
| Integrated Gooseneck and Ratcheting Swivel Joint | Allows precise and stable positioning directly on the instrument |
| Detachable Lightweight Cable | Enables easy connection to wireless bodypack transmitters |
| Rugged Low-Profile Design | Withstands touring demands while remaining discreet on stage |
| TA4F Connector | Direct compatibility with Shure wireless bodypack systems |
| Specification | Details |
|---|---|
| Microphone Type | Miniature Cardioid Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –56 dBV/Pa (1.6 mV) at 1 kHz |
| Maximum SPL | 155 dB SPL (1 kHz at 1% THD) |
| Self Noise | 31 dB SPL-A (typical) |
| Connector | TA4F (Mini-XLR 4-Pin Female) |
| Cable Length | 1.6 m (5.3 ft) |
| Color | Black |
| Weight | 65 g (2.3 oz) including cable |
| Included Accessories | 2 snap-fit windscreen, gooseneck, ratcheting swivel joint, cable |
| Aspect | Shure WB98H/C BETA 98H/C | Shure SM57 | Shure Beta 57A |
|---|---|---|---|
| Microphone Type | Miniature Condenser | Dynamic | Dynamic |
| Polar Pattern | Cardioid | Cardioid | Supercardioid |
| Frequency Response | 20 Hz – 20 kHz | 40 Hz – 15 kHz | 50 Hz – 16 kHz |
| SPL Handling | 155 dB | High | High |
| Mounting | Integrated gooseneck + swivel | Standard clip | Standard clip |
| Primary Use | Brass, woodwinds, drums, percussion | General instrument | Instrument with high gain |
| Cable | Detachable TA4F | None (wired) | None (wired) |
FAQ
- What instruments is the WB98H/C best suited for? It is optimized for brass, woodwinds, drums, and percussion in live and studio settings.
- Does it require phantom power? When used wired, it requires 11–52 V phantom power; in wireless mode, it connects directly to Shure bodypack transmitters.
- Is the cable detachable? Yes, the 1.6 m lightweight cable with TA4F connector is detachable for easy setup and replacement.
- How is it mounted on an instrument? The integrated gooseneck and ratcheting swivel joint allow precise and stable positioning directly on the instrument.
- Is a windscreen included? Yes, two snap-fit windscreens are included to reduce wind and breath noise.
- Is it suitable for touring? Yes, its rugged construction and low-profile design make it reliable for professional live performance and touring.
