Shure ULXD4DGV=-G57

Product Overview

The Shure ULXD4DGV is a dual-channel digital wireless receiver built for commercial and government AV installation projects that need two channels of secure wireless microphone reception in a single rack space. This ULX-D digital wireless receiver installation pairs 24-bit/48kHz digital audio with Dante networked audio over Ethernet, giving AV integrators a wireless receiver that fits into an existing Dante audio network without a separate analog snake. It is designed for AV system designers specifying wireless microphone systems for boardrooms, government spaces, and commercial meeting spaces where RF stability and always-on encryption both matter.

Product Description

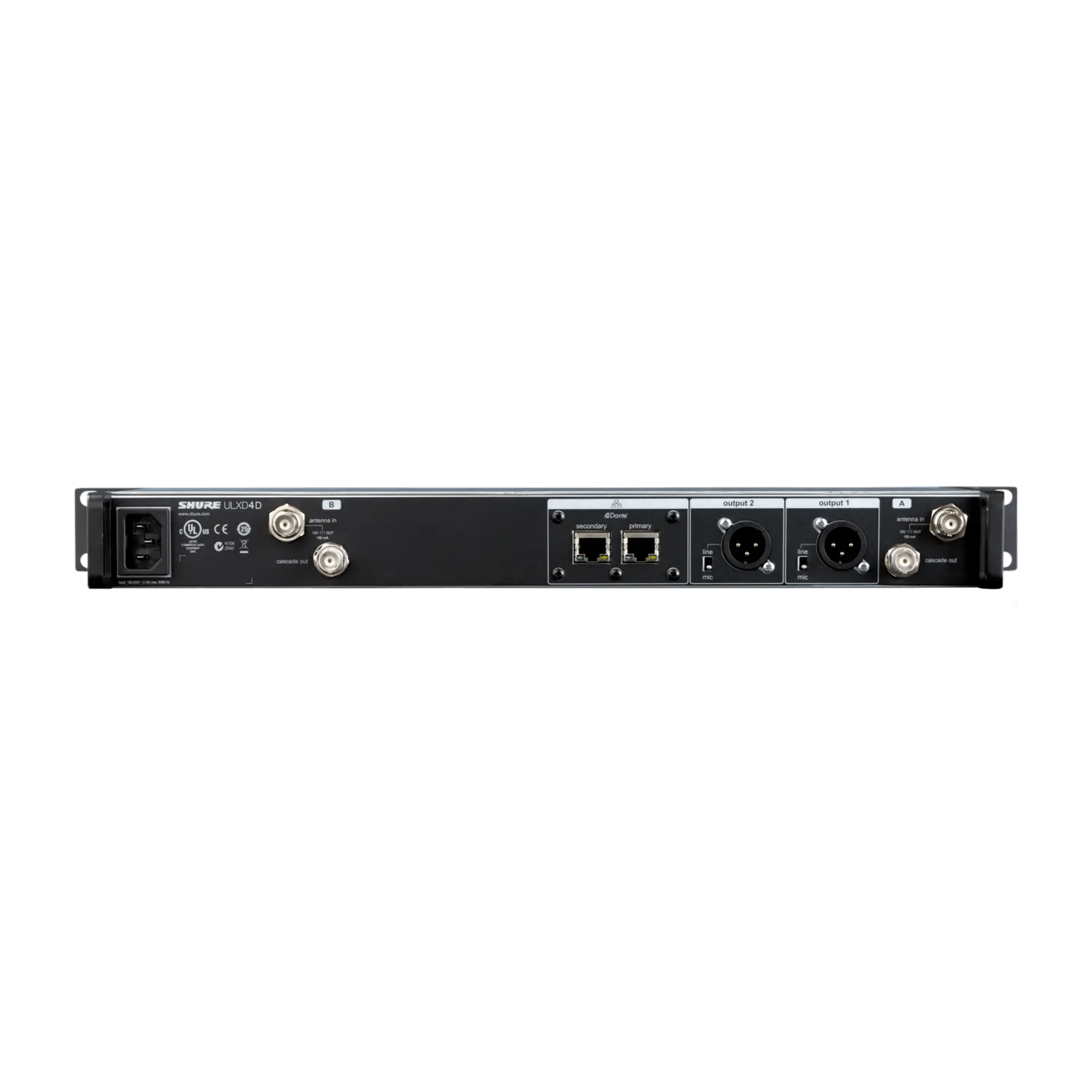

The ULXD4DGV houses two independent receivers in a single rugged, all-metal 1RU chassis, each with its own audio and RF meters, gain control, and receiver outputs that can be run direct or summed for flexible signal routing. Wide-tuning frequency bands extend up to 166 MHz of range (region dependent), giving integrators more usable spectrum when coordinating frequencies across multiple wireless channels in a commercial AV deployment.

Dante digital networked audio lets multiple channels of audio travel over a single Ethernet cable, simplifying cable runs in a wireless receiver installation compared to running individual XLR lines back to a DSP or mixer. RF cascade ports and two Ethernet ports let integrators network multiple ULXD4DGV units together for simplified frequency coordination across larger deployments, and Wireless Workbench software integration adds centralized coordination, monitoring, and control across a full wireless system. High-Density mode can be enabled to increase the number of available open frequencies when more compatible channels are needed over shorter distances.

As a GV-variant receiver, the ULXD4DGV is positioned for government and security-critical deployments where always-on AES-256 encryption is a hard requirement rather than an optional feature; encryption cannot be disabled on this platform. The ULXD4DGV also supports AMX/Crestron control and Yamaha device ID for simplified channel patching, so it integrates into existing third-party AV control and mixing console ecosystems used across government and corporate facilities.

Key Features

• Dual-Channel Digital Reception — Two independent receivers in a single rugged 1RU metal chassis with individual gain, meters, and outputs.
• Always-On AES-256 Encryption — Protects confidential audio content and cannot be disabled, suited to government and security-critical deployments.
• 24-Bit/48kHz Digital Audio — Delivers pristine digital audio quality for commercial sound reinforcement and conferencing applications.
• Dante Networked Audio — Transmits multiple channels of audio over a single Ethernet cable for simplified cable runs.
• Wide-Tuning Frequency Bands — Up to 166 MHz of tuning range (region dependent) for flexible frequency coordination.
• RF Cascade and Ethernet Networking — Distributes RF signal and networks multiple receivers together for larger deployments.
• Wireless Workbench Integration — Centralized coordination, monitoring, and control across a full wireless system.
• AMX/Crestron and Yamaha Compatibility — Integrates with third-party AV control systems and mixing consoles.

Typical Applications

• Government space
• Boardroom
• Conference room
• Training room
• Auditorium
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

How does the ULXD4DGV differ from the standard ULXD4D?
The ULXD4DGV is Shure's GV security variant, built specifically for government and security-critical deployments where always-on encryption is a mandatory requirement.

Can encryption be disabled on this receiver?
No. AES-256 encryption is always active on the ULXD4DGV and cannot be turned off.

Is the ULXD4DGV compatible with Dante audio networks?
Yes. It transmits digital audio over Dante, allowing multiple channels to run over a single Ethernet cable into an existing Dante network.

Can multiple ULXD4DGV units be networked together?
Yes. RF cascade ports and Ethernet networking allow multiple receivers to be networked for simplified frequency coordination in larger deployments.

Does this receiver integrate with third-party AV control systems?
Yes. The ULXD4DGV supports AMX/Crestron control and Yamaha device ID for simplified integration and channel patching.

What warranty applies to the ULXD4DGV?
Shure covers the ULXD4DGV under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.

Does Creation Networks provide frequency coordination and security compliance support?
Yes, our AV consultants can assist with frequency planning, Dante network configuration, and system design for government and security-critical ULX-D wireless deployments.
