Shure ULXD2/N8SB=-G57
Product Overview

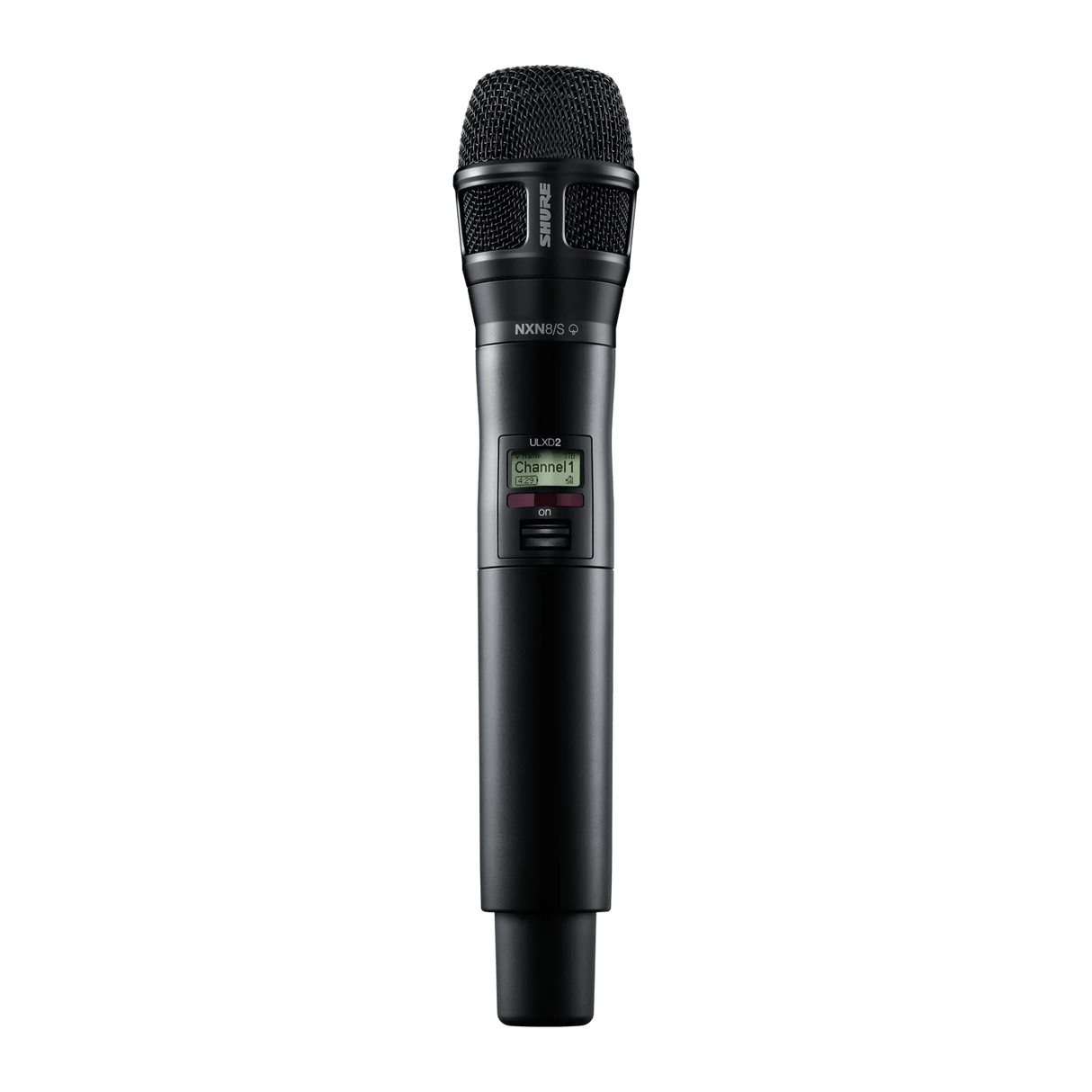

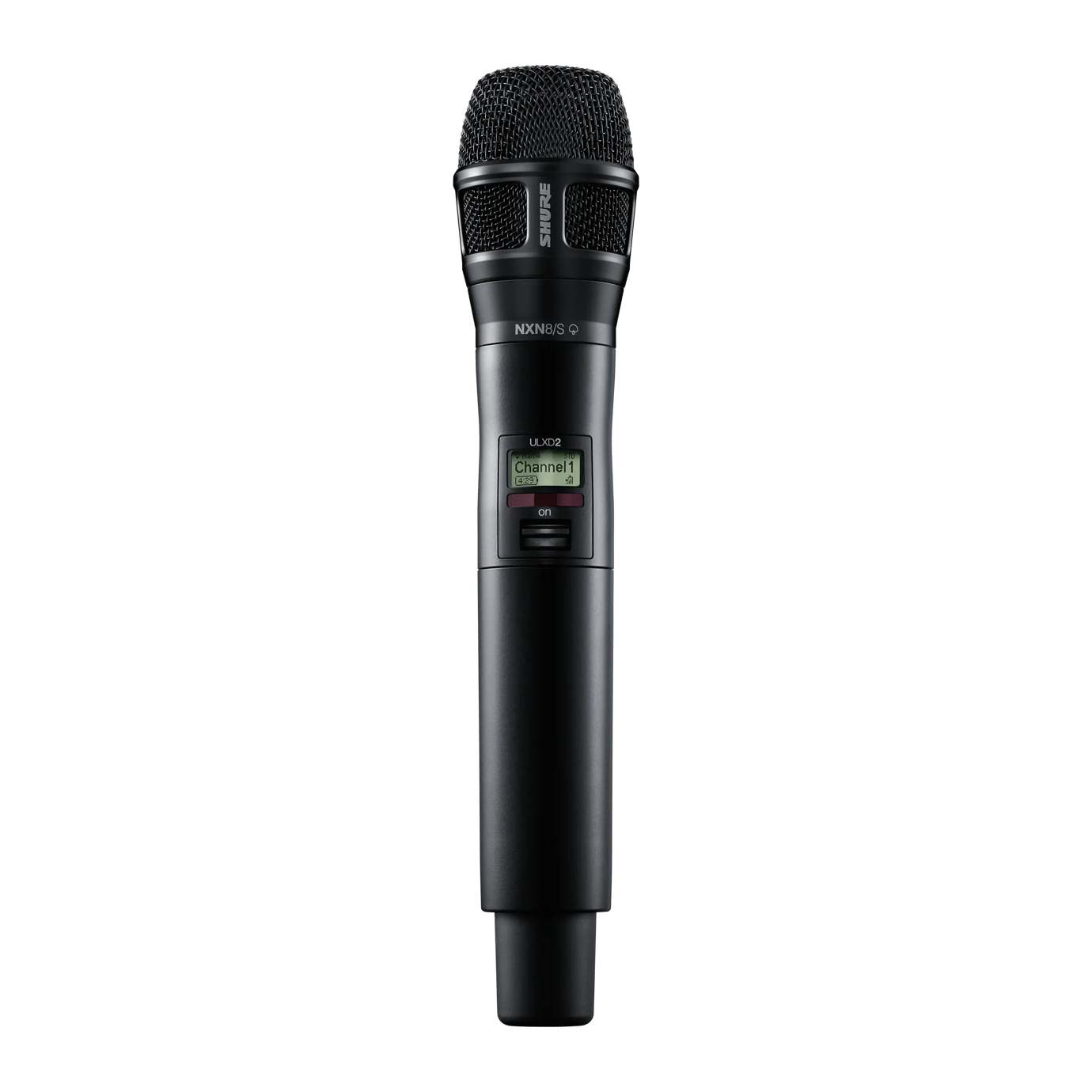

The Shure ULXD2/N8SB is a digital handheld wireless transmitter built around the Nexadyne 8/S supercardioid dynamic capsule, designed for commercial AV installation projects that want tighter pattern control and condenser-like clarity with the RF performance of the ULX-D platform. This ULX-D digital wireless handheld transmitter delivers AES 256-bit encryption and a 330-foot operating range, giving AV integrators a secure handheld option for auditoriums, government facilities, and performance venues with monitors or reflective surfaces.
Product Description
The ULXD2/N8SB pairs Shure's ULX-D digital wireless platform with the Nexadyne 8/S capsule, a supercardioid dynamic microphone using Shure's Revonic dual-transducer design, which combines two separate but interdependent sets of diaphragms, voice coils, and magnets to deliver condenser-like clarity with a tighter pickup pattern than a cardioid capsule. The transmitter delivers 24-bit/48kHz digital audio with a 20 Hz to 20 kHz frequency response (±1 dB) and greater than 120 dB of A-weighted dynamic range.
Selectable RF power of 1, 10, or 20 mW lets integrators balance battery life against range and interference rejection, and image rejection greater than 70 dB helps maintain a clean RF signal in dense wireless environments. AES 256-bit encryption protects transmitted audio for confidential meetings or security-sensitive AV integration projects, and the transmitter's cast aluminum housing is built for durable daily use. Battery runtime is rated at under 12 hours at 10 mW using a Shure SB900A rechargeable battery.
Key Features
- Nexadyne 8/S Supercardioid Capsule — Revonic dual-transducer design delivers condenser-like clarity with tighter pattern control.
- AES 256-Bit Encryption — Protects transmitted audio for security-sensitive AV installations.
- 330-Foot Operating Range — Reliable RF coverage for typical commercial AV spaces.
- Selectable RF Power — 1, 10, or 20 mW settings balance range, battery life, and interference rejection.
- 24-Bit/48kHz Digital Audio — 20 Hz–20 kHz frequency response and >120 dB dynamic range.
- Cast Aluminum Housing — Durable construction for daily commercial AV use.
Typical Applications
- Auditorium
- Government space
- House of worship
- Broadcast studio
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Capsule | Nexadyne 8/S supercardioid dynamic (Revonic dual-transducer design) |
| Operating Range | 330 ft (100 m) |
| RF Power | Selectable 1 mW, 10 mW, 20 mW |
| Image Rejection | >70 dB, typical |
| Battery Runtime | <12 hours at 10 mW using Shure SB900A |
| Audio Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Dynamic Range | >120 dB, A-weighted |
| THD | <0.01% |
| Encryption | AES 256-bit |
Frequently Asked Questions
What receiver does the ULXD2/N8SB pair with?
The ULXD2/N8SB pairs with compatible ULX-D receivers such as the ULXD4, ULXD4D, or ULXD4Q series on a matching frequency band.
How does the Nexadyne 8/S differ from the 8/C?
The Nexadyne 8/S uses a supercardioid pattern, tighter than the Nexadyne 8/C's cardioid pattern, for improved gain-before-feedback in rooms with monitors or reflective surfaces.
Is encryption always active?
AES 256-bit encryption is available on the ULXD2/N8SB for secure transmission in confidential or security-sensitive environments.
How long does the battery last?
Battery runtime is rated at under 12 hours at 10 mW RF power using a Shure SB900A rechargeable battery.
What warranty applies to this transmitter?
Shure covers the ULXD2/N8SB under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
