Shure ULXD2/K9=-G57
Shure ULXD2/K9=-G57 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure ULXD2/K9=-G57
Product Overview

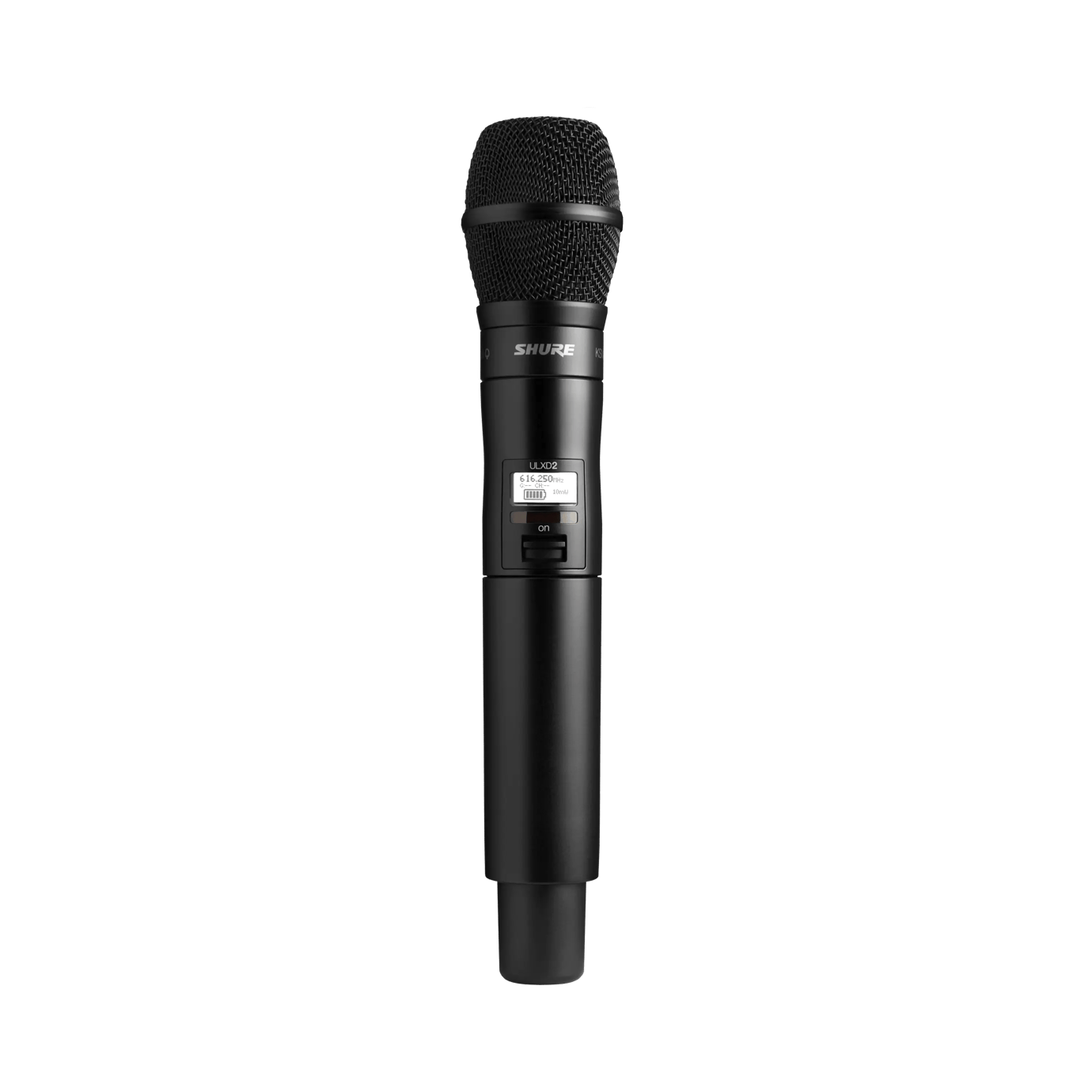

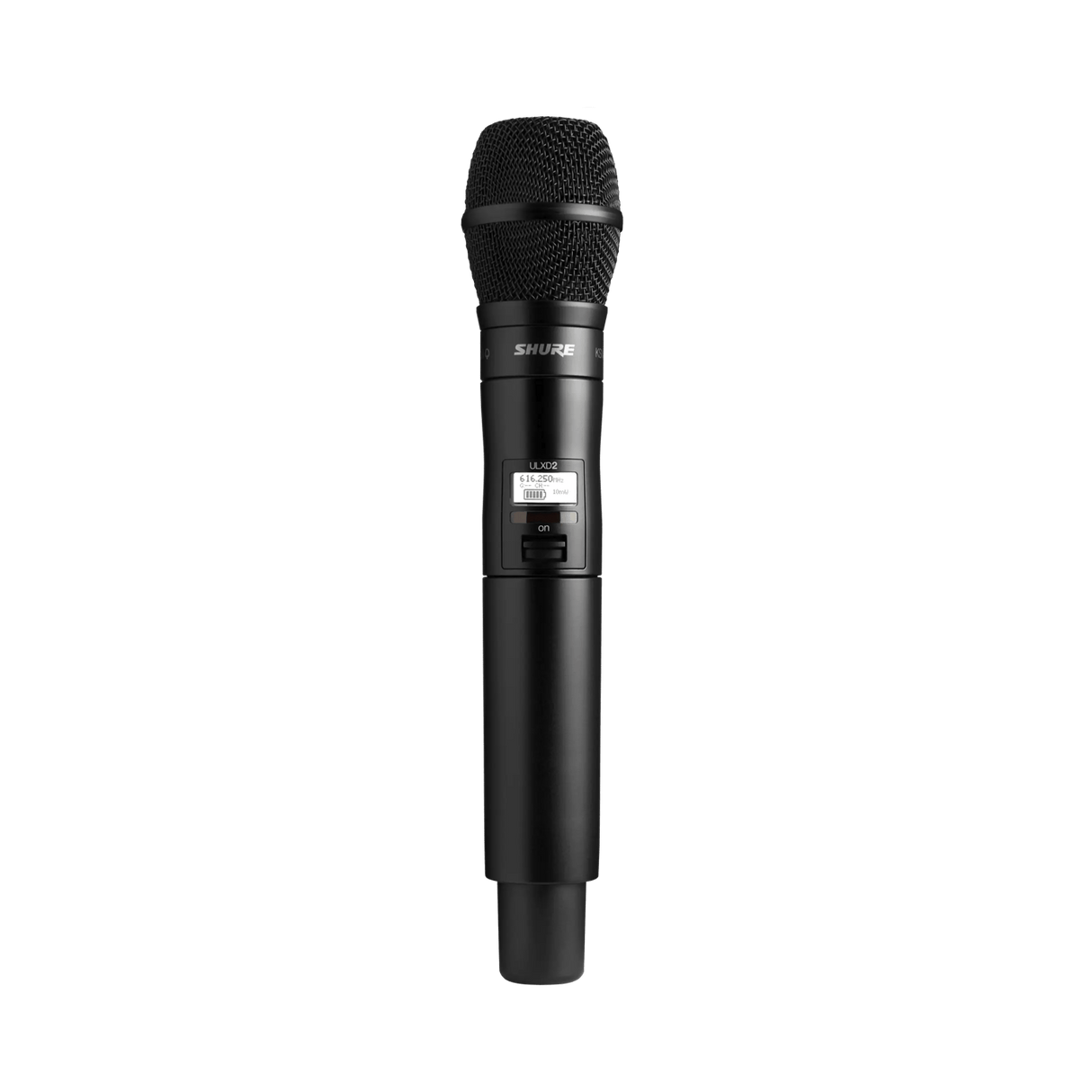

The Shure ULXD2/K9 is a digital handheld wireless transmitter built around the KSM9 switchable condenser capsule, designed for commercial AV installation projects that want a professional vocal microphone with adjustable polar pattern and the RF performance of the ULX-D platform. This ULX-D digital wireless handheld transmitter delivers AES 256-bit encryption and a 330-foot operating range, giving AV integrators a secure handheld option for auditoriums, government facilities, and performance venues.
Product Description
The ULXD2/K9 pairs Shure's ULX-D digital wireless platform with the KSM9 capsule, a condenser microphone with two voice-matched cartridges that let performers switch between cardioid and supercardioid polar patterns to suit the room or performance style. The transmitter delivers 24-bit/48kHz digital audio with a 20 Hz to 20 kHz frequency response (±1 dB) and greater than 120 dB of A-weighted dynamic range.
Selectable RF power of 1, 10, or 20 mW lets integrators balance battery life against range and interference rejection, and image rejection greater than 70 dB helps maintain a clean RF signal in dense wireless environments. AES 256-bit encryption protects transmitted audio for confidential meetings or security-sensitive AV integration projects, and the transmitter's cast aluminum housing is built for durable daily use. Battery runtime is rated at under 12 hours at 10 mW using a Shure SB900A rechargeable battery.
Key Features
- KSM9 Switchable Condenser Capsule — Two voice-matched cartridges switch between cardioid and supercardioid patterns.
- AES 256-Bit Encryption — Protects transmitted audio for security-sensitive AV installations.
- 330-Foot Operating Range — Reliable RF coverage for typical commercial AV spaces.
- Selectable RF Power — 1, 10, or 20 mW settings balance range, battery life, and interference rejection.
- 24-Bit/48kHz Digital Audio — 20 Hz–20 kHz frequency response and >120 dB dynamic range.
- Cast Aluminum Housing — Durable construction for daily commercial AV use.
Typical Applications
- Auditorium
- Government space
- House of worship
- Broadcast studio
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Capsule | KSM9 condenser, switchable cardioid/supercardioid |
| Operating Range | 330 ft (100 m) |
| RF Power | Selectable 1 mW, 10 mW, 20 mW |
| Image Rejection | >70 dB, typical |
| Battery Runtime | <12 hours at 10 mW using Shure SB900A |
| Audio Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Dynamic Range | >120 dB, A-weighted |
| THD | <0.01% |
| Encryption | AES 256-bit |
Frequently Asked Questions
What receiver does the ULXD2/K9 pair with?
The ULXD2/K9 pairs with compatible ULX-D receivers such as the ULXD4, ULXD4D, or ULXD4Q series on a matching frequency band.
Can the polar pattern be changed on this capsule?
Yes. The KSM9 capsule uses two voice-matched cartridges that can be switched between cardioid and supercardioid patterns.
Is encryption always active?
AES 256-bit encryption is available on the ULXD2/K9 for secure transmission in confidential or security-sensitive environments.
How long does the battery last?
Battery runtime is rated at under 12 hours at 10 mW RF power using a Shure SB900A rechargeable battery.
What warranty applies to this transmitter?
Shure covers the ULXD2/K9 under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
