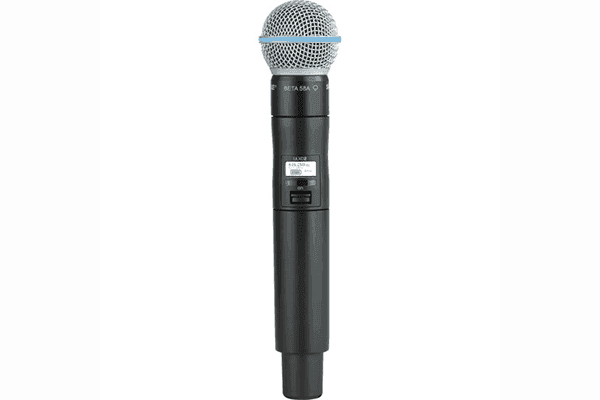

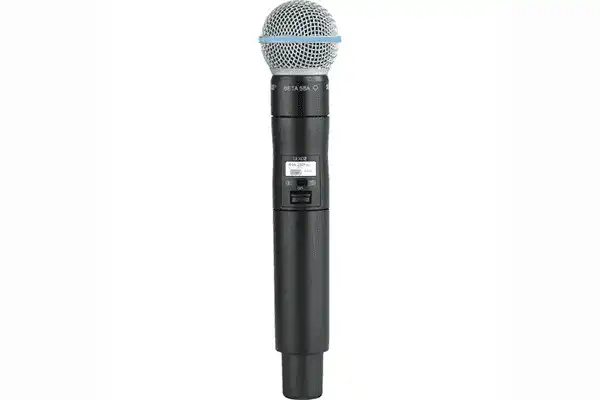

Shure ULXD2-B58 Digital Handheld Wireless Microphone Transmitter with Beta 58A Capsule - (G50: 470 to 534 MHz)

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ULXD2/B58=-G50
No reviews
Price:
$714.00 $1,000.00

Description

The Shure ULXD2/B58 is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with a Beta 58A dynamic capsule designed for close-up vocals, with brightened midrange and bass roll-off to control proximity effect. The capsule features a supercardioid polar pattern that ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration.

With a rugged, yet lightweight aluminum housing, the ULXD2/B58 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
  • The Beta 58A features a neodymium magnet for high signal-to-noise output
  • The hardened steel-mesh grille resists wear and abuse
  • The interchangeable capsule design allows you to replace the Beta 58A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, KSM8, SM58, SM86, SM87A, Beta 87A, Beta 87C capsules, and more.

User-Friendly Features in a Rugged Housing
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • The power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 0.25/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Convenient Power Management Options
  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.
  • For ULX-D and QLX-D Digital Systems
  • Beta 58A Dynamic Supercardioid Mic
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Shure ULXD2 Specs
Wireless Technology Digital UHF
RF Frequency Band G50: 470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Max Transmitters per Band 1
Built-In Recorder No
Timecode Support No
Mobile App Compatible No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 1 / 10 / 20 mW (Switchable)
Audio I/O None
Included Cable Connector None
Muting Off/On Switch
Auto-Level Control No
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.9 x 2" / 278 x 51 mm
Weight 12.3 oz / 348 g
Microphone
Microphone Type Handheld Capsule
Color Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Frequency Range 50 Hz to 16 kHz
Sensitivity -51 dBV/Pa at 1 kHz
Packaging Info
Package Weight 1.435 lb
Box Dimensions (LxWxH) 12.75 x 5.05 x 3.55"
