Shure ULXD1LEMO3=-G57
Product Overview

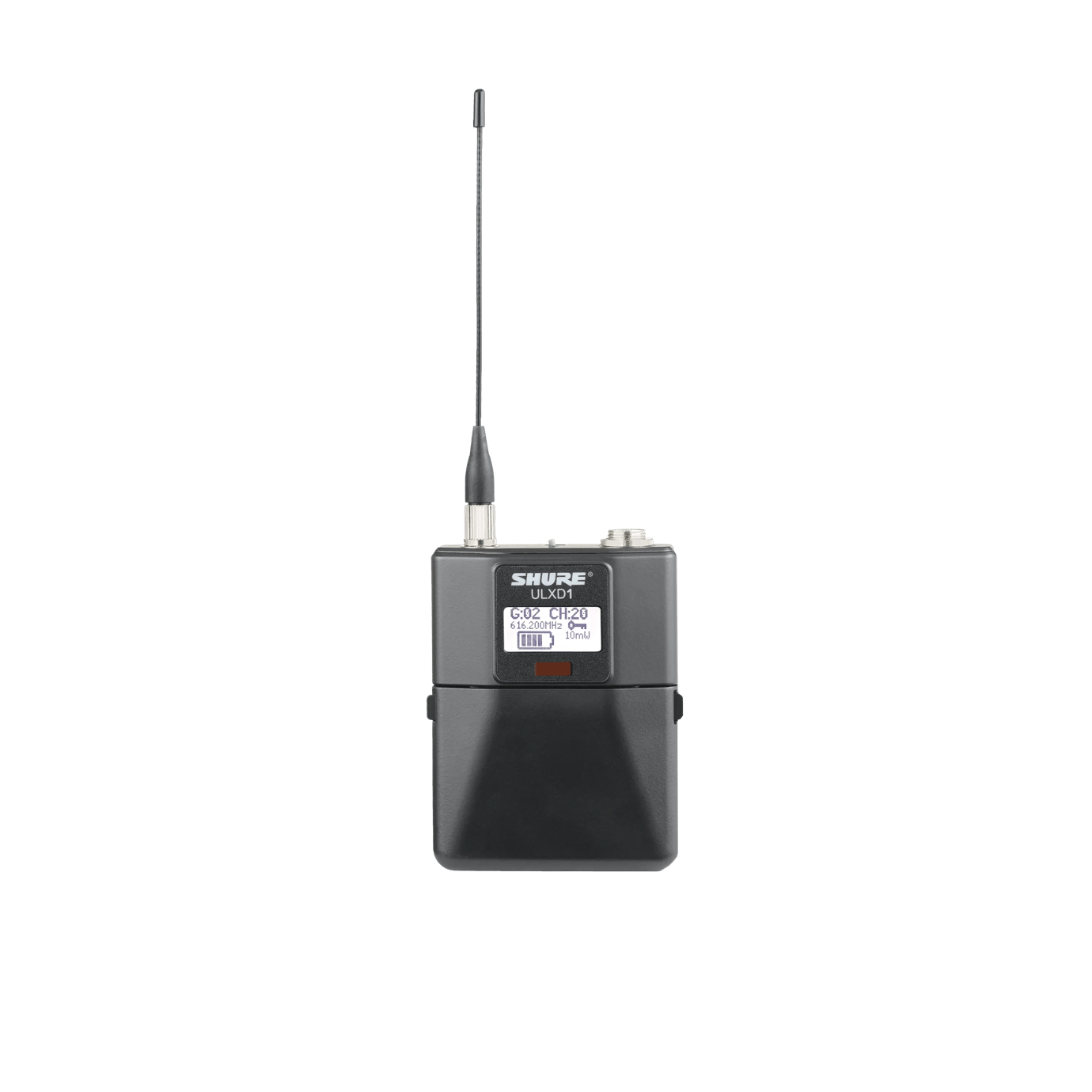

The Shure ULXD1LEMO3 is a digital bodypack transmitter built for commercial AV installation projects that need a secure LEMO3 microphone connector instead of the standard TA4M connector. This ULX-D digital wireless bodypack transmitter installation delivers AES 256-bit encryption and a 330-foot operating range, giving AV integrators a premium bodypack option for presenters and performers in corporate, government, and house of worship settings. It ships without a microphone capsule, letting integrators fit a lavalier, headset, or instrument cable with a compatible LEMO3 connector.
Product Description
The ULXD1LEMO3 delivers 24-bit/48kHz digital audio with a 20 Hz to 20 kHz frequency response (±1 dB) and greater than 120 dB of A-weighted dynamic range, giving it audio headroom suited to both speech and music applications. Selectable RF power of 1, 10, or 20 mW lets integrators balance battery life against range and interference rejection, and image rejection greater than 70 dB helps maintain a clean RF signal in dense wireless environments.
AES 256-bit encryption is available on the ULXD1LEMO3, protecting transmitted audio for confidential meetings, government proceedings, or other security-sensitive AV integration projects. The transmitter's cast aluminum housing is built for durable daily use, and battery runtime is rated at under 12 hours at 10 mW using a Shure SB900A rechargeable battery. The LEMO3 connector accepts compatible lavalier, headset, and instrument cables using that connector standard, which some integrators prefer for its secure locking design over TA4M.
Key Features
- LEMO3 Microphone Connector — Secure locking connector alternative to the standard TA4M input.
- AES 256-Bit Encryption — Protects transmitted audio for security-sensitive AV installations.
- 330-Foot Operating Range — Reliable RF coverage for typical commercial AV spaces.
- Selectable RF Power — 1, 10, or 20 mW settings balance range, battery life, and interference rejection.
- 24-Bit/48kHz Digital Audio — 20 Hz–20 kHz frequency response and >120 dB dynamic range.
- Cast Aluminum Housing — Durable construction for daily commercial AV use.
Typical Applications
- Government space
- House of worship
- Auditorium
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Connector | LEMO3 (microphone sold separately) |
| Operating Range | 330 ft (100 m) |
| RF Power | Selectable 1 mW, 10 mW, 20 mW |
| Image Rejection | >70 dB, typical |
| Battery Runtime | <12 hours at 10 mW using Shure SB900A |
| Audio Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Dynamic Range | >120 dB, A-weighted |
| THD | <0.01% |
| Housing | Cast aluminum, 3.4 x 2.6 x 0.9 in (86 x 66 x 23 mm), 0.3 lbs (142 g) without antenna |
| Encryption | AES 256-bit |
Frequently Asked Questions
Does the ULXD1LEMO3 include a microphone?
No. The ULXD1LEMO3 is a bodypack transmitter sold without a capsule; a compatible LEMO3-connector lavalier, headset, or instrument cable must be purchased separately.
Why choose the LEMO3 connector over TA4M?
LEMO3 is a secure locking connector standard some integrators prefer over TA4M for its connection reliability during active use.
What receiver does the ULXD1LEMO3 pair with?
The ULXD1LEMO3 pairs with compatible ULX-D receivers such as the ULXD4, ULXD4D, or ULXD4Q series on a matching frequency band.
How long does the battery last?
Battery runtime is rated at under 12 hours at 10 mW RF power using a Shure SB900A rechargeable battery.
What warranty applies to this transmitter?
Shure covers the ULXD1LEMO3 under its standard manufacturer warranty. Contact Creation Networks for current terms and AV integration support.
