Shure UABIAST In-Line Power Supply with PS23US – 12V DC Bias Power Over BNC Coaxial Cable
Shure UABIAST In-Line Power Supply with PS23US – 12V DC Bias Power Over BNC Coaxial Cable is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure UABIAST In-Line Power Supply with PS23US – 12V DC Bias Power ...

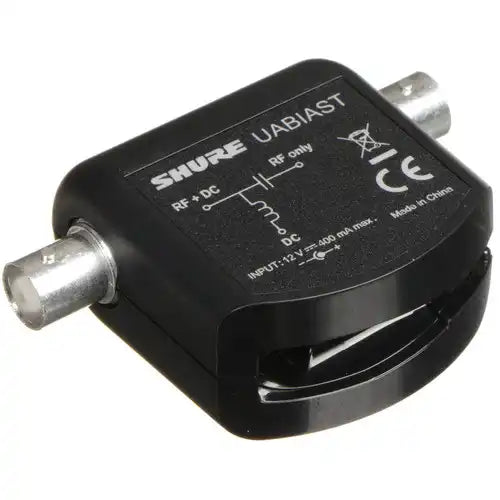

The Shure UABIAST In-Line Power Supply is designed to provide 12V DC bias power over BNC coaxial cable to active antennas or in-line devices when a wireless receiver's antenna input jack does not supply the necessary power. This in-line adapter ensures seamless RF signal transmission while supplying power to up to three connected accessories, such as the UA830 in-line antenna amplifier or the UA874 active antenna.
Included with the UABIAST is the Shure PS23US power supply, which delivers the required 12V DC power. The unit features a BNC female connector, 50Ω impedance, and operates within a frequency range of 400 to 1000 MHz. Its compact design and lightweight construction make it an ideal solution for professional audio setups requiring reliable power delivery to wireless components.
With an insertion loss of less than 1 dB and a maximum input power of 12.4V DC at 400mA, the UABIAST ensures minimal signal degradation and efficient power distribution. Its operating temperature range of 45°F to 100°F (7°C to 38°C) allows for versatile use in various environments.
Features Chart
|
Feature |
Benefit |
|
12V DC Bias Power |
Supplies necessary power to active antennas and in-line devices |
|
BNC Female Connector |
Ensures secure and reliable RF signal connection |
|
Supports Up to Three Devices |
Powers multiple accessories simultaneously |
|
Insertion Loss <1 dB |
Maintains signal integrity with minimal loss |
|
Includes PS23US Power Supply |
Provides the required power source for operation |
Specifications Table
|
Specification |
Detail |
|
Bias Voltage |
12V DC |
|
Maximum Input Power |
12.4V DC, 400mA |
|
Insertion Loss |
<1 dB |
|
Connector Type |
BNC Female |
|
Impedance |
50Ω |
|
Frequency Range |
400 to 1000 MHz |
|
Operating Temperature |
45°F to 100°F (7°C to 38°C) |
|
Dimensions |
1.0 x 2.6 x 1.9 inches (25.5 x 67.0 x 49.0 mm) |
|
Weight |
2 oz (49 g) |
|
Included Power Supply |
Shure PS23US |
