Description

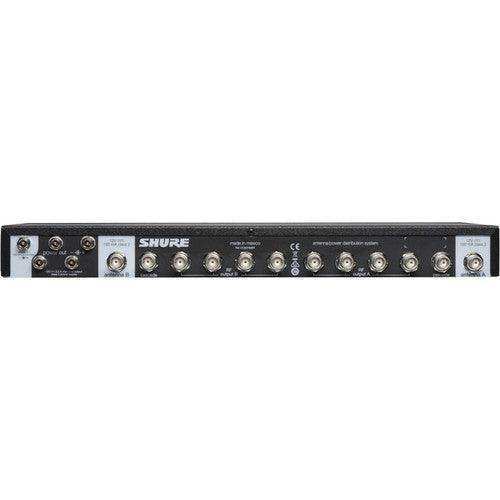

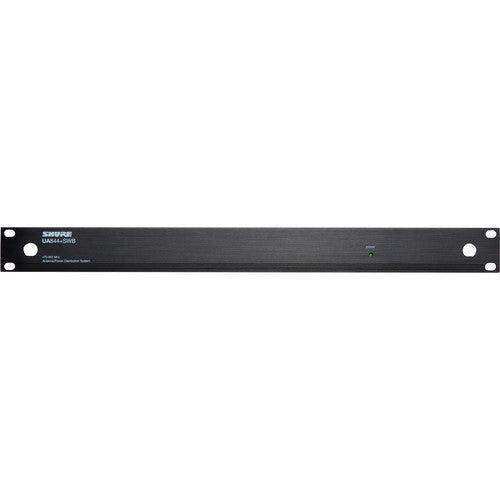

The UA844+SWB/LC Wideband Antenna Distribution System & No Antenna Cables from Shure is for the expansion of a Shure wireless microphone system. It can be used to split one pair of antennas to multiple receivers and amplify the RF signal to compensate for the insertion loss.

A single UA844+SWB/LC option comes with four push-on DC cables and no antenna cables. It is recommended for use with the BLXR, SLX, and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC to BNC antenna cables supplied with each BLXR, SLX, and QLX-D wireless system.

In addition, a single UA844+ system can support up to five wireless receivers and a maximum of five UA844+ systems may be used in a two-tiered configuration.

  • Five-Way RF Signal Output
  • For QLX-D, SLX & BLXR Receivers
  • Front-Mounting Antenna Hardware
  • 4 Power Feeds for 15 VDC Receivers
  • Outputs for Antenna Bias (12 VDC, 300mA)

Shure UA844 Specs
Power Requirements 14 to 18 VDC
DC Output 4x 14 to 18 VDC
Output Current Combined Total from All DC Outputs
2.5 A, maximum
Operating Temperature Range 0 to 145°F (-18 to 63°C)
RF Input Specs
Connector Type BNC
RF Frequency Range 470-960 MHz
Bias Voltage(s) 2x 15 VDC (150 mA, maximum)
Impedance 50 Ohms
RF Output Specs
RF Frequency Range 470-960 MHz
Output Intercept Point 21 dBm, typical
Connector Type BNC
Impedance 50 Ohms
Output Connector Isolation 30 dB, typical
Gain Input to Any Output Port (unused ports terminated in 50 Ohms)
-1 to +1 dB
Dimensions 1.8 x 19 x 6.8" (45 x 483 x 172 mm)
Weight 3.6 lb (1.62 kg)
Packaging Info
Package Weight 9.05 lb
Box Dimensions (LxWxH) 23 x 16.2 x 3.9"
