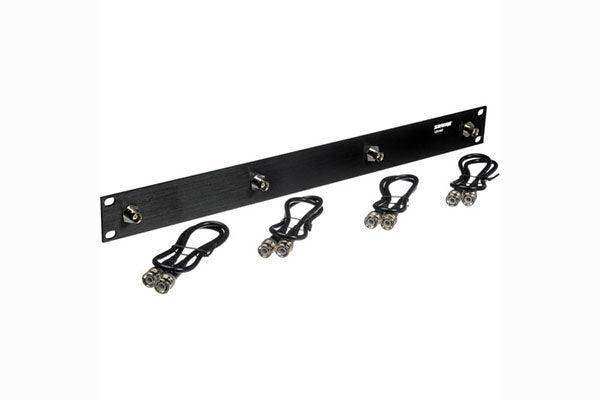

Shure UA440 Front Mount Antenna Rack Kit for Wireless Receivers

Product Overview

The Shure UA440 is a front-mount antenna rack kit that allows the antennas supplied with Shure wireless receivers to be mounted on the front panel of a standard 19-inch (483 mm) equipment rack. Designed for commercial AV installations where rack-mounted receivers need their antennas positioned at the front of the rack for improved line-of-sight RF coverage toward the performance or presentation area, the UA440 eliminates the need for rear-panel antenna placement and the associated RF signal loss from routing antennas around the rack enclosure.

Product Description

When Shure wireless receivers are installed in enclosed AV equipment racks, positioning antennas at the rear of the rack—away from the primary RF transmission zone—can significantly degrade wireless system performance due to rack enclosure shielding and increased distance from transmitters. The UA440 front-mount kit provides a clean solution by allowing receiver antennas to be attached to a front-panel bracket on the same rack, pointing toward the room and maintaining direct line-of-sight to wireless transmitters without requiring separate remote antenna cables or external antenna stands. The kit includes four 2-foot BNC-to-BNC coaxial cables connecting the front-mounted antenna ports to the receiver antenna inputs, and four bulkhead adapters for secure front-panel attachment. This approach is well-suited to AV racks in permanent conference room, boardroom, and installed sound installations where a clean rack appearance and reliable wireless performance are both required.

Key Features

• Front-Panel Antenna Mounting for 19-Inch Racks — Mounts receiver antennas on the front face of a standard 19-inch rack, improving line-of-sight RF coverage toward the room without requiring remote antenna cables or external antenna positioning hardware.
• Includes 4 BNC-BNC Coaxial Cables (2 ft) — Four 2-foot coaxial cables connect front-mounted antenna ports directly to receiver antenna inputs, providing a complete cable solution without additional procurement.
• 4 Bulkhead Adapters Included — Front-panel BNC bulkhead adapters provide secure, clean panel-mount antenna connection points on the rack face.
• Eliminates Rear-Panel RF Shielding Issues — By moving antenna positions from the rear of the rack to the front, the UA440 avoids the RF attenuation caused by metal rack enclosures and rear-panel cable routing common in closed AV equipment racks.
• Clean Rack Installation — Integrates antenna connections into the rack panel for a professional installation appearance, appropriate for permanent installed AV systems in corporate, government, and house of worship environments.
