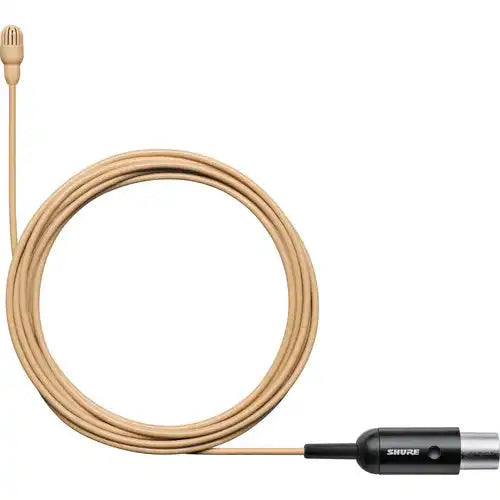

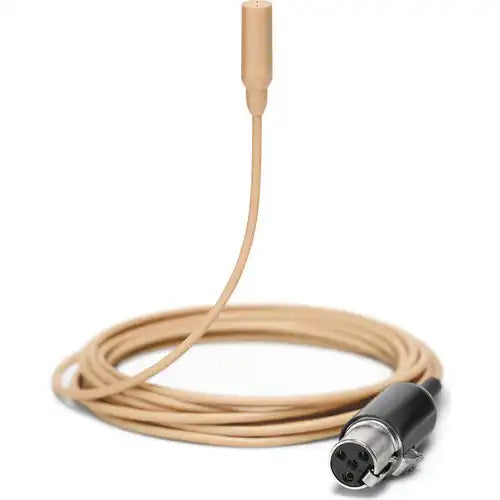

Shure TL47T/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone (Tan, Low Sensitivity, MTQG Connector)
Shure TL47T/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone (Tan, Low Sensitivity, MTQG Connector) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL47T/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone (...
The Shure TL47T/O-MTQG-A TwinPlex lavalier is a professional-grade, ultra-discreet omnidirectional microphone optimized for theater, broadcast, and speech. Its dual-diaphragm condenser capsule delivers a natural, full-range sonic signature from 20 Hz to 20 kHz. With a low sensitivity of –45 dBV, it can manage high sound pressure levels up to 142 dB SPL, making it ideal for dynamic environments. The 1.6 mm paintable cable resists kinks and memory fold, ensuring concealment without compromise. A superhydrophobic coating on the frequency caps helps guard against sweat- and moisture-related issues. Terminated with a 3-pin MTQG connector, this model integrates cleanly with many wireless transmitters. Slim, robust, and dependable, the TL47T/O-MTQG-A balances sonic transparency with professional durability.
Features
| Feature | Description |
|---|---|
| Dual-diaphragm condenser capsule | Delivers natural, full-range sound |
| Omnidirectional polar pattern | Captures audio uniformly from all directions |
| Low sensitivity | –45 dBV allows handling high SPL without distortion |
| High maximum SPL | Capable of 142 dB SPL (1% THD) |
| Slim, paintable cable | 1.6 mm diameter, flexible and discreet |
| Connector | 3-pin MTQG termination for direct integration |
| Moisture-resistant | Superhydrophobic coating resists sweat |
| Application suited | Theater, broadcast, live speech, hidden miking |
Specifications
| Specification | Value |
|---|---|
| Capsule Type | Dual-diaphragm prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142 dB SPL (1 kHz, 1% THD) |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Cable Material | Paintable, flexible, low memory |
| Connector | 3-pin MTQG |
| Operating Voltage | ~5 V DC |
| Current Draw | 120 – 240 µA |
| Weight | ~12.0 g (0.42 oz) |
