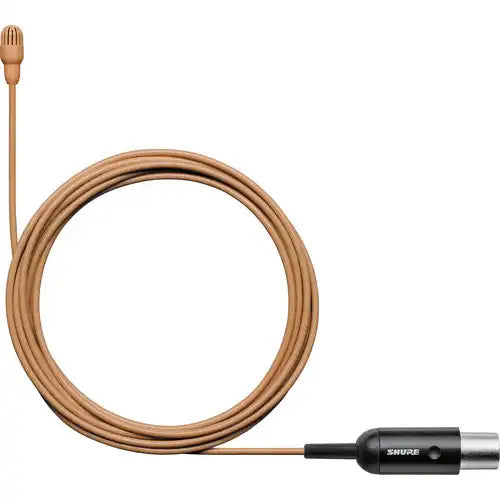

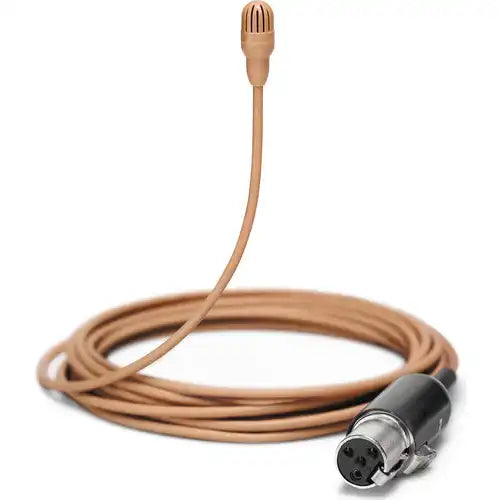

Shure TL47C/O-MTQG TwinPlex Omnidirectional Lavalier Microphone (Cocoa, Low Sensitivity, MTQG Connector)
Shure TL47C/O-MTQG TwinPlex Omnidirectional Lavalier Microphone (Cocoa, Low Sensitivity, MTQG Connector) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL47C/O-MTQG TwinPlex Omnidirectional Lavalier Microphone (Co...
The Shure TL47C/O-MTQG delivers professional-grade, ultra-discreet audio capture for theater, broadcast, and live speech. Its dual-diaphragm condenser capsule offers a natural frequency response from 20 Hz to 20 kHz, ensuring clarity and presence in every vocal performance. With a low sensitivity of –45 dBV, it accommodates high sound pressure levels up to 142 dB SPL without distortion. It’s terminated with a 3-pin MTQG connector, enabling seamless integration with compatible wireless transmitters. The 1.6 mm paintable cable resists kinks and fades into wardrobe or hair, while a superhydrophobic coating on the mic’s caps protects from moisture and sweat. Compact and durable, the TL47C/O-MTQG is engineered for demanding professional use in the most discreet settings.
Features
| Feature | Description |
|---|---|
| Dual-diaphragm condenser capsule | Captures natural, full-frequency sound |
| Omnidirectional polar pattern | Consistent pickup from all directions |
| Low sensitivity | –45 dBV for high dynamic headroom |
| High SPL capability | Can handle up to 142 dB SPL without distortion |
| Connector | 3-pin MTQG termination for wireless systems |
| Slim, paintable cable | 1.6 mm diameter, flexible and conceal-friendly |
| Moisture resistance | Superhydrophobic coating protects against sweat and moisture |
| Applications | Ideal for theater, broadcast, discreet miking |
Specifications
| Specification | Value |
|---|---|
| Capsule Type | Dual-diaphragm prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –45 dBV (≈ 5.62 mV) |
| Self-Noise (A-weighted) | 24.5 dB SPL |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142 dB SPL (1 kHz, 1% THD) |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Connector | 3-pin MTQG |
| Operating Voltage | ~5 V DC |
| Current Draw | 120 – 240 µA |
| Weight | ≈ 12 g (0.42 oz) |
