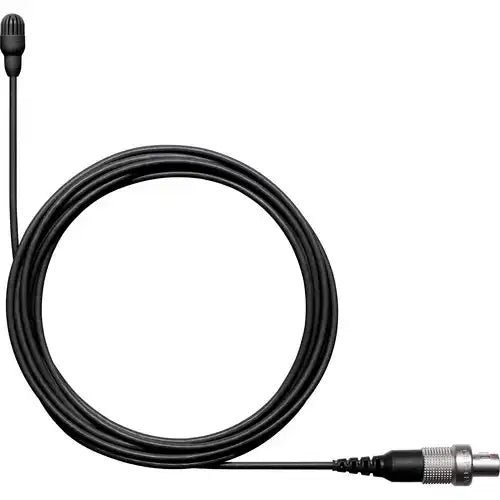

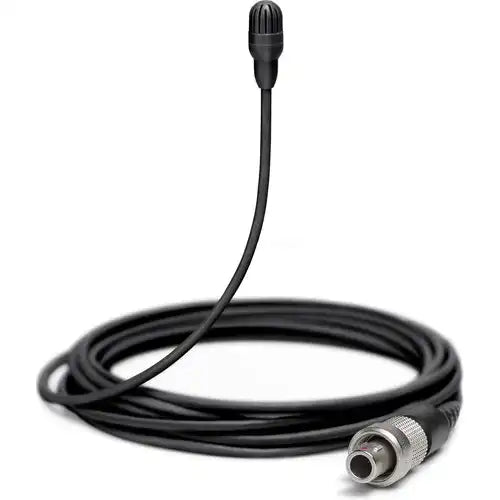

Shure TwinPlex TL47B/O-LEMO-A Omnidirectional Lavalier Microphone with Accessories (Black)
Shure TwinPlex TL47B/O-LEMO-A Omnidirectional Lavalier Microphone with Accessories (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TwinPlex TL47B/O-LEMO-A Omnidirectional Lavalier Microphone w...
Hi my name is Phil, the Shure TwinPlex TL47B/O-LEMO-A is a professional-grade omnidirectional lavalier microphone engineered for demanding applications in theater, broadcast, and speech. Featuring a patent-pending dual-diaphragm condenser capsule, it delivers a natural, full-range sound with exceptional off-axis consistency and low self-noise. The 1.6 mm paintable cable is medical-grade, kink-resistant, and incorporates a redundant ground for enhanced durability. Its LEMO 3-pin connector ensures compatibility with a wide range of wireless transmitters. The microphone's superhydrophobic coating on the interchangeable frequency caps prevents moisture-related signal issues, making it ideal for high-intensity performances. Available in a black finish, it comes with a comprehensive accessory kit, including windscreens, tie clips, and a storage case, ensuring versatility and convenience in various professional settings.
Features Chart:
| Feature | Description |
|---|---|
| Microphone Type | Dual-diaphragm condenser, omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) |
| Maximum SPL | 142 dB SPL at 1 kHz (1% THD) |
| Self-Noise | 24.5 dB SPL-A |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Cable Length | 1.67 m (5.5 ft) |
| Connector Type | LEMO 3-pin |
| Color | Black |
| Moisture Resistance | Superhydrophobic coating on frequency caps |

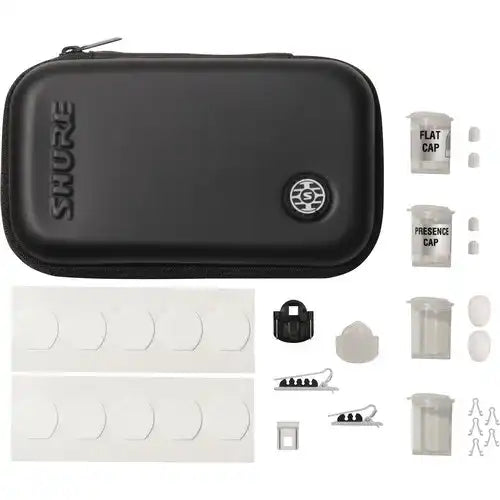

| Included Accessories | Windscreens, tie clips, mounts, storage case |
| Application | Theater, broadcast, speech |
Specifications Table:
| Specification | Value |
|---|---|
| Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) |
| Self-Noise (A-Weighted) | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Output Clipping Level | 3.0 dBV at 1 kHz (1% THD, typical) |
| Maximum SPL | 142.0 dB SPL at 1 kHz (1% THD, typical) |
| Dynamic Range | 117.5 dB |
| Microphone Current Draw | 120 to 240 µA, typical |
| Bias Voltage | 5 VDC (recommended operating voltage) |
| Cable Length | 1.67 m (5.5 ft) |
| Cable Diameter | 1.6 mm |
| Connector Type | LEMO 3-pin |
| Color | Black |
| Weight with Cable | 12.0 g (0.42 oz) |
| Included Accessories | Windscreens, tie clips, mounts, storage case |
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday ship within 24-48 hours. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
