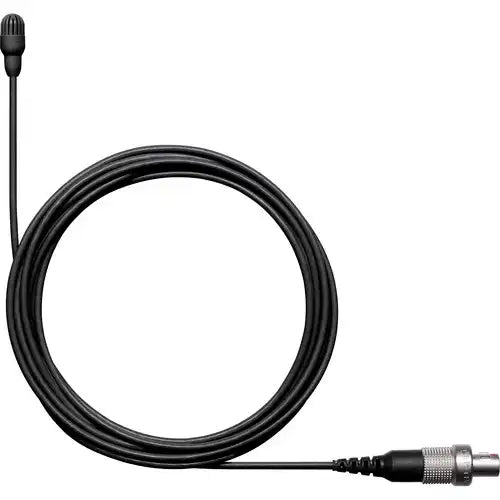

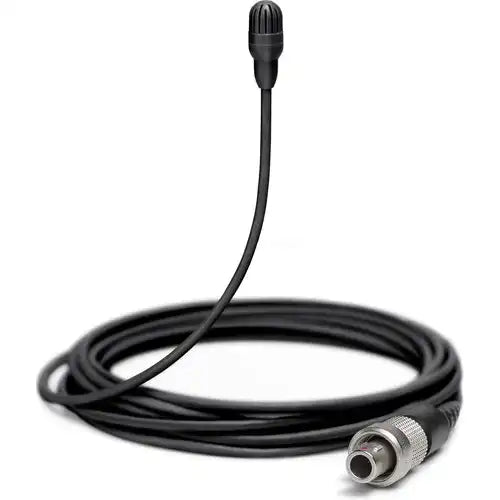

Shure TL47B/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone (Black, Low Sensitivity, LEMO 3-Pin Connector)
Shure TL47B/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone (Black, Low Sensitivity, LEMO 3-Pin Connector) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TL47B/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone (...
The Shure TL47B/O-LEMO-A is a high-performance, ultra-discreet lavalier microphone tailored for theatrical, broadcast, and speech applications. Its dual-diaphragm condenser capsule delivers natural, full-range audio from 20 Hz to 20 kHz, ensuring clarity and presence in all vocal deliveries. With a low sensitivity of –45 dBV, it handles high sound pressure levels up to 142 dB SPL without distortion. The microphone is terminated with a 3-pin LEMO connector for direct compatibility with wireless transmitters. The 1.6 mm paintable, medical-grade cable resists kinking and memory, enabling seamless concealment. Frequency caps use a superhydrophobic coating to prevent sweat-out and maintain consistent performance. Lightweight and virtually invisible, the TL47B/O-LEMO-A delivers premium sound quality in demanding, discreet environments.
Features
| Feature | Description |
|---|---|
| Dual-diaphragm condenser capsule | Ensures rich, natural timbre with extended low-end response |
| Omnidirectional polar pattern | Offers consistent sensitivity from all angles |
| Low sensitivity | –45 dBV suited to high dynamic range environments |
| High maximum SPL | Withstands up to 142 dB SPL with minimal distortion |
| Connector | 3-pin LEMO termination for seamless integration |
| Slim, paintable cable | 1.6 mm, flexible, low memory, ideal for concealment |
| Moisture-resistant caps | Superhydrophobic coating prevents sweat-related signal loss |
| Applications | Ideal for theater, broadcast, live voice, hidden miking |
Specifications
| Specification | Value |
|---|---|
| Capsule Type | Dual-diaphragm, prepolarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Sensitivity | –45.0 dBV (≈ 5.62 mV) at 1 kHz |
| Self-Noise (A-weighted) | 24.5 dB SPL |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142 dB SPL (1 kHz, 1% THD) |
| Dynamic Range | 117.5 dB |
| Cable Diameter | 1.6 mm |
| Cable Length | ~1.67 m (66 in) |
| Connector | 3-pin LEMO |
| Operating Voltage | ~5 V DC |
| Current Draw | 120 - 240 µA |
| Weight | ~12 g (0.42 oz) |
