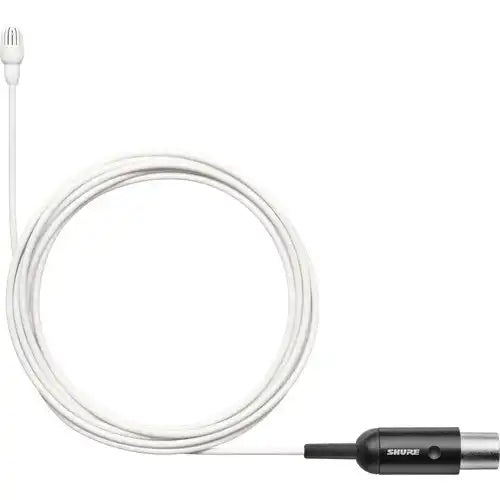

The Shure TwinPlex TL46W/O-MTQG is a high-performance omnidirectional lavalier microphone designed for professional applications in theater, broadcast, and speech. Featuring a dual-diaphragm, prepolarized condenser capsule, it delivers superior natural sound quality with a high sensitivity output, making it ideal for dialogue and medium SPL environments. The microphone boasts a 1.6 mm paintable cable that resists kinks and maintains flexibility, ensuring durability in demanding settings. Its interchangeable moisture-resistant frequency caps incorporate a superhydrophobic nanoscopic coating, effectively eliminating sweat-outs and signal drops caused by perspiration. The microphone is terminated with a 4-pin TA4F mini-XLR connector, compatible with a wide range of wireless transmitters. With its lightweight design and consistent off-axis response, the TL46W/O-MTQG offers exceptional performance while remaining discreet and easy to conceal.
Features Chart
| Feature | Description |
|---|---|
| Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -37.0 dBV (14.1 mV) at 1 kHz |
| Self-Noise (A-Weighted) | 24.0 dB SPL-A |
| Signal-to-Noise Ratio | 70.0 dB |
| Maximum SPL | 134.0 dB SPL at 1 kHz at 1% THD, typical |
| Dynamic Range | 110.0 dB, typical |
| Cable Diameter | 1.6 mm, Paintable, Medical-Grade |
| Connector Type | 4-pin TA4F Mini-XLR |
| Color | White |
| Moisture Resistance | Superhydrophobic Nanoscopic Coating |
| Applications | Theater, Broadcast, Speech |
Specifications Table
| Specification | Value |
|---|---|
| Microphone Type | Subminiature Lavalier |
| Connector | 4-pin TA4F Mini-XLR |
| Cable Length | 5.5 ft (1.68 m) |
| Cable Material | Medical-Grade, Paintable, Flexible |
| Operating Voltage | 5 VDC Bias |
| Current Draw | 120 to 240 µA, typical |
| Housing Material | Molded ABS |
| Weight | Approximately 0.2 oz (5.7 g) |
| Country of Origin | Mexico |
