Shure TwinPlex TL45C/O-LEMO Omnidirectional Subminiature Lavalier Microphone – Cocoa, Low Sensitivity, 3-Pin LEMO Connector
Shure TwinPlex TL45C/O-LEMO Omnidirectional Subminiature Lavalier Microphone – Cocoa, Low Sensitivity, 3-Pin LEMO Connector is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure TwinPlex TL45C/O-LEMO Omnidirectional Subminiature Lavalier M...

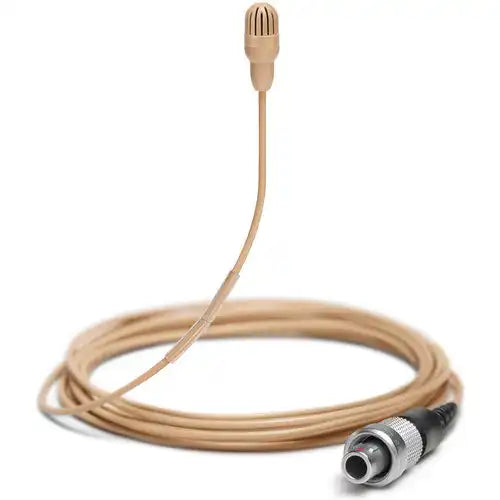

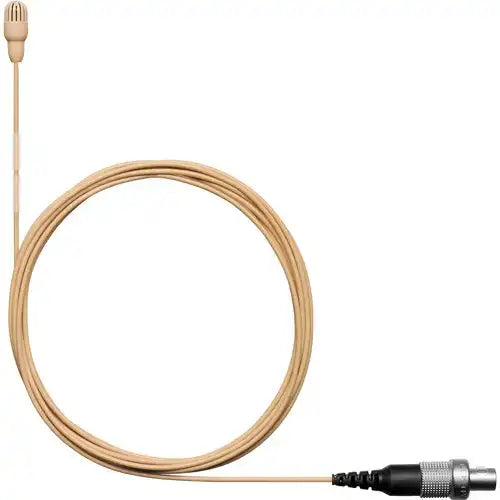

The Shure TwinPlex TL45C/O-LEMO is a professional-grade omnidirectional subminiature lavalier microphone designed for demanding applications in theater, broadcast, and speech. Featuring a dual-diaphragm, prepolarized condenser capsule, it delivers a natural, full-range sound with exceptional off-axis consistency. The microphone's low sensitivity and high maximum SPL handling make it ideal for high-pressure sound environments, ensuring clear and accurate audio capture. Its ultra-thin, paintable 1.1 mm cable is medical-grade and resists kinks, maintaining flexibility and durability. The microphone is terminated with a 3-pin LEMO connector, compatible with a wide range of wireless transmitters. Interchangeable sweat- and moisture-resistant frequency caps incorporate a superhydrophobic nanoscopic coating, effectively preventing sweat-outs and signal drops caused by perspiration. With its discreet design and robust performance, the TL45C/O-LEMO is an excellent choice for professional audio applications where reliability and sound quality are paramount.
Features Chart
| Feature | Description |
|---|---|
| Microphone Capsule | Dual-Diaphragm, Prepolarized Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -45.0 dBV (5.62 mV) at 1 kHz |
| Self-Noise (A-Weighted) | 24.5 dB SPL-A |
| Signal-to-Noise Ratio | 69.5 dB |
| Maximum SPL | 142.0 dB SPL at 1 kHz at 1% THD, typical |
| Dynamic Range | 117.5 dB, typical |
| Cable Diameter | 1.1 mm, Paintable, Medical-Grade |
| Connector Type | 3-pin LEMO |
| Color | Cocoa |
| Moisture Resistance | Superhydrophobic Nanoscopic Coating |
| Applications | Theater, Broadcast, Speech |
Specifications Table
| Specification | Value |
|---|---|
| Microphone Type | Subminiature Lavalier |
| Connector | 3-pin LEMO |
| Cable Length | 66 in. (1.68 m) |
| Cable Material | Medical-Grade, Paintable, Flexible |
| Operating Voltage | Plug-In Power |
| Current Draw | 120 to 240 µA, typical |
| Housing Material | Molded ABS |
| Weight | Approximately 0.07 lbs (0.03 kg) |
| Country of Origin | Mexico |
