Shure PSM900 – Wireless In-Ear Monitor System with SE425

Product Overview

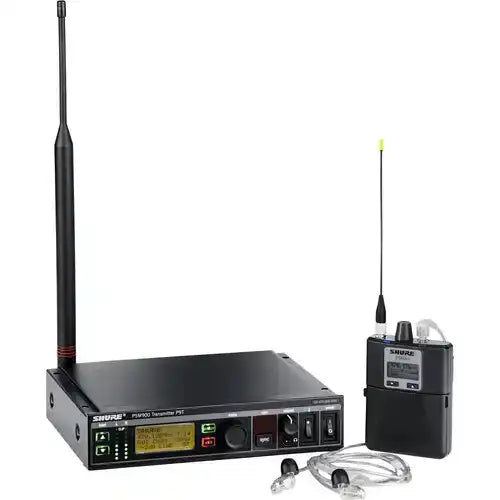

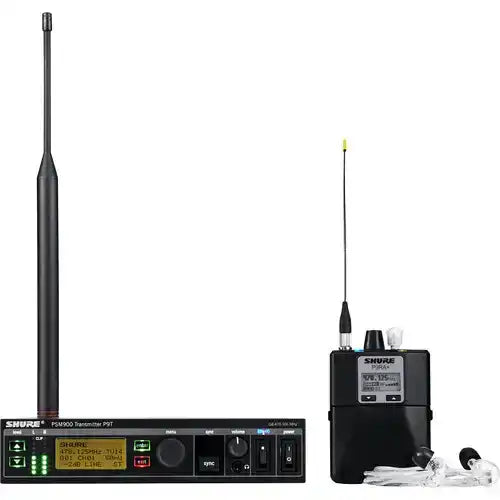

The Shure PSM900 is a wireless personal monitor system built for professional in-ear monitoring in houses of worship, broadcast studios, auditoriums, and other commercial AV environments that need dependable stage or presenter monitoring. This bundle pairs the P9T half-rack wireless transmitter with the P9RA+ bodypack receiver and Shure SE425-CL sound isolating earphones, giving an integrator a complete, ready-to-deploy IEM channel in the G6 frequency band (470–505 MHz). Shure Audio Reference Companding and a wide dynamic range deliver clean, low-noise monitor mixes, while CueMode lets a single bodypack receiver store and switch between up to 20 different mixes. For facilities running multiple presenters, musicians, or broadcast talent who each need a private monitor feed, the PSM900 is a proven half-rack wireless monitoring solution.

Product Description

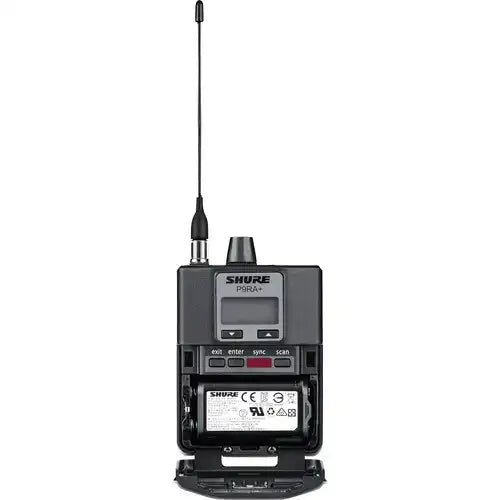

In-ear monitoring solves a problem that floor wedges cannot: giving each presenter, worship leader, or performer a private, consistent audio mix without spilling sound into microphones or the room. The PSM900 half-rack wireless personal monitor system addresses this directly, combining the P9T transmitter, P9RA+ bodypack receiver, and SE425-CL sound isolating earphones into a single ordering SKU so AV integrators do not have to piece together compatible components separately. The P9T transmitter sends a wireless stereo monitor mix from the rack using balanced 1/4-inch and XLR inputs, with a loop output for daisy-chaining additional transmitters and a headphone output for confidence monitoring at the rack. On the receiving end, the P9RA+ bodypack uses a hybrid analog/digital architecture that improves headroom and stereo separation over older bodypack designs, while CueMode gives the wearer the ability to store and recall up to 20 different monitor mixes from a single receiver — useful in broadcast studios and houses of worship where several talent members share a limited number of bodypacks across services or shows. Scan and Sync IR linking lets the receiver automatically find and lock to the correct transmitter frequency, reducing setup time during load-in or between services. The included SE425-CL earphones use dual high-definition drivers and a detachable MMCX cable, delivering accurate sound reproduction while sound-isolating sleeves block outside noise so the wearer can monitor at a safer, lower volume. Because the system is supplied in the G6 band (470–505 MHz), integrators adding additional PSM900 channels or IEM systems to the same venue should confirm frequency coordination across all wireless devices, and larger deployments running more than a few channels may benefit from an antenna combiner to consolidate RF distribution. The PSM900 is a practical fit for houses of worship running weekly services with a worship team, broadcast studios monitoring talent during live production, auditoriums and commercial meeting spaces hosting presenters who need a private mix, and training rooms or all-hands events where a speaker needs cue audio without stage wedges.

Key Features

• Complete IEM Channel — Bundles the P9T transmitter, P9RA+ bodypack receiver, and SE425-CL earphones in one ordering SKU.
• CueMode — Stores and recalls up to 20 different monitor mixes on a single bodypack receiver.
• Scan and Sync IR Link — Automatically locates and syncs the receiver to the correct transmitter frequency.
• Shure Audio Reference Companding — Delivers a wide dynamic range and low-noise wireless monitor mix.
• Hybrid Analog/Digital Bodypack — Improves headroom and stereo separation over legacy analog-only receivers.
• Sound Isolating SE425-CL Earphones — Dual high-definition drivers with a detachable cable and comfortable over-ear fit.
• Half-Rack Transmitter Form Factor — Fits standard AV racks and daisy-chains via loop output for multi-channel systems.

Typical Applications

• House of worship
• Broadcast studio
• Auditorium
• Commercial meeting space
• Training room
• All-hands room

Technical Specifications

Frequently Asked Questions

What is included in the PSM900 with SE425-CL bundle?
This system includes the P9T half-rack transmitter, the P9RA+ bodypack receiver, and Shure SE425-CL sound isolating earphones, all matched to the same G6 (470–505 MHz) frequency band.

Can the P9RA+ receiver be used with other Shure earphones?
Yes. The P9RA+ is compatible with all Shure SE Sound Isolating earphones, so venues can standardize on the receiver and mix and match earphone models per performer preference.

How many monitor mixes can one bodypack store?
CueMode allows the P9RA+ to store and recall up to 20 different monitor mixes, which is useful when multiple presenters or performers share receivers across services or productions.

Do I need an antenna combiner for multiple PSM900 channels?
For installations running several PSM900 transmitters, an antenna combiner such as the Shure PA421B consolidates RF distribution and reduces rack clutter; confirm the combiner's frequency range matches your PSM900 band.

Can I buy the transmitter, receiver, or earphones separately?
Yes. Creation Networks stocks the Shure P9T transmitter, the Shure P9RA+ receiver, and the Shure SE425-CL earphones individually for expansion or replacement.

How is this system installed in an AV rack?
The P9T is a half-rack unit that mounts in a standard equipment rack using the included rack-mounting kit, with front or back mountable antennas and balanced 1/4" or XLR inputs from the monitor mix source.

Is the PSM900 suitable for a house of worship with a rotating volunteer team?
Yes. Scan and Sync IR linking and CueMode simplify setup and mix recall, which reduces the training burden on volunteer AV teams operating the system week to week.

Does Shure warranty the PSM900 system components?
The P9T, P9RA+, and SE425-CL each carry Shure's standard manufacturer warranty; contact Creation Networks support for current warranty terms and RMA assistance.
