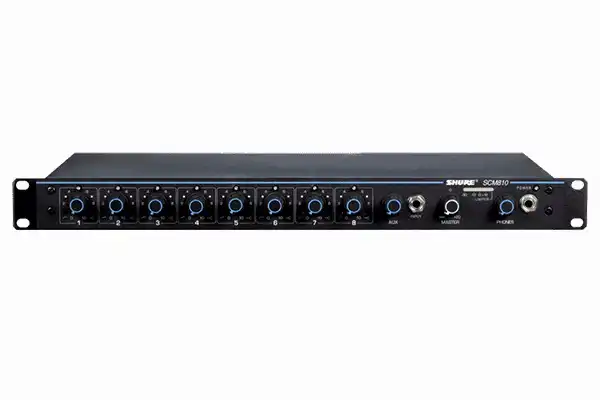

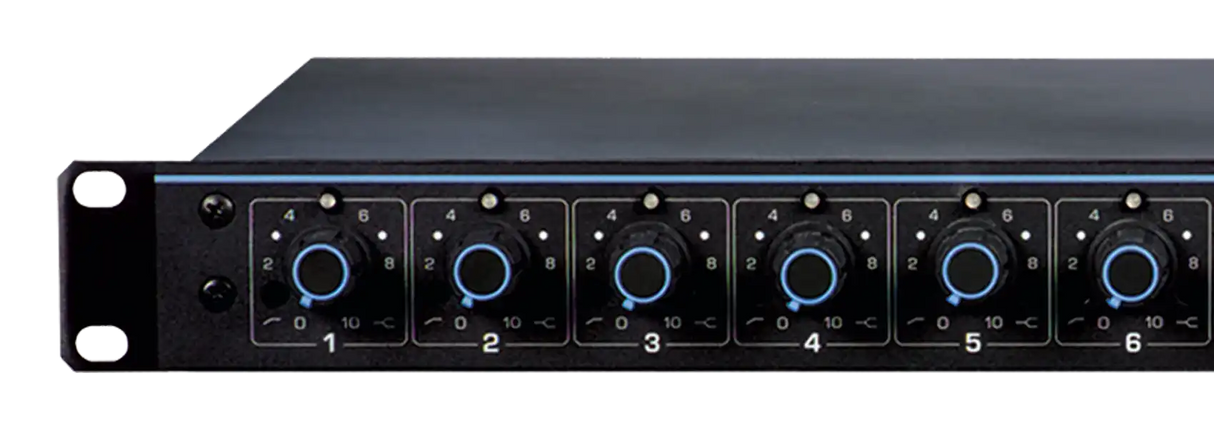

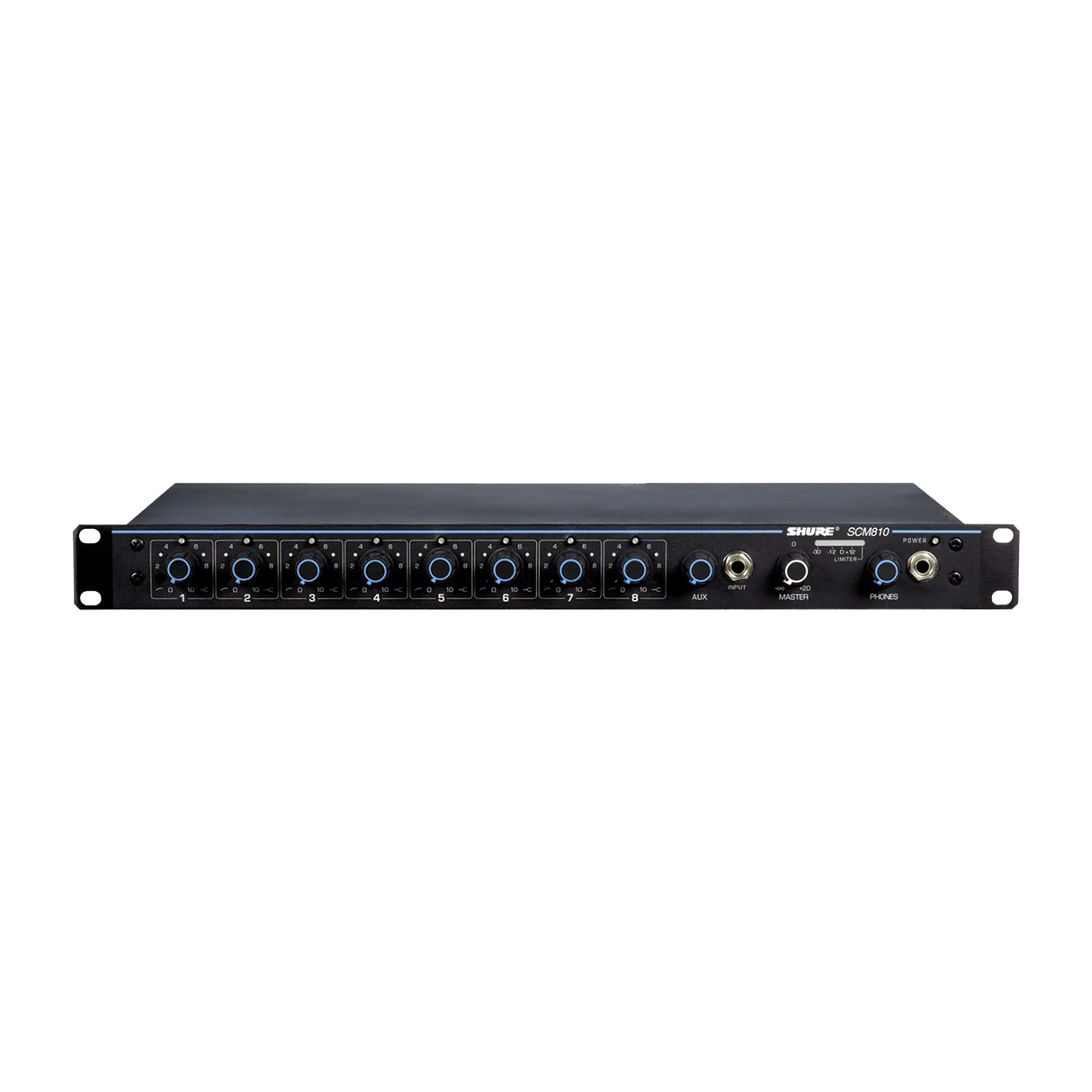

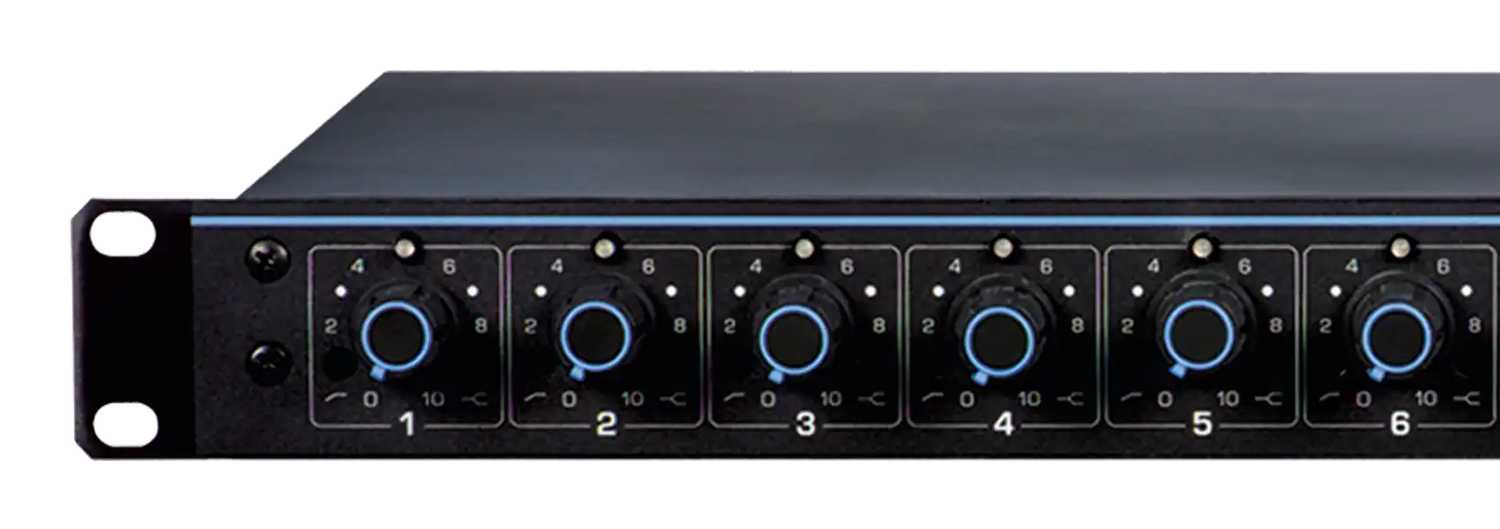

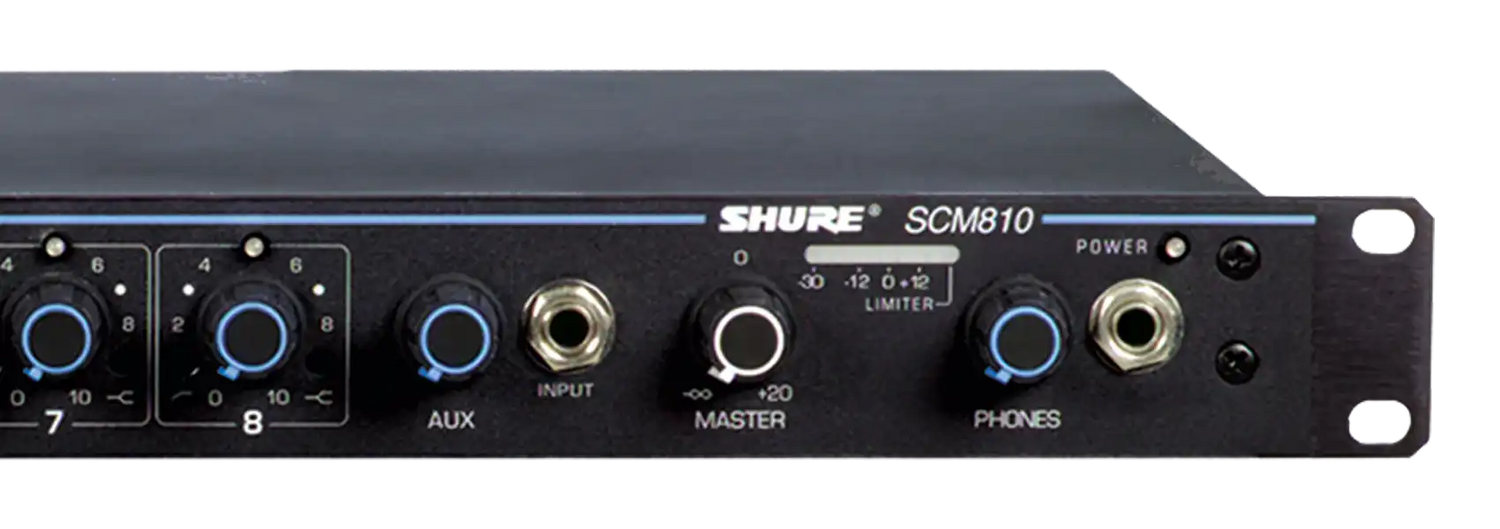

This eight-channel automatic mixer features the Shure patented IntelliMix®, which activates only microphones being addressed, minimizing poor audio caused by multiple open microphones.
The SCM810 is designed specifically for installed sound applications.
Features include adjustable EQ per channel, 48 V phantom power, active balanced microphone - or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry, complete logic control of microphone activation, linking capacity for up to 400 microphones, with an internal power supply. 120/230 Vac power.
Features

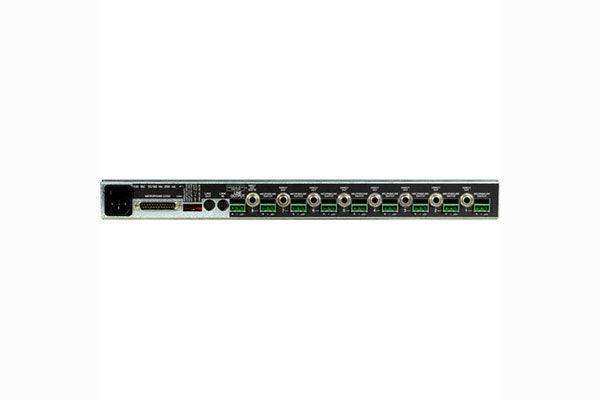

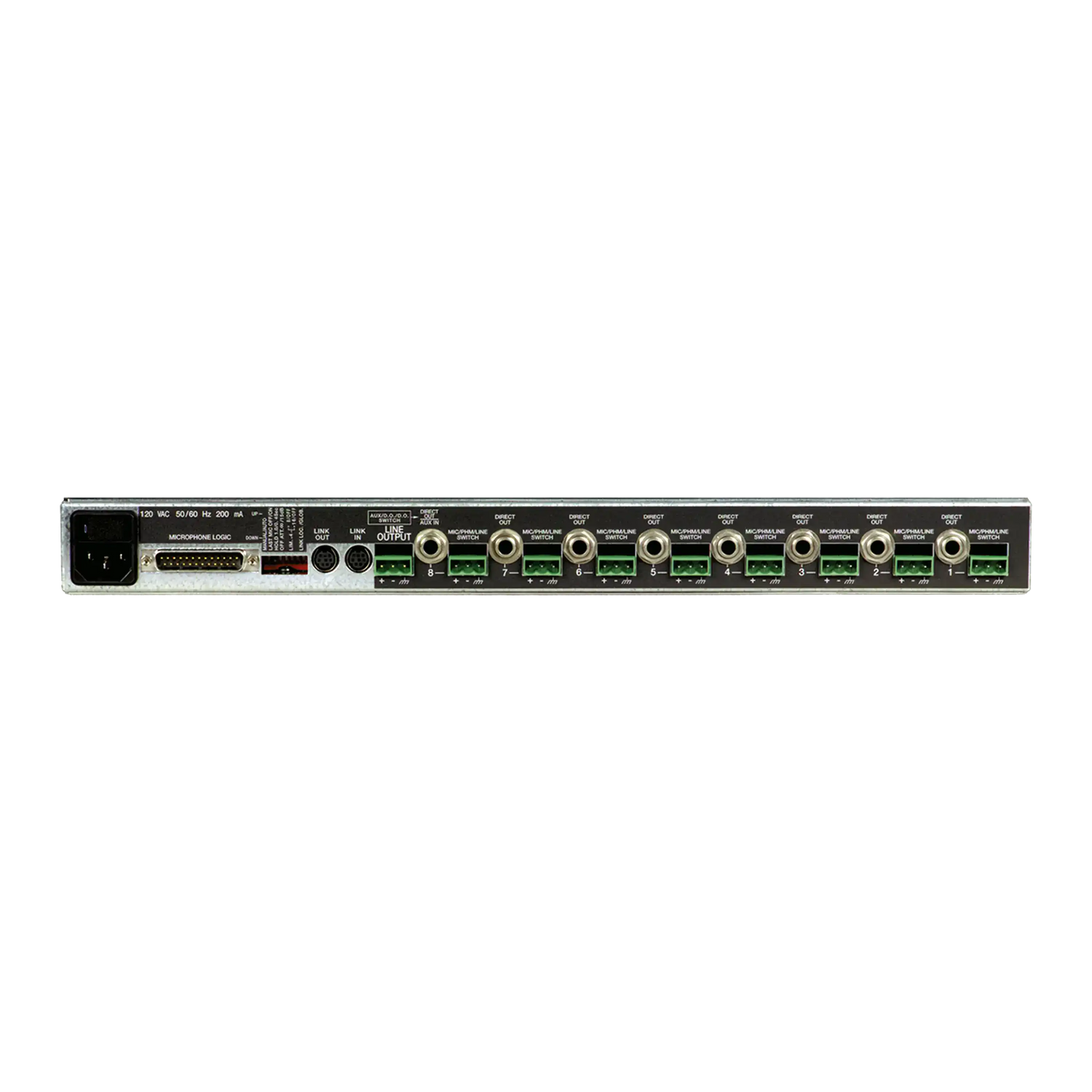

- Eight balanced mic-line input channels (Phoenix block connectors)
- One unbalanced 1/4" aux level input
- Eight unbalanced 1/4" direct line level outputs
- One balanced master line level output (Phoenix block connector)
- Selectable 46V phantom power per channel
- Level selectable peak output limiter
- Full rack width (single rack height)
Specification
Monitor/Headphone Out | 1 - 1/4" TRS Phone jack (Headphone) |
ALT I/O | 1 - AUX line input 1/4" Phone (front panel) 1 - Microphone Logic connection DB25 male connector |
Link Input/Output | 2 - Link In / Link Out 1/4" Phone jacks |
Impedance | Input MIC: Designed for use with 19-600 ohm load, 1.6k ohms actual, -15dBv clipping level LINE: Designed for use with - / < 2k ohm load, 10k ohms actual, +22dBV clipping level AUX: Designed for use with - / < 2k ohm load, 10k ohms actual, +22dBV clipping level SEND/RETURN: Designed for use with - / < 2k ohm load, 10k ohms, +18dBV Output LINE: Designed for use with >600 ohm load, 60 ohms actual, +18dBV clipping level HEADPHONES: Designed for use with 8-200 ohms, 60 ohm recommended, 300 ohms actual, +12dBV clipping level DIRECT OUT: Designed for use with > 2k ohm load, 1k ohms actual, +18dBV clipping level SEND/RETURN: Designed for use with > 2k ohm load, 1k ohms actual, +18dBV clipping level |
Gain | Low-impedance mic (150 ohms)Input: Line 80dB, Headphones 88dB, Direct Out 34dB - Outputs Line Input: Line 40dB, Headphones 48dB, Direct Out -6dB - Outputs Aux Input: Line 44dB, Headphones 52dB, - Outputs Send/Return Input: Line 20dB, Headphones 28dB - Outputs |
Phantom Power | 46 Vdc open-circuit through 6.8k ohms series resistance per DIN 45 596 |
Operating Temperature | Operating: 0 to 60 degrees C (32 to 140 degrees F) Storage: -30 to 70 degrees C (-20 to 165 degrees F) |
Power | SCM810: 120 Vac rated nominal, 50/60Hz, 200mA SCM810E: 230 Vac rated nominal, 50/60Hz, 100mA |
Dimensions | 1.75 x 19.13 x 12.4 (44.5 x 483 x 317mm) (H x W x D) |
Weight | 9.57 lbs (4.3kg) |
Package Weight | 13.2 lb |
Box Dimensions (LxWxH) | 21.89 x 16.772 x 2.835" |
