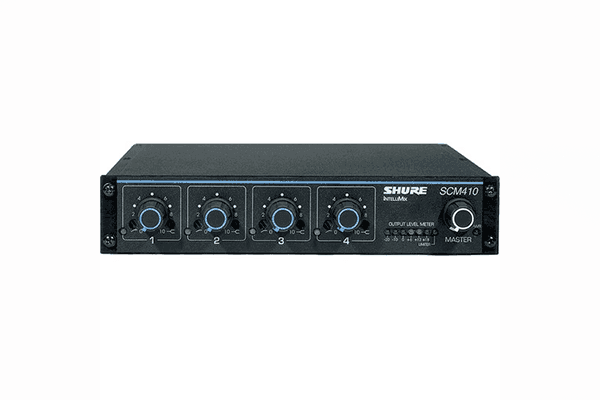

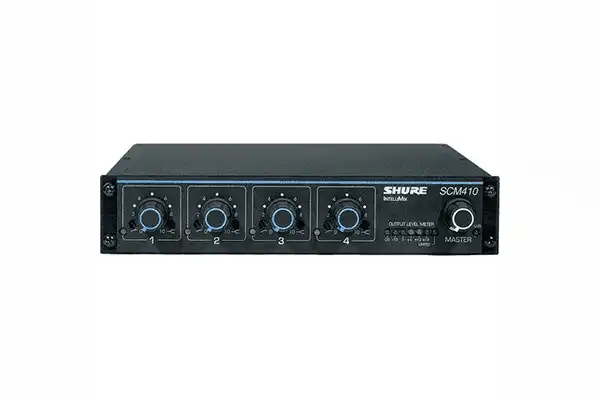

Shure SCM410 Four-Channel Automatic Microphone Mixer (110V) with Logic Control and EQ per Channel, AC only, Half Rack Space Single and Dual Mount

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: SCM410
No reviews
Price:
$947.00 $1,326.00

Description

The Shure SCM410 4 Channel Automatic Mixer is a 4 channel microphone mixer designed for recording, sound reinforcement and broadcast application. The mixer will accept signal from dynamic and condenser microphone of any type. The rear panel features 4 balanced 3-pin XLR female microphone inputs and a single balanced XLR output that is capable of mic or line level signal. Each channel features an adjustable EQ for signal contouring and 12VDC phantom power is available for condenser microphones.

Shure's patented IntelliMix technology incorporates functions that enable seamless, noise free automation and channel switching. The MaxBus feature controls the number of channels that may be activated for a single sound source. This enables one talker to activate one channel automatically, although additional channels may pick up the signal. Noise Adaptive Threshold is an auto adjusting noise level threshold that distinguishes between background noise and abrupt sound such as speech. The Last Mic Lock-On function keeps the most recently activated microphone open, allowing constant natural ambiance enabling noiseless, seamless channel switching.

  • 4-Channel mic mixer for recording, sound reinforcement, and broadcast
  • Accepts signals from dynamic and condenser microphones
  • 4 Balanced 3-pin XLR female microphone inputs and 1 balanced XLR output upon rear panel
  • Adjustable EQ signal contouring and 12VDC phantom power upon each channel
  • IntelliMix technology for noiseless automation and channel switches
  • MaxBus feature controls channels activated for 1 sound source
  • Noise Adaptive Threshold auto-adjusting noise level technology to distinguish background noise from speech
  • Last Mic Lock-On function keeps most recently activated microphone open
  • Multi-pin Logic connection provides Mute, Gate and Override remote control options
Inputs 4 - XLR 3-pin Female mic level only
Output 1 - XLR 3-pin Male mic/line switchable
Monitor/Headphone Out No
ALT I/O AUX Output - 1 Phono unbalanced
Link Input/Output 9-pin serial
Impedance Input:
Mic - 19-600 ohm, 1.4k ohm actual, -14dBV clipping
Output:
Line - .5k ohm, 300 ohm actual, +24dBV clipping
Mic - .600 ohm, 3 ohm, -18dBV clipping
Aux - .10k ohm, 1.5k ohm, +14dBV clipping
Gain Low-impedance mic input 150 ohms:
Line - 80dB
Mic - 40dB
Aux - 68dB
Hum & Noise 150 ohm source; through 22Hz - 22kHz filter:
Equivalent Input Hum and Noise: -123dBV max., -125dBV typical
Frequency Response Rated @ 1kHz, channel controls centered:
50Hz to 20kHz +2dB; -3dB corner @ 25Hz
Distortion < 0.1% @ +4 dBu output level, 50Hz to 20kHz
Metering 7-segment peak LED meter
Control Voltage Out No
Phantom Power 12 VDC
Operating Temperature Operating: -7 to 49 degrees C (20 to 120 degrees F)
Storage: -29 to 74 degrees C (-20 to 165 degrees F)
Power 100-120 Vac rated nominal, 50/60 Hz, 100mA (max.)
Dimensions 1.73 x 8.62 x 10.51" (44 x 219 x 267mm) HxWxD
Weight 3.86 lbs (1.75kg)
Packaging Info
Package Weight 6.76 lb
Box Dimensions (LxWxH) 14.9 x 10.4 x 3.2"
