Shure SBC840-US Networked Eight-Bay Battery-Only Tray Charger
Product Overview

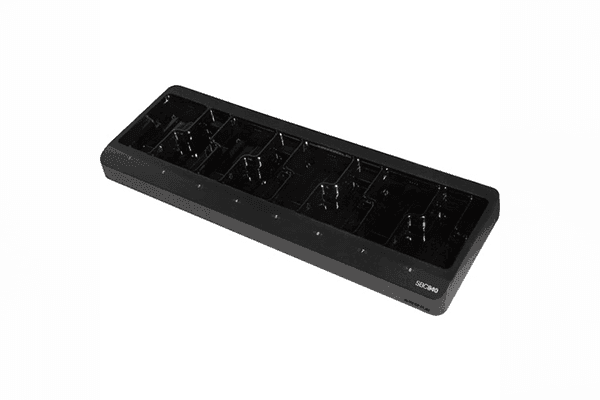

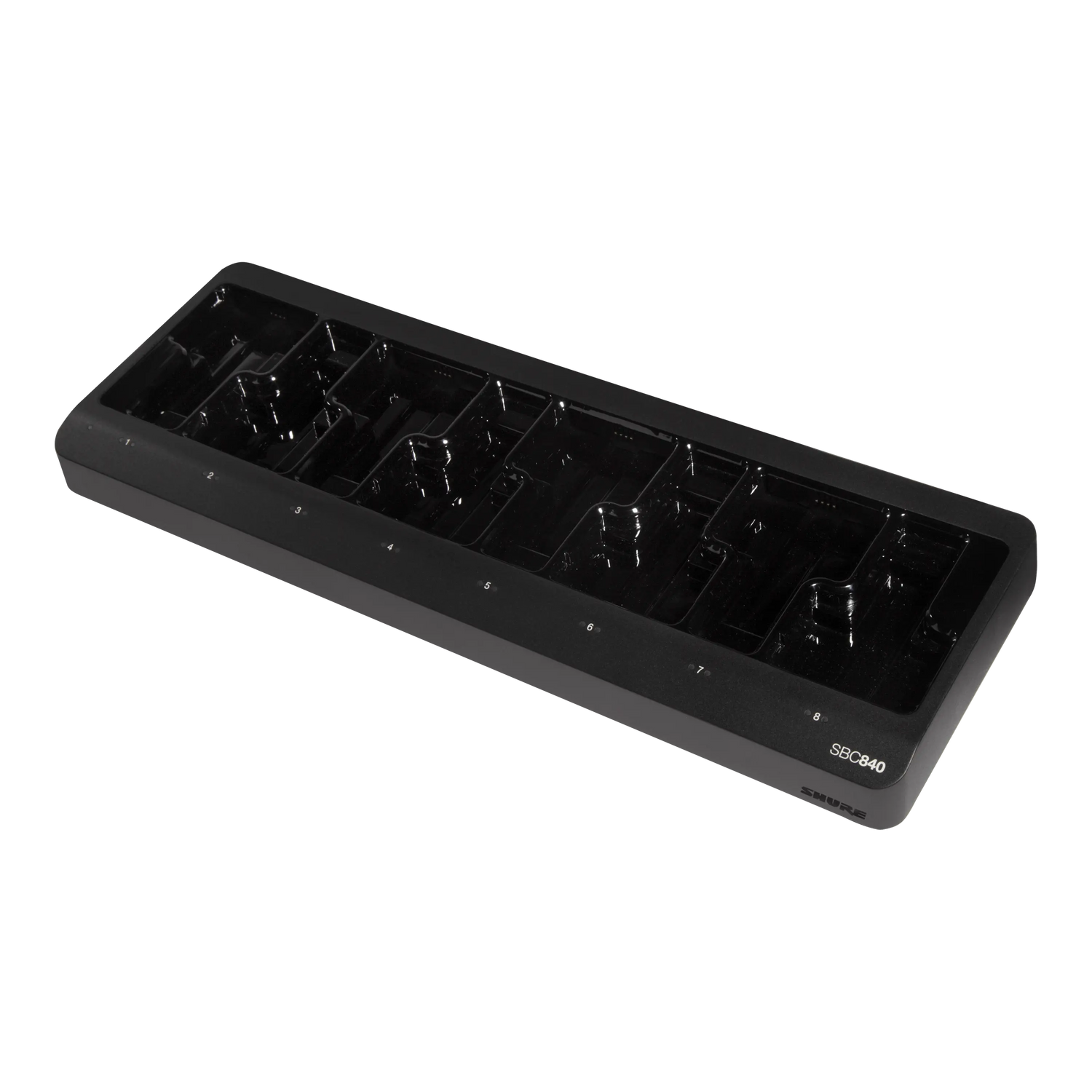

The Shure SBC840-US is a networked 8-bay rack tray charger for SB910 and SB920 batteries, purpose-built for Axient Digital wireless system deployments requiring centralized, high-capacity battery management. At 1.36 in. tall and 15.64 in. wide, it fits a standard 1RU rack space, making it ideal for permanent equipment rack installations in boardrooms, broadcast studios, and large commercial AV systems. Its 10/100 Mbps Ethernet port enables remote monitoring via Shure Wireless Workbench and TCP/IP integration with AMX and Crestron control systems.
Product Description

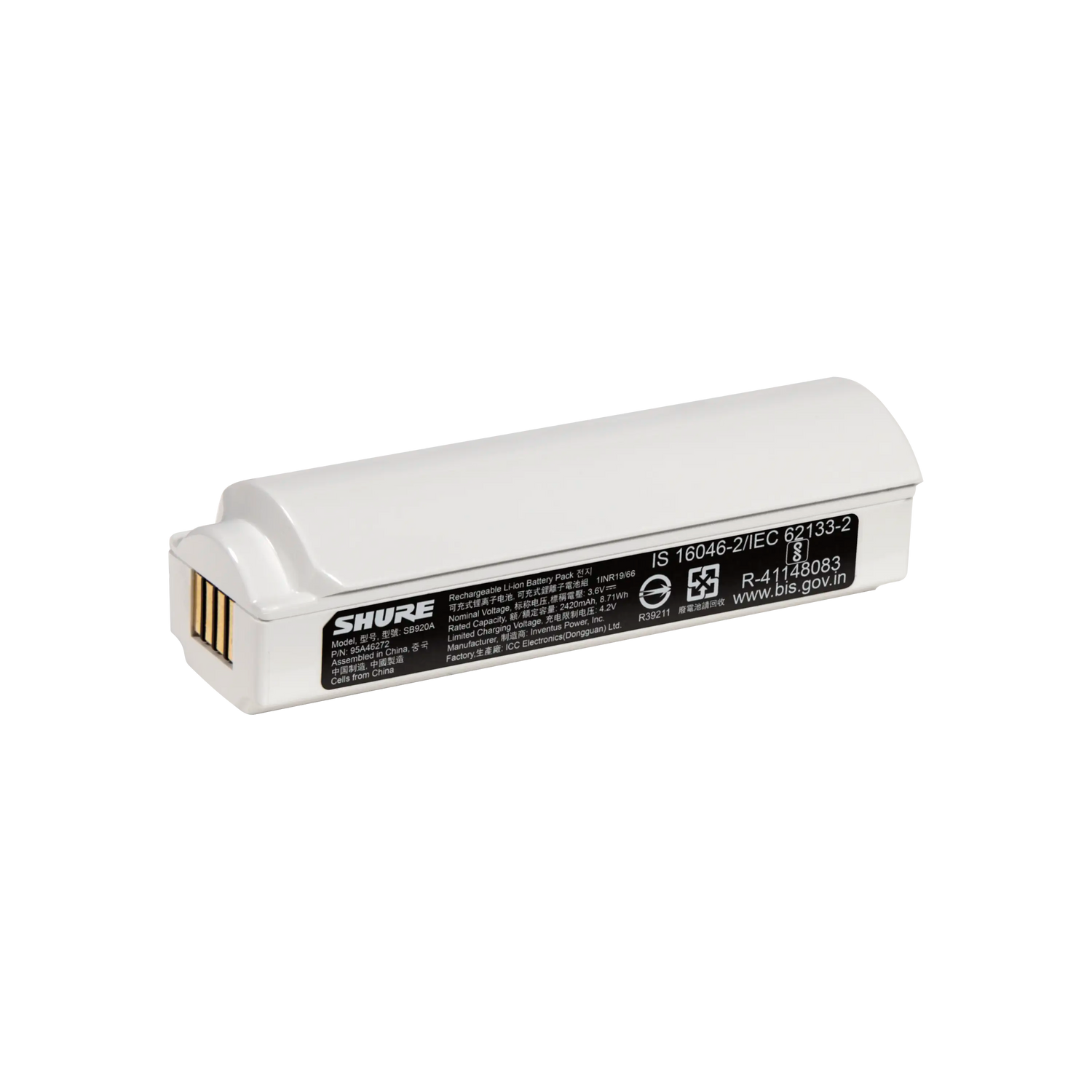

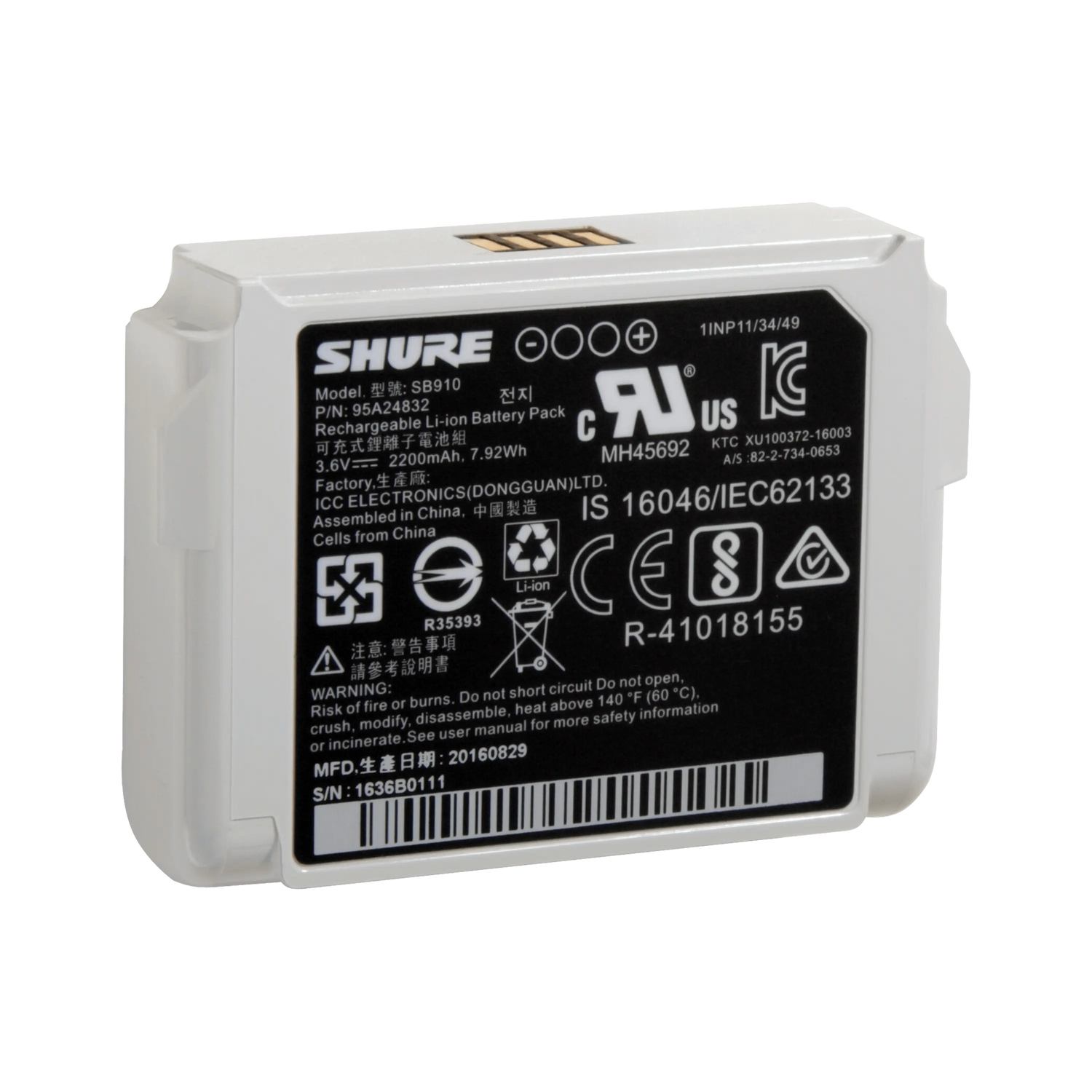

The SBC840-US charges up to eight SB910 or SB920 batteries at up to 1.25 A, reaching 50% capacity in approximately one hour and full charge in three hours. Its 1RU-compatible tray format integrates cleanly into wireless system racks alongside ADX4 receivers, making it a natural addition to any permanently installed Axient Digital commercial AV system. Storage Mode charges or discharges cells to 3.8 V for long-term battery storage, and Power Save Mode maintains charging while disabling network functionality. For smaller 2-bay deployments, the Shure SBC240 Networked 2-Bay Docking Charger handles ADX1/ADX2 transmitters directly and is available at Creation Networks.
Key Features

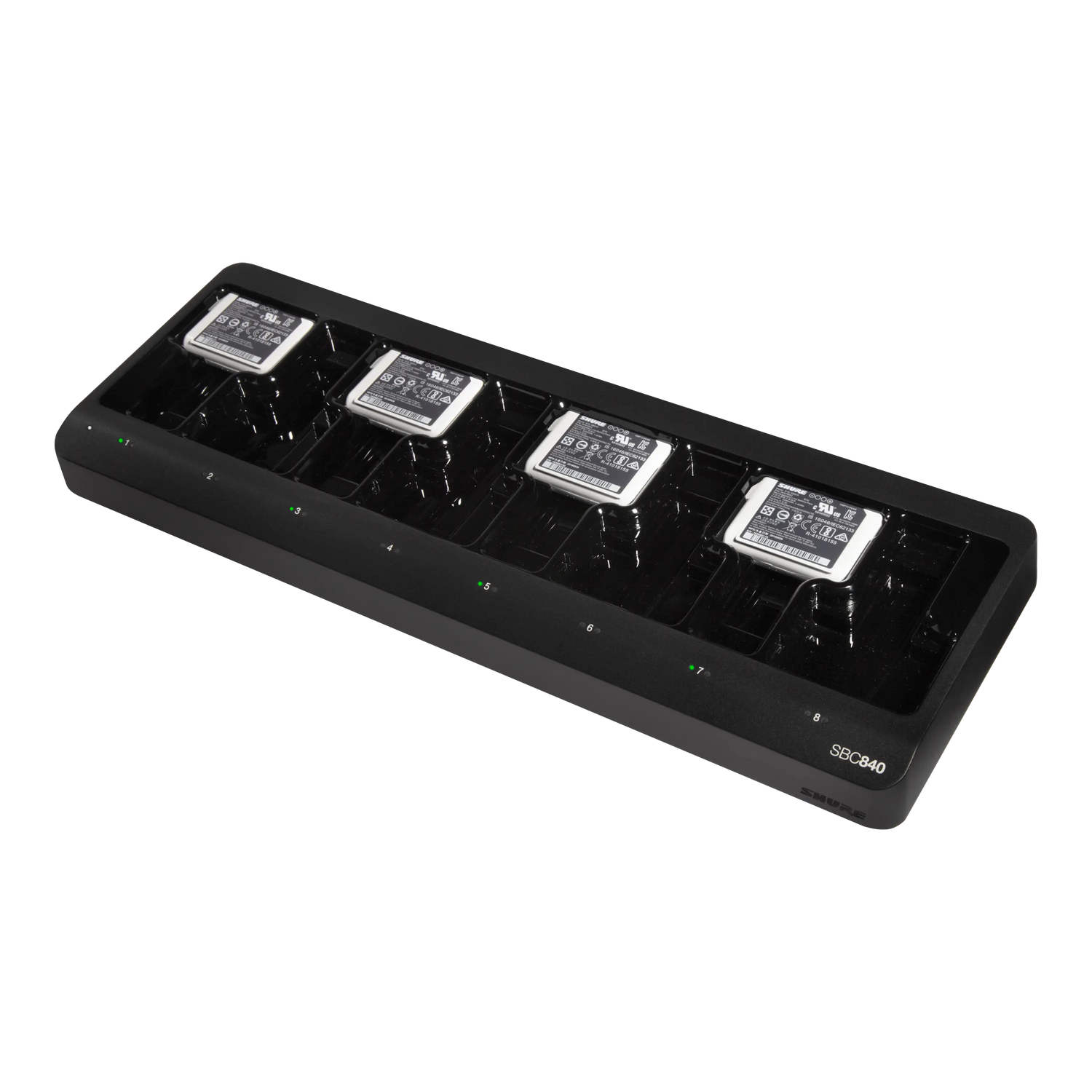

- 8-Bay SB910/SB920 Rack Tray Charging — Charges any combination of up to 8 SB910 or SB920 Axient Digital batteries simultaneously in a 1RU-compatible tray form factor.
- 1RU Rack-Compatible Form Factor — At 1.36 in. high and 15.64 in. wide, the SBC840-US integrates into standard equipment racks for permanent commercial AV rack installations.
- 1.25 A Charge Current — High charge current supports 50% capacity in approximately 1 hour and full charge in approximately 3 hours across all 8 bays.
- Ethernet-Enabled Wireless Workbench Monitoring — 10/100 Mbps Ethernet port provides real-time per-bay battery health, charge percentage, temperature, and cycle count via Shure Wireless Workbench.
- AMX/Crestron Control System Integration — TCP/IP command string access on port 2202 for integration with AMX, Crestron, and other third-party AV control platforms.
- Storage Mode — Charges or discharges batteries to 3.8 V for optimal long-term storage; recommended for batteries unused more than 8 days.
- Power Save Mode — Maintains charging while disabling network functionality to reduce power draw when Wireless Workbench monitoring is not needed.
- PS60 Power Supply Included — Ships complete and ready for immediate rack installation.
Typical Applications
- Boardroom and executive conference room Axient Digital wireless system rack-mounted battery management
- Broadcast studio and auditorium 8-channel wireless battery staging with Wireless Workbench monitoring
- House of worship large-format Axient Digital SB910/SB920 battery fleet management
- Government space and commercial meeting room permanent rack-mounted wireless battery infrastructure
- Multi-purpose room and training room wireless AV system battery logistics with control system integration
Technical Specifications
| Compatible Batteries | Up to 8 SB910 or SB920 (Axient Digital) |
| Charge Current | 1.25 A maximum |
| Charge Time | 50% in approx. 1 hour; 100% in approx. 3 hours |
| Power Requirement | 15 V, 3.33 A maximum (PS60 included) |
| Network Interface | 10/100 Mbps Ethernet; DHCP or Manual IP addressing |
| Control System Interface | TCP/IP, Port 2202 (AMX, Crestron compatible) |
| Housing | Molded plastic, 1RU-compatible tray |
| Dimensions (H x W x D) | 1.36 x 15.64 x 5.40 in. (34.57 x 397.30 x 137.27 mm) |
| Weight | 2 lb (0.91 kg), without batteries |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -20 to 165°F (-29 to 74°C) |
Frequently Asked Questions
What batteries does the SBC840-US support?
The SBC840-US charges any combination of SB910 and SB920 batteries used in Axient Digital ADX1, ADX2, and ADX2FD transmitters. It does not support SB910M (micro bodypack) batteries; those require the SBC840M-US.
Is the SBC840-US rack-mountable?
Yes. The SBC840-US measures 1.36 in. tall and 15.64 in. wide, fitting a standard 1RU rack space. It is designed as a rack tray and does not include rack ears; verify compatibility with your specific rack enclosure before installation.
How does the SBC840-US connect to Wireless Workbench?
Connect the SBC840-US to your network via the rear Ethernet port. Open Wireless Workbench, select the appropriate network interface, and the charger will appear in the Inventory tab with per-bay charge status, battery health, temperature, and cycle count data.
Can the SBC840-US be integrated with AMX or Crestron?
Yes. The SBC840-US communicates over TCP/IP on port 2202. Refer to Shure’s SBC840/SBC840M command string documentation for the full list of supported commands for control system integration.
What warranty is included?
Shure provides a limited 2-year manufacturer warranty on the SBC840-US. Contact Creation Networks for commercial procurement, volume pricing, and support options.
