Shure SBC240-US Two-Bay Networked Docking Charger and PS60 Power Supply

Product Overview

The Shure SBC240-US Two-Bay Networked Docking Charger with PS60 Power Supply provides a complete, ready-to-deploy charging solution for Axient Digital wireless systems, supporting any combination of two SB910 or SB920 Li-Ion batteries or docked ADX1, ADX2, or ADX2FD transmitters. Ethernet connectivity enables real-time battery monitoring via Shure Wireless Workbench and TCP/IP integration with AMX and Crestron control systems—making it the standard networked charger for managed commercial AV and broadcast installations. This bundle includes the required PS60 power supply; no additional purchase is needed for immediate deployment.

Product Description

The SBC240-US charges SB910 and SB920 battery cells—the rechargeable batteries used in Axient Digital ADX1 bodypack and ADX2/ADX2FD handheld transmitters—at up to 1.25 A, reaching 50% capacity in approximately one hour and full charge in three hours. Up to four SBC240/SBC220 units can be ganged together to share a single power supply and Ethernet connection, reducing cabling overhead in multi-system deployments. Storage Mode charges or discharges batteries to 3.8 V for long-term storage, preserving cell health when wireless systems are not in active use. For organizations deploying larger Axient Digital systems, the Shure SBC840-US 8-Bay Networked Tray Charger offers higher-capacity centralized charging and is available at Creation Networks.

Key Features

• Complete Bundle with PS60 Power Supply — Includes the required PS60 power supply; the SBC240-US ships ready for immediate deployment without additional accessories.

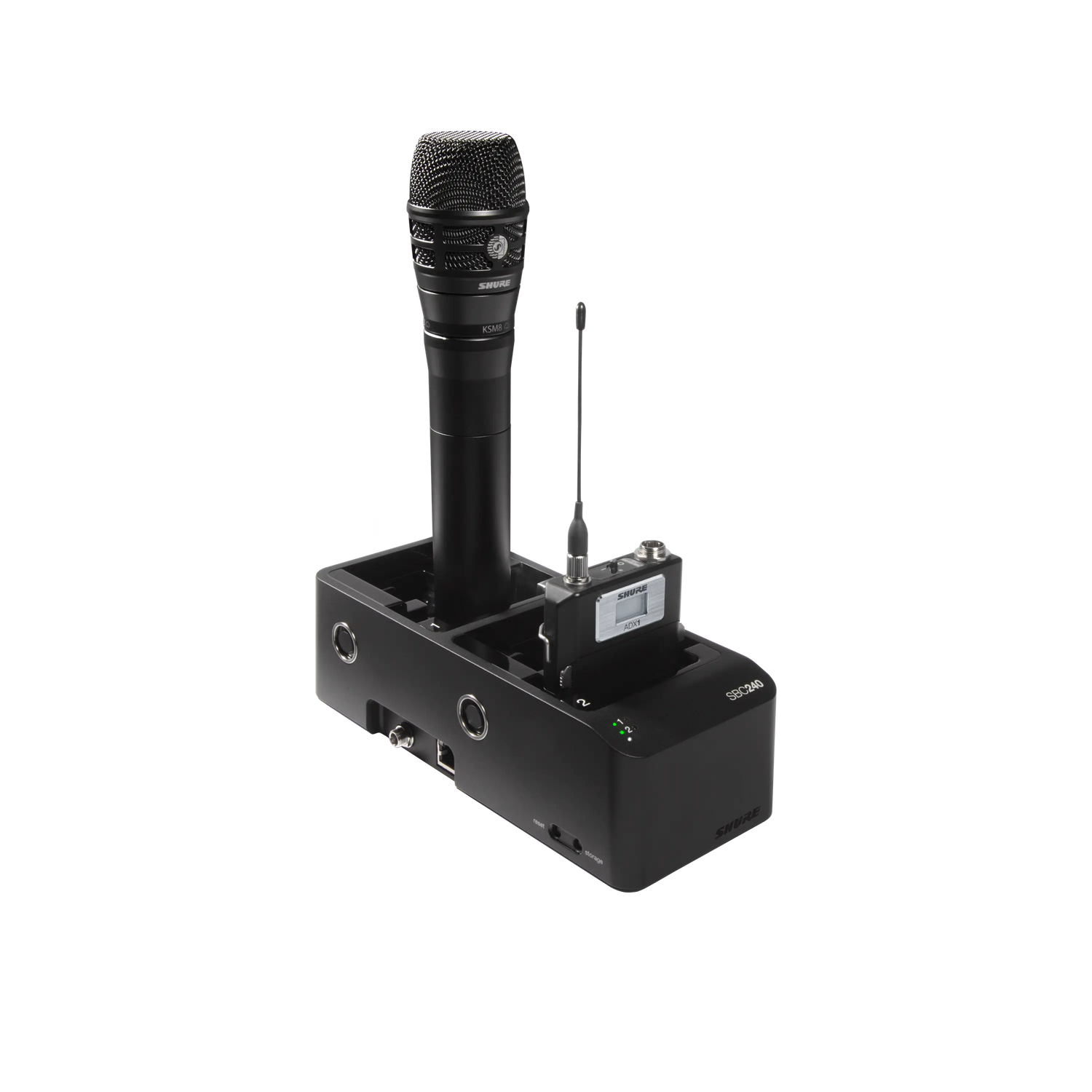

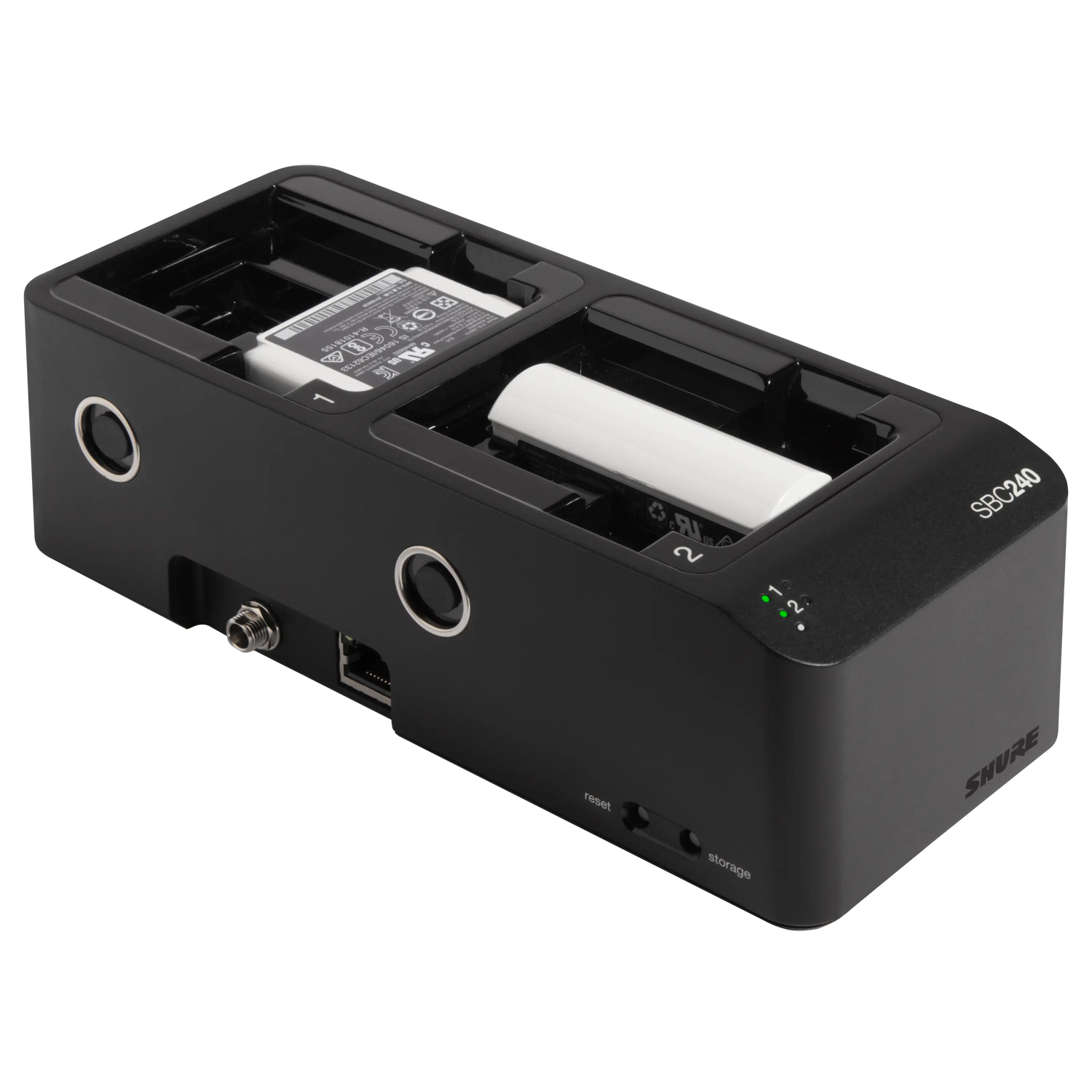

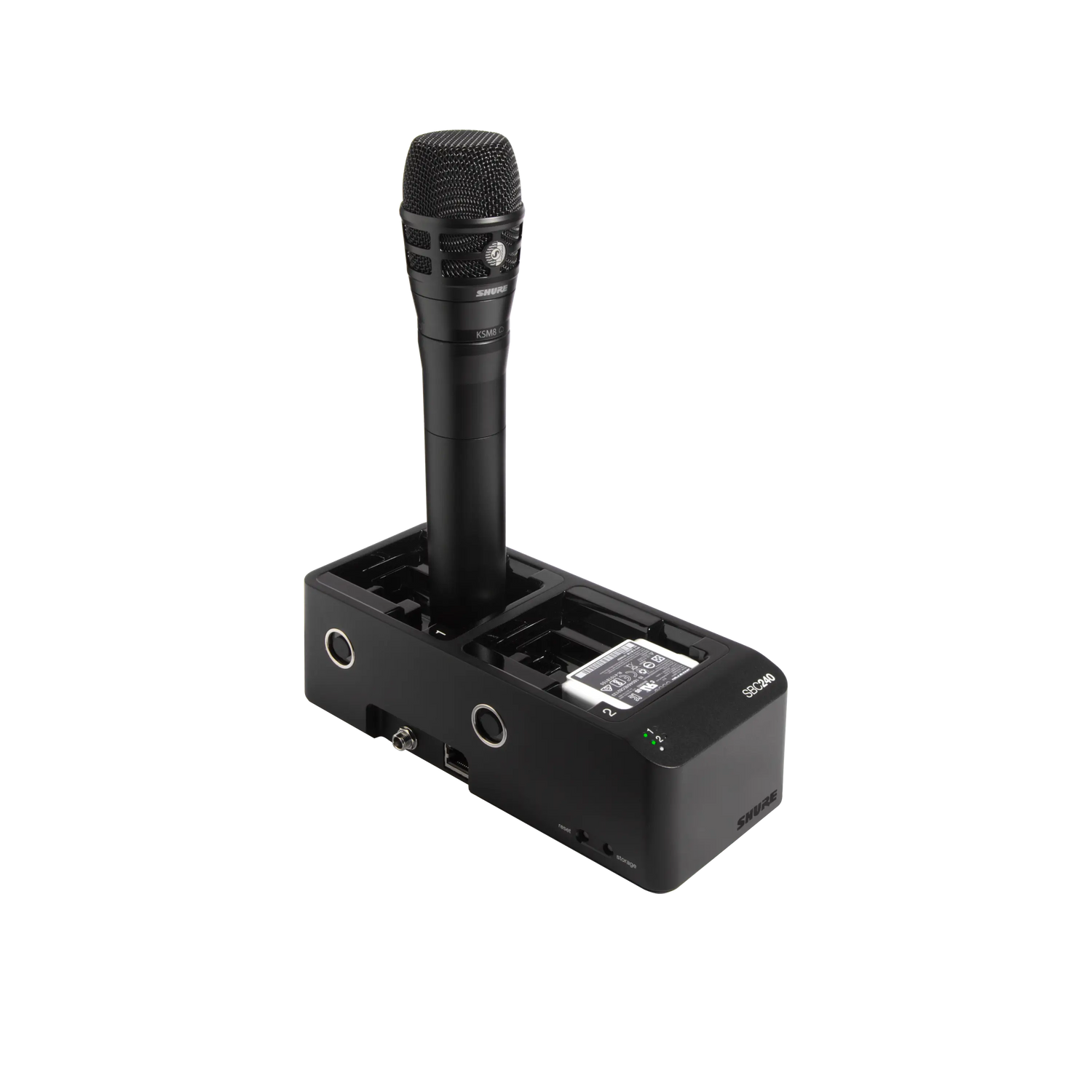

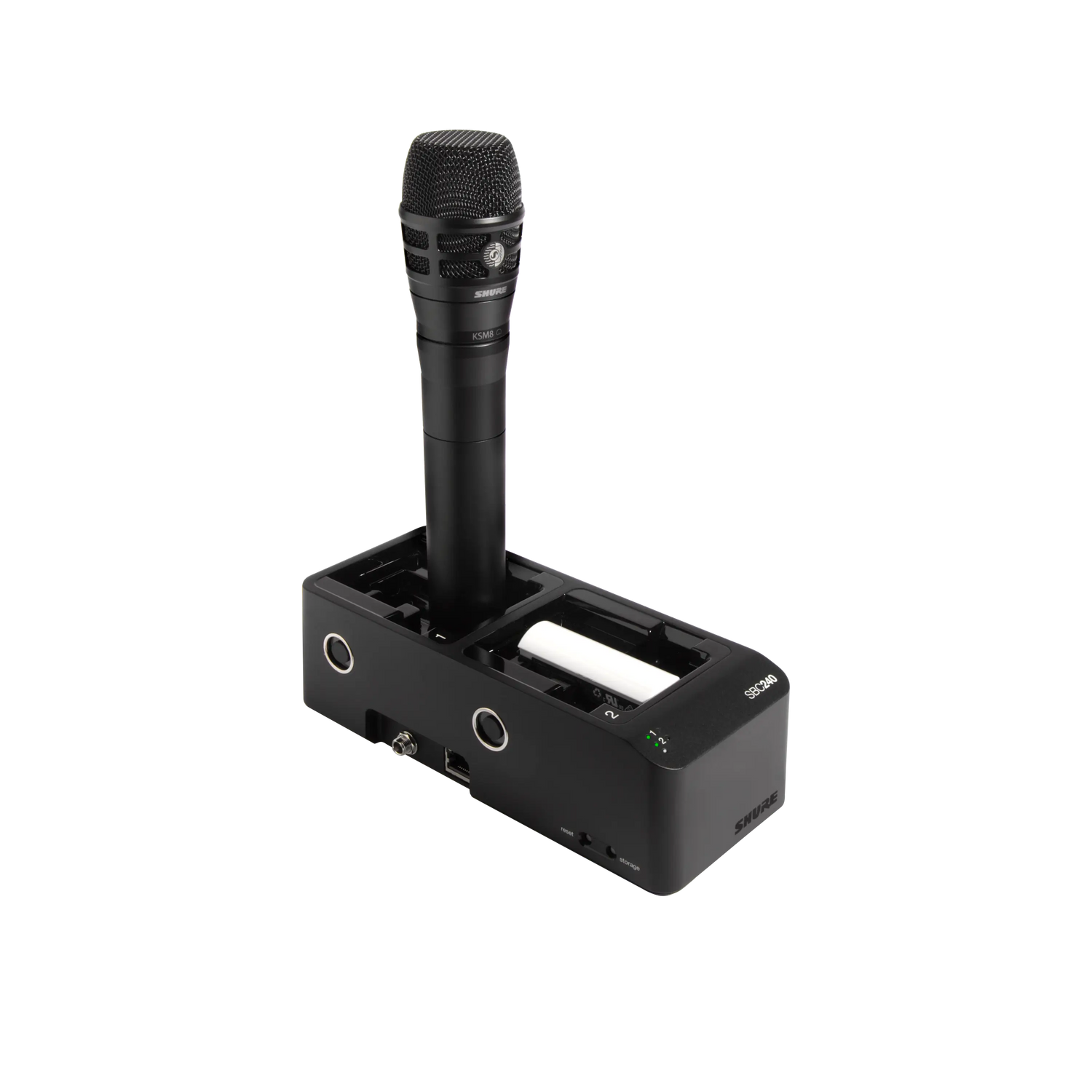

• Axient Digital Transmitter Docking — Charges any combination of 2 SB910/SB920 batteries or docked ADX1, ADX2, or ADX2FD transmitters directly in the charger.
• 1.25 A Charge Current — Achieves 50% capacity in approximately 1 hour and full charge in approximately 3 hours for SB910 and SB920 cells.
• Ethernet-Enabled Wireless Workbench Monitoring — 10/100 Mbps Ethernet provides real-time battery health, charge percentage, temperature, and cycle count data accessible via Shure Wireless Workbench software.
• AMX/Crestron Control System Integration — TCP/IP command string interface on port 2202 integrates with AMX, Crestron, and third-party control systems for unified AV room management.
• 4-Unit Ganging — Up to 4 SBC240 and/or SBC220 units can share a single power supply and Ethernet connection, minimizing rack cabling complexity.
• Storage Mode — Charges or discharges cells to 3.8 V for safe long-term storage; recommended when batteries will be unused for more than 8 days.
• Vertical Mounting Support — Three mounting points allow surface or vertical mounting for space-constrained commercial AV installations.

Typical Applications

• Boardroom and executive conference room Axient Digital wireless mic battery management
• Broadcast studio ADX1/ADX2 transmitter networked docking and health monitoring
• House of worship Axient Digital multi-transmitter charging with Wireless Workbench integration
• Government space and commercial meeting room wireless AV battery logistics
• Training room and auditorium wireless transmitter battery rotation with control system integration

Technical Specifications

Frequently Asked Questions

What is the difference between the SBC240 and SBC240-US?
The SBC240-US includes the Shure PS60 power supply; the SBC240 does not. Both models are otherwise identical in features, compatibility, and specifications. The SBC240-US is the plug-and-play option for immediate deployment.

Which Shure batteries and transmitters are compatible with the SBC240-US?
The SBC240-US supports SB910 and SB920 batteries and ADX1, ADX2, and ADX2FD transmitters from the Axient Digital wireless platform. It is not compatible with SB900-series batteries; use the SBC220 or SBC210 for those.

How many SBC240-US units can share a single power supply?
Up to 4 units in any combination of SBC240 and SBC220 chargers can be ganged to share one PS60 power supply and one Ethernet cable, reducing infrastructure overhead in large commercial wireless deployments.

Can the SBC240-US be controlled by AMX or Crestron?
Yes. The SBC240-US supports TCP/IP command strings on port 2202. Refer to Shure’s command string documentation for the full API used to integrate with AMX, Crestron, and other control platforms.

What warranty is included?
Shure provides a limited 2-year manufacturer warranty on the SBC240-US. Contact Creation Networks for commercial purchasing, volume pricing, and support.
