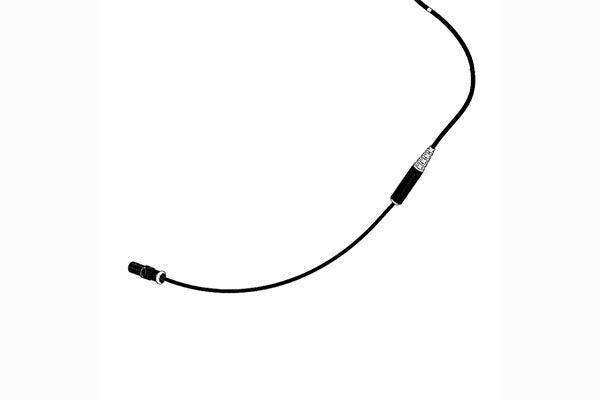

Shure RPMDH5B/O-LM3 – DH5 DuraPlex Replacement Boom Arm, Black, LEMO
Product Overview
The Shure RPMDH5B/O-LM3 is the OEM replacement boom arm and cable assembly for the DH5 DuraPlex omnidirectional headset microphone in black, terminated with a LEMO connector. Designed for theater, broadcast, and corporate event applications requiring IP57-rated headset microphone serviceability, this replacement part restores the DH5 to full operation with the same MEMS capsule and 1.6 mm Plex cable construction used in new DH5 units. The LEMO termination is compatible with Shure LEMO bodypack transmitters including the ADX1-LEMO, UR1M-LEMO, and ULXD1-LEMO.
Product Description
The RPMDH5B/O-LM3 ships as the complete boom arm, DuraPlex MEMS omnidirectional capsule, and 1.6 mm Plex cable assembly pre-terminated with a LEMO connector — the same 3-wire wiring design (pin 2 bias, pin 3 audio, pin 1 ground) used in the factory DH5-LEMO configuration. Cable length is 66 inches (1.67 m). The DH5 MEMS element provides 20 Hz–20 kHz frequency response, 132 dB SPL maximum, and a 101 dB dynamic range. The IP57-rated DuraPlex capsule resists sweat, moisture, and dust, maintaining operation in demanding stage and broadcast environments. The black colorway matches the DH5 black headset frame for a low-visibility, uniform appearance. The boom arm mounts into the DH5 headset frame via the boom pivot assembly and is field-switchable between left and right positioning.
Key Features
- LEMO Connector — Direct-connect termination for Shure LEMO bodypack transmitters including the ADX1-LEMO, UR1M-LEMO, and ULXD1-LEMO; no adapter required for these systems.
- IP57 DuraPlex MEMS Capsule — OEM MEMS omnidirectional element with 20 Hz–20 kHz response, 132 dB SPL max, and certified dust-resistant, waterproof/sweatproof rating.
- 1.6 mm Plex Cable — High-durability cable with no memory effect, rated for extended service in high-use stage and broadcast environments.
- Black Finish — Matches DH5 black headset frame for low-visibility deployment in theater, broadcast, and corporate event applications.
- 66-Inch Cable Length — Adequate routing length for standard bodypack transmitter placement without modification.
- Field-Switchable Boom Position — Mounts into DH5 headset frame boom pivot; left/right positioning switchable per DH5 user guide procedure.
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Headset | Shure DH5 DuraPlex (Black) |
| Connector Type | LEMO (LM3) |
| Wiring | 3-Wire; Pin 2 Bias, Pin 3 Audio, Pin 1 Ground |
| Cable Length | 66 in. (1.67 m) |
| Cable Diameter | 1.6 mm |
| Boom Length | 13.6 cm |
| Microphone Length / Diameter | 14.5 mm / 5.2 mm |
| Net Weight (DH5) | 20.0 g (0.7 oz.) |
| IP Rating | IP57 (dust resistant, waterproof/sweatproof) |
| Capsule Type | MEMS Omnidirectional |
| Frequency Response | 20 Hz – 20 kHz |
| Max SPL | 132.0 dB SPL (1 kHz, 1% THD) |
| Color | Black |
