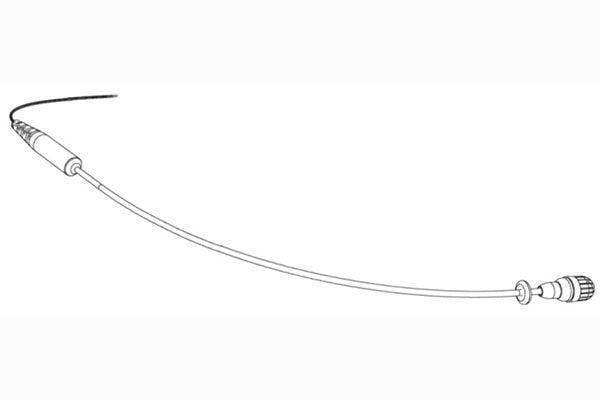

Shure RPM53T/O-MDOT – Replacement Boom Arm for TH53, Tan, Microdot
Product Overview
The Shure RPM53T/O-MDOT is a complete replacement boom arm and cable assembly for the TH53 TwinPlex omnidirectional headset in tan, terminated with a Microdot connector. Designed for theater, broadcast, and commercial live event production, this OEM replacement part restores a worn or damaged TH53 to full operating condition without replacing the entire headset. The Microdot termination is compatible with a wide range of professional wireless bodypack transmitters via standard adapters, making it a practical choice for integrators managing multi-transmitter wireless systems in house of worship, auditorium, and corporate environments.
Product Description
The RPM53T/O-MDOT ships as the complete microphone boom arm, TwinPlex dual-diaphragm capsule, and 1.6 mm Plex cable — the same construction used in new TH53 units. The cable measures 66 inches (1.67 m) and carries nano-coating for moisture and sweat resistance, critical for extended-wear performance in stage and broadcast environments. This Shure TH53 replacement boom arm restores the full TwinPlex element performance of the parent headset: 20 Hz–20 kHz frequency response, 142 dB SPL max, and 69.5 dB SNR. At just 12 g, the assembly preserves the near-weightless comfort that makes the TH53 suitable for all-day wear by presenters, actors, and broadcast talent. The boom snaps into the existing TH53 headset frame (RPM53T-HF) and is field-switchable between left and right positioning without tools.
Key Features
- Microdot Connector — Standard Microdot termination supports a wide range of professional wireless bodypack systems via readily available adapters, including compatibility with Sony Hirose 4-pin bodypacks using a DPA DAD6008 adapter.
- TwinPlex Dual-Diaphragm Capsule — OEM capsule identical to new TH53 production, delivering flat omnidirectional response across 20 Hz–20 kHz with robust low-frequency performance.
- 1.6 mm Plex Cable — Ultra-thin, high-durability cable with redundant grounding and nano-coating for sweat and moisture resistance; tested to exceed standard cable lifespans in demanding stage use.
- Tan Finish — Matches the TH53 tan headset frame for a discreet, low-visibility appearance against lighter skin tones in theater and broadcast applications.
- 66-Inch Cable Length — Provides adequate routing length from boom tip to bodypack transmitter without modification or extension.
- 12 g Lightweight Assembly — Boom arm plus cable weighs just 12.0 g (0.42 oz.), maintaining the TH53's class-leading comfort for extended wear.
- Tool-Free Field Replacement — Snaps directly into the TH53 headset frame; left/right boom positioning is switchable after installation per TH53 user guide procedure.
Typical Applications
- House of worship — replacement parts for wireless headset systems used in sermon and musical performance reinforcement
- Broadcast studio — maintenance of talent headset microphones for on-camera presenters and radio hosts
- Auditorium — headset microphone upkeep for spoken word and theatrical performance applications
- Commercial meeting space — corporate event and all-hands presentation headset lifecycle management
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Headset | Shure TH53 TwinPlex (Tan) |
| Connector Type | Microdot (MDOT) |
| Cable Length | 66 in. (1.67 m) |
| Cable Diameter | 1.6 mm |
| Boom Length | 13.6 cm |
| Microphone Length | 13.5 mm |
| Microphone Diameter | 5.6 mm |
| Net Weight (boom + cable) | 12.0 g (0.42 oz.) |
| Housing | Molded ABS |
| Color | Tan |
Frequently Asked Questions
Which headsets is the RPM53T/O-MDOT compatible with?
This assembly is designed specifically for the Shure TH53 TwinPlex headset in tan. It is not compatible with the DH5 DuraPlex or other Shure headset lines.
What bodypack transmitters work with the Microdot connector?
The Microdot connector is compatible with a wide range of professional wireless systems via standard Microdot adapters. For Sony Hirose 4-pin bodypacks, Shure recommends the DPA DAD6008 adapter. Confirm adapter requirements with your specific transmitter's documentation.
Does installation require special tools?
No. The boom arm snaps into the TH53 headset frame and can be repositioned between left and right mounting without tools. Refer to the TH53 user guide for step-by-step boom reversal instructions.
Is the headset frame included?
No. This SKU is the boom arm and cable assembly only. The tan headset frame is available separately as RPM53T-HF.
