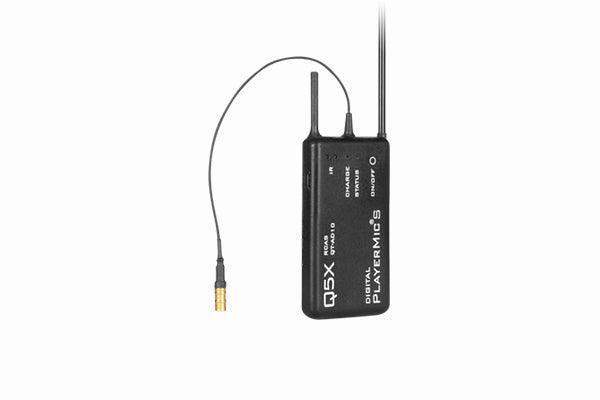

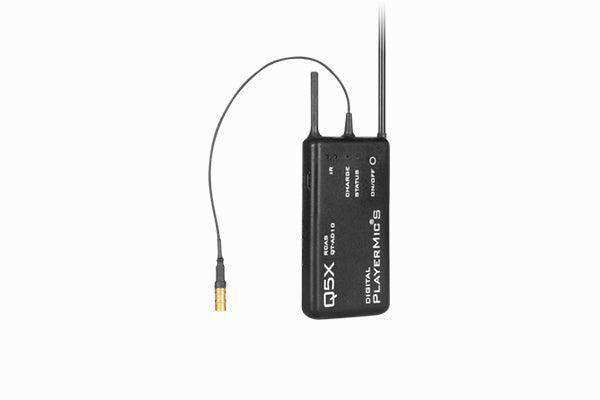

Shure QTAD10PS – Q5X PlayerMic Short Bodypack Transmitter

Product Overview

The Shure QTAD10PS is the short-form version of the Q5X PlayerMic® flexible rubber bodypack transmitter, co-developed by Q5X and Shure for professional sports broadcast applications. Engineered to integrate with Axient Digital wireless receivers, it delivers encrypted digital transmission in a nearly indestructible, concealable form factor that protects athletes from injury. Available in G56, G57, and K55 frequency bands covering the 470–663 MHz range, the QTAD10PS is the choice for broadcast AV integrators deploying professional wireless for sports, performance, and live entertainment environments.

Product Description

Originally developed for the NBA, the Q5X PlayerMic design addresses the unique challenge of capturing clean audio from athletes in motion while maintaining performer safety. The one-piece thin rubber body bends and flexes with the wearer, making it extraordinarily concealable and resistant to impact damage. The short version provides approximately 4 hours of run time at 10 mW output—suited for game-length or event-length deployments. A 1-pin LEMO microphone connector attaches via a short pigtail for low-profile mic mounting. All setup, monitoring, and frequency management are handled through the Q5X MicCommander™ handheld remote control (sold separately). The transmitter pairs with Shure Axient Digital receivers for best-in-class digital wireless transmission with AES encryption. For the compatible dual-channel receiver, see the Shure AD4DUS Axient Digital Two-Channel Receiver.

Key Features

• One-Piece Flexible Rubber Design — The thin, bendable polymer body protects athletes from injury should they fall or absorb a direct impact, making it the only bodypack transmitter purpose-built for contact sports and high-activity broadcast applications.
• Extraordinary Concealability — Ultra-low profile and flexible construction allows the transmitter to be concealed beneath uniforms, pads, or costumes without visible bulk or interference with movement.
• Axient Digital Compatibility — Integrates with Shure Axient Digital wireless receivers, delivering superior digital transmission, spectrum efficiency, and network control through ShowLink.
• AES Encryption — Encrypted transmission protects audio content from interception, meeting security requirements for broadcast and live event productions.
• Short Run Time (4 Hours at 10 mW) — Optimized for game-length and performance-length deployments with an internal rechargeable lithium-ion battery.
• 1-Pin LEMO Microphone Connector — Industry-standard connector with short pigtail accommodates professional sport and entertainment microphone accessories.
• Water-Resistant Construction — Designed to withstand sweat, moisture, and the physical demands of live sports broadcasting.
• Q5X MicCommander Compatible — All remote control, frequency management, and monitoring functions are handled via the Q5X MicCommander™ handheld remote (sold separately; required for operation).

Typical Applications

• Broadcast studio
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the Q5X MicCommander required to operate the QTAD10PS?
Yes. All essential setup, frequency management, and monitoring functions for the QTAD10PS are coordinated through the Q5X MicCommander™ handheld remote control, which is sold separately and required for operation.

What Axient Digital receivers are compatible with the QTAD10PS?
The QTAD10PS is compatible with Shure Axient Digital wireless receivers, including the AD4D dual-channel and AD4Q quad-channel receivers. It is not compatible with ULX-D, QLX-D, or PSM systems.

What is the difference between the regular and short PlayerMic versions?
The regular version (QTAD10P) provides approximately 8 hours of run time at 10 mW. The short version (QTAD10PS) provides approximately 4 hours at 10 mW and is physically shorter, offering increased concealability for smaller performers or tighter placement requirements.

Who handles support for the QTAD10PS?
The Q5X PlayerMic is distributed by Shure but is a Q5X product. For technical support and service, contact Q5X directly at www.q5x.com.

Can this transmitter be used in non-sports broadcast applications?
Yes. While developed for sports broadcasting, the QTAD10PS is equally suited for live entertainment, theater productions, and any application requiring a concealable, impact-resistant wireless bodypack with Axient Digital performance.
