Shure Directional Antenna for PSM Systems (470-952MHz) - PA805SWB

Product Overview

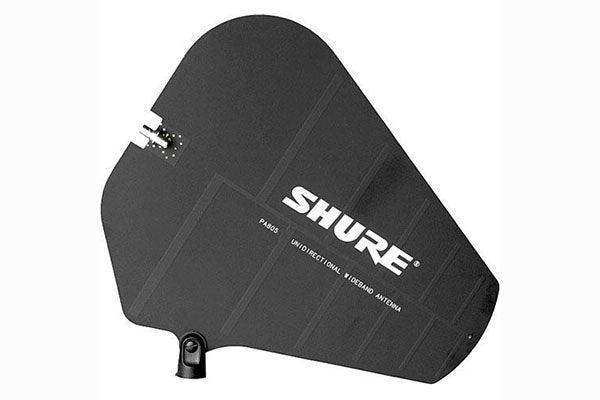

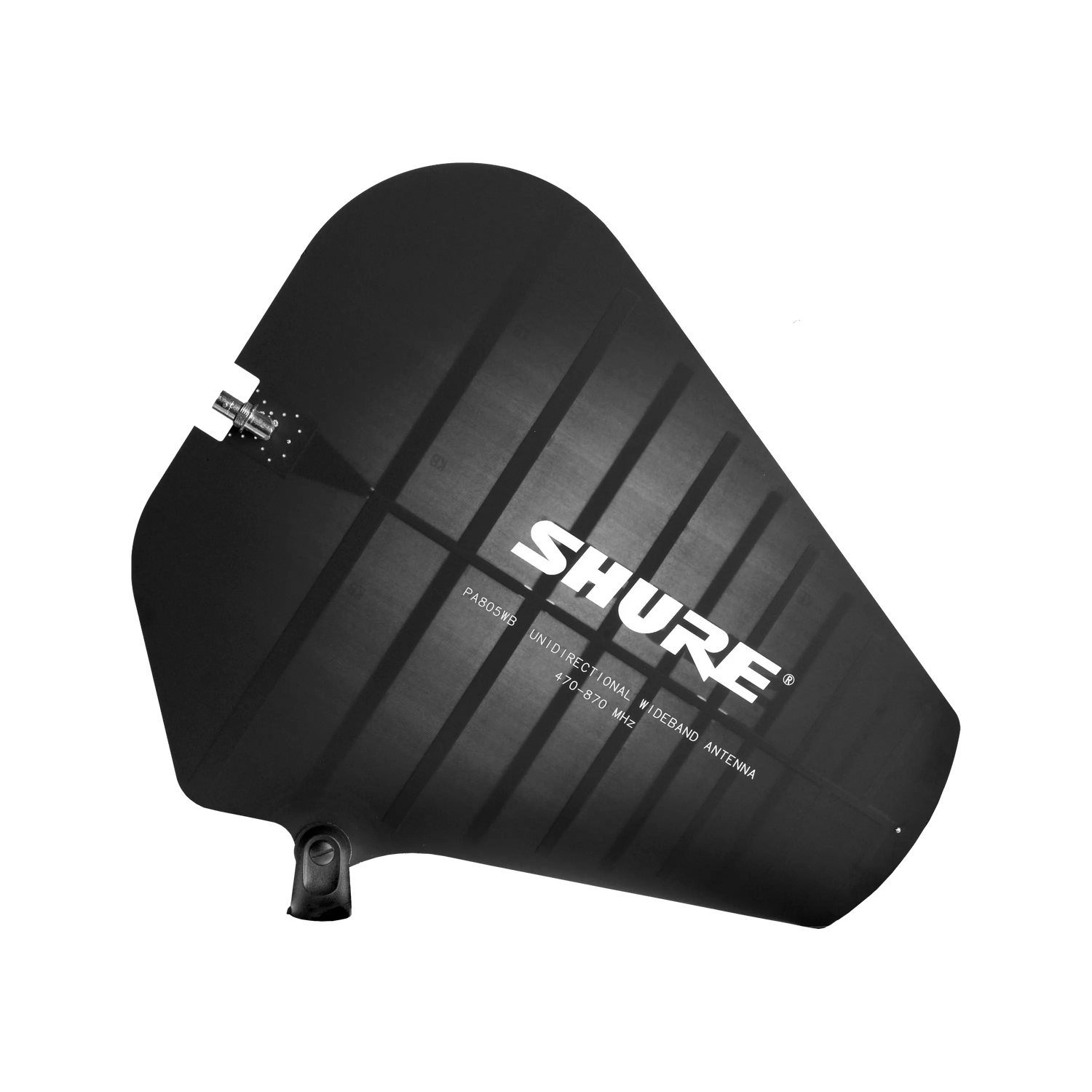

The Shure PA805SWB is a passive directional antenna for PSM wireless systems, engineered to extend range and reduce interference in commercial AV installations. Covering a wide 470-952 MHz range with 6.5 dBi of typical gain, it focuses RF energy toward the coverage area instead of radiating in all directions. For integrators deploying in-ear monitoring in fixed-install venues, this directional PSM antenna improves signal reliability over standard omnidirectional half-wave antennas. It mounts on a microphone stand or to a wall using the integral swivel adapter bracket.

Product Description

The PA805SWB delivers a directional, cardioid radiation pattern with a 100-degree 3 dB beam width, concentrating transmit energy where performers and presenters need it. Its wideband 470-952 MHz coverage makes it a flexible choice for installations that span multiple PSM frequency bands. A 50 ohm female BNC connector and included 10 ft BNC-to-BNC coaxial cable simplify connection to a PSM transmitter or antenna combiner. The positive-action swivel adapter adjusts from 0 to 90 degrees and accepts a standard 5/8 in.-27 thread for mic-stand or wall mounting in commercial deployments. Shure recommends low-loss 50 ohm cable such as the UA825 (25 ft) or UA850 (50 ft) for longer runs to minimize signal loss. When combining multiple PSM antennas, pair it with a Shure PA821B antenna combiner. For narrow-band 944-952 MHz deployments, the PA805X is the compact alternative.

Key Features

• Directional Cardioid Pattern — Focuses RF toward the coverage area with a 100-degree 3 dB beam width to reduce interference and reflections.
• Wideband 470-952 MHz Coverage — Supports a broad frequency range that spans multiple PSM bands for flexible installation.
• 6.5 dBi Typical Gain — Extends usable range compared with omnidirectional half-wave antennas in commercial venues.
• Integral Swivel Adapter — Adjusts from 0 to 90 degrees with a standard 5/8 in.-27 thread for mic-stand or wall mounting.

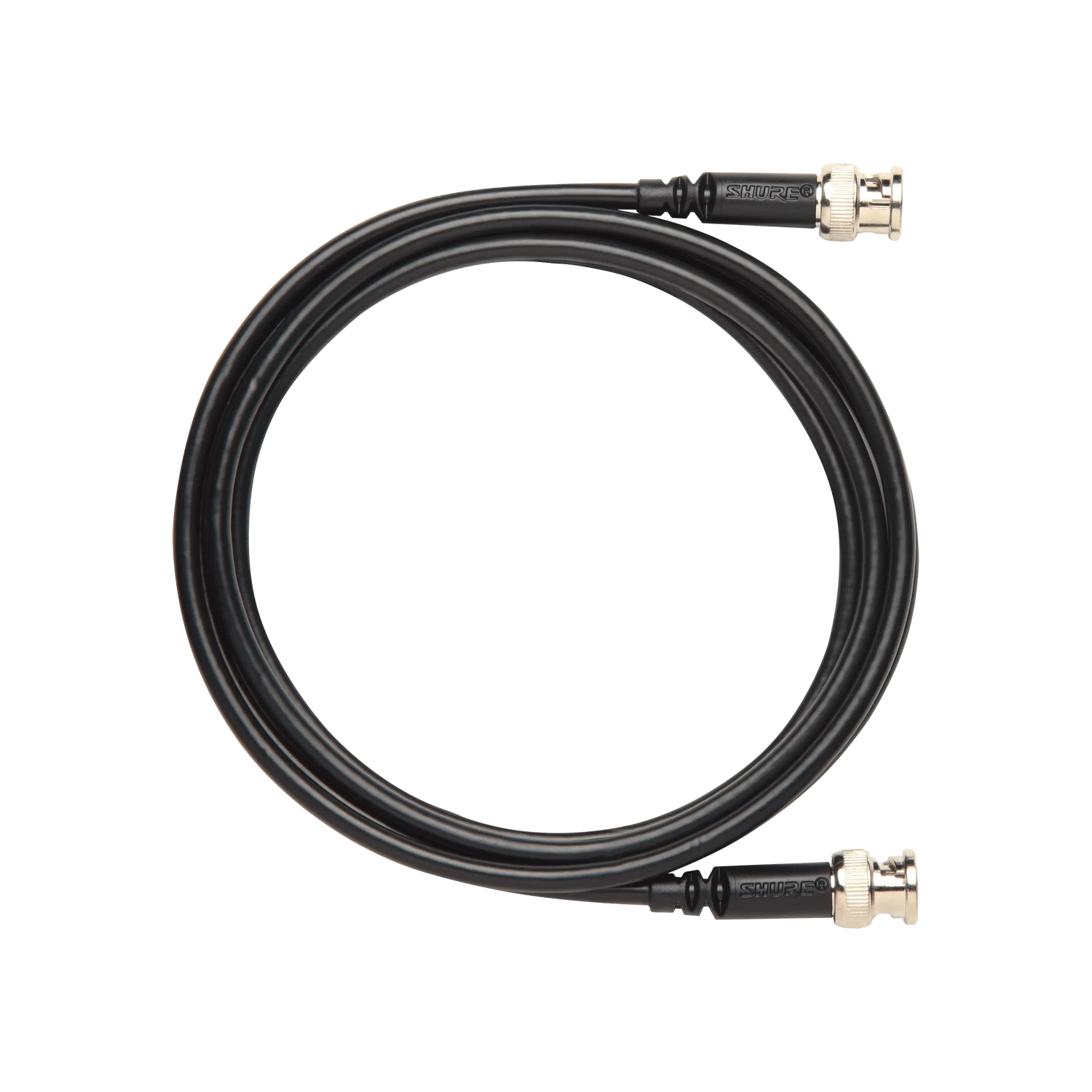

• BNC Connectivity — A 50 ohm female BNC connector and included 10 ft coaxial cable streamline connection to transmitters or combiners.

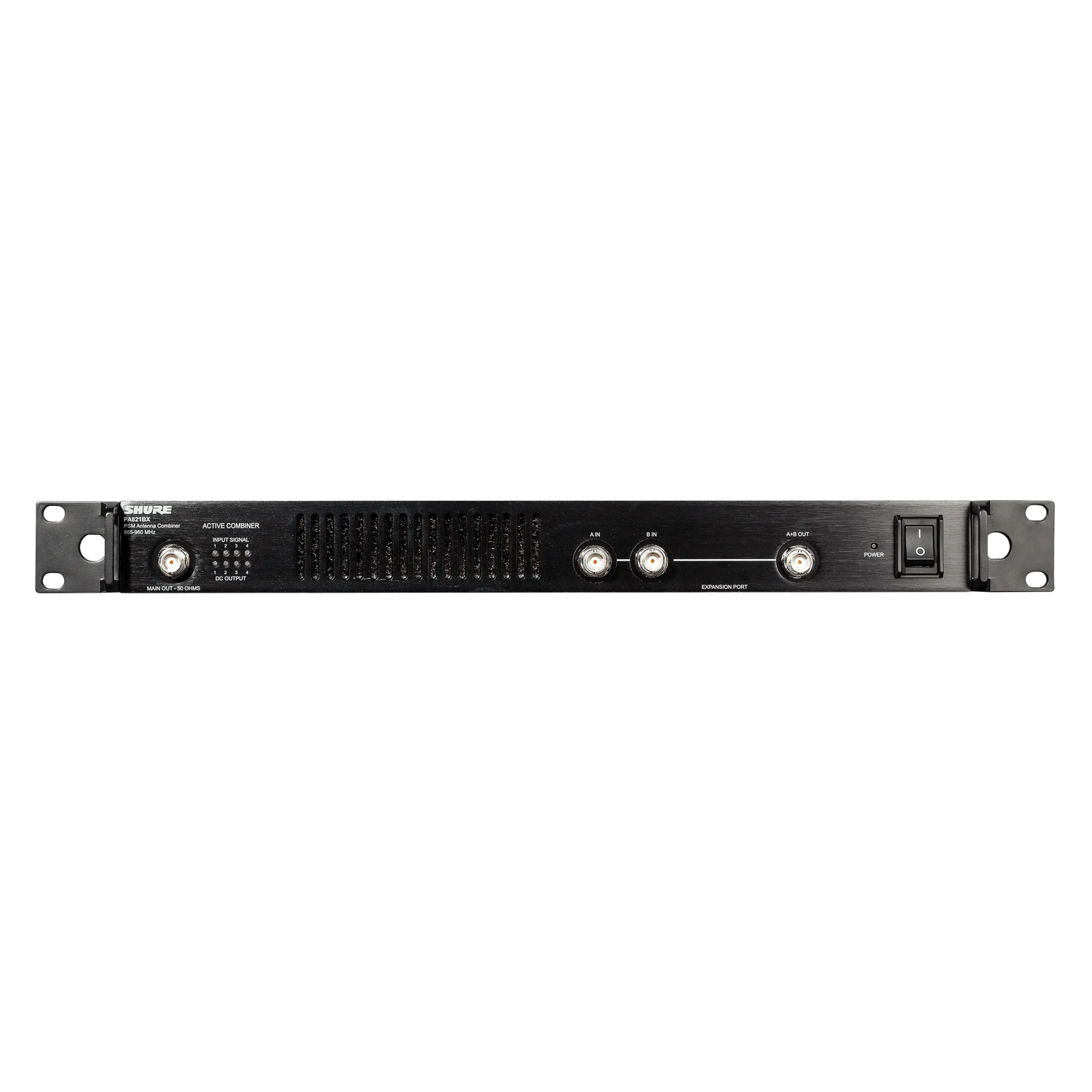

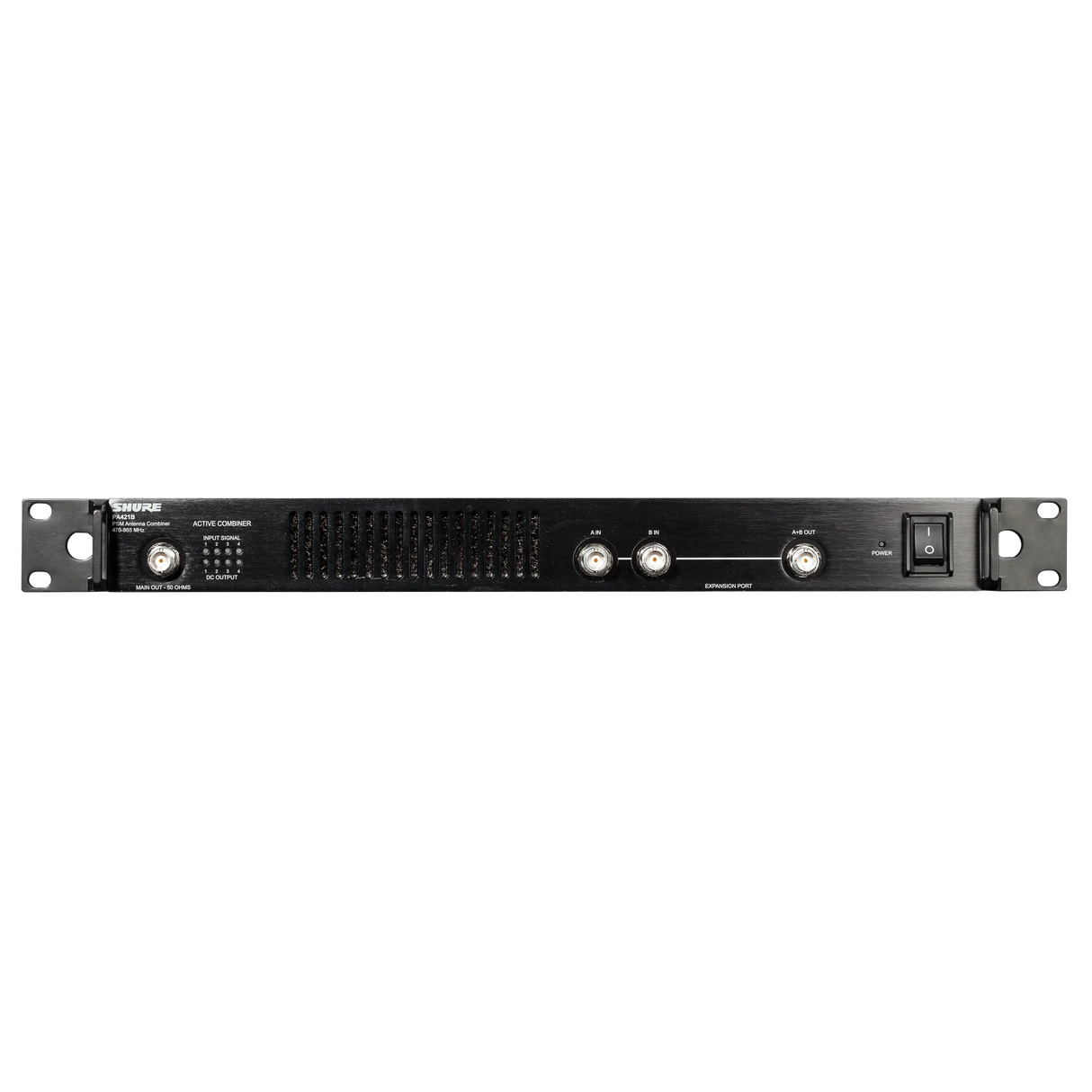

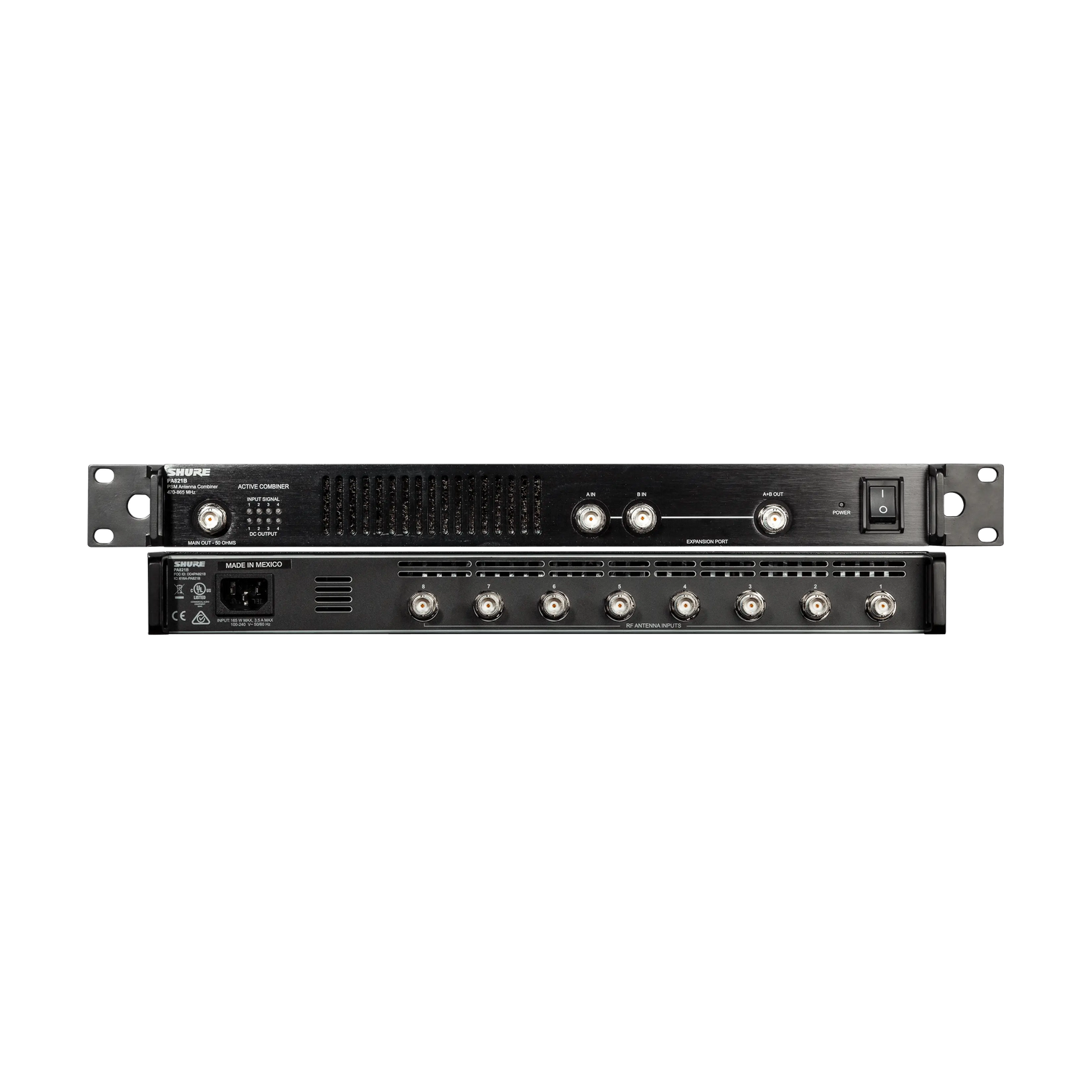

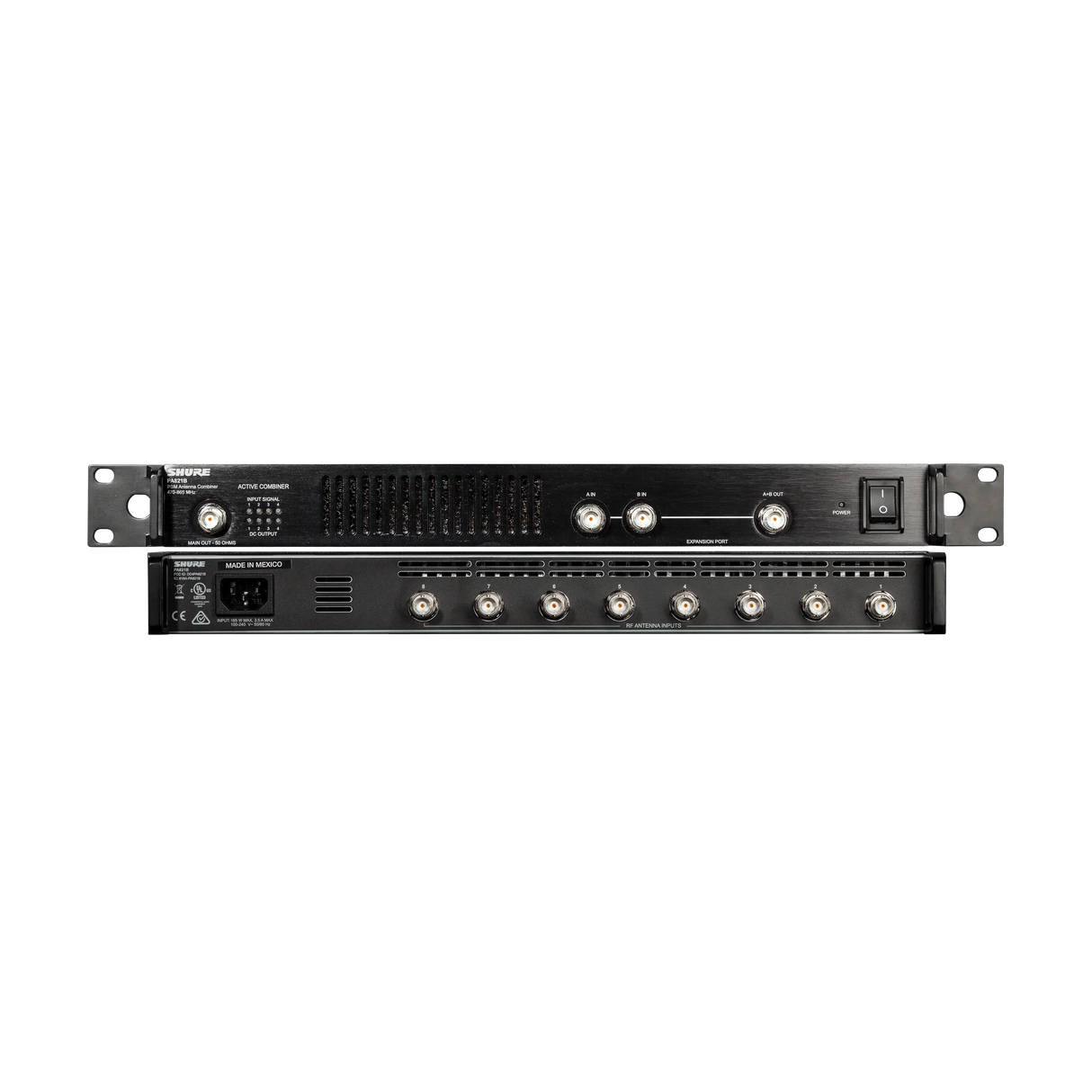

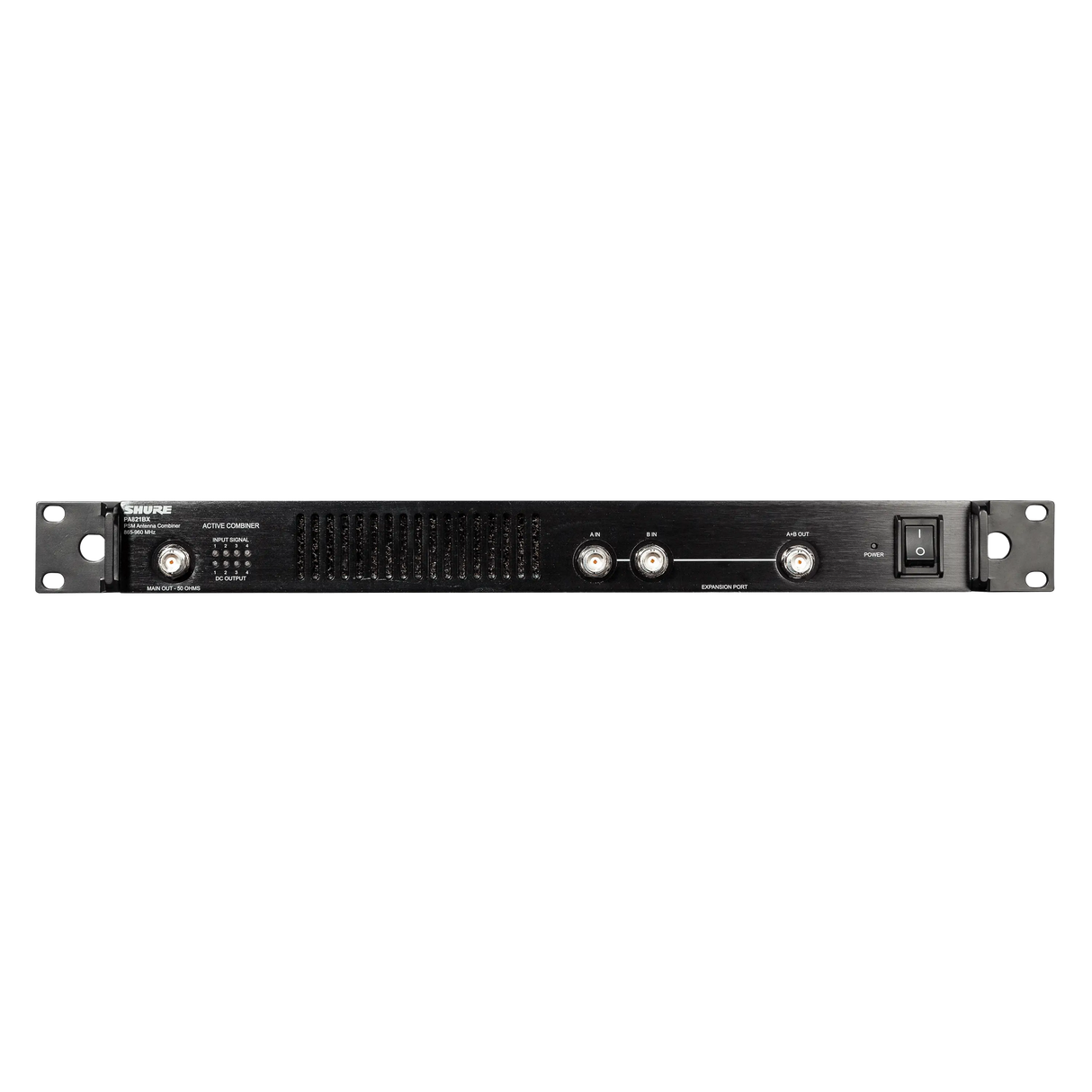

• Combiner-Ready — Works with a PA821 antenna combiner when multiple PSM systems share a single transmit antenna.

Typical Applications

• House of worship
• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which PSM systems is the PA805SWB compatible with?
Its wide 470-952 MHz range covers Shure PSM transmitters operating across that span, making it suitable for most install PSM deployments.

How does a directional antenna improve performance?
By focusing RF in a cardioid pattern with 100-degree beam width and 6.5 dBi gain, it extends range and reduces interference compared with omnidirectional half-wave antennas.

How is it mounted in an installation?
It mounts on a microphone stand or to a wall using the integral swivel adapter, which adjusts from 0 to 90 degrees and accepts a standard 5/8 in.-27 thread.

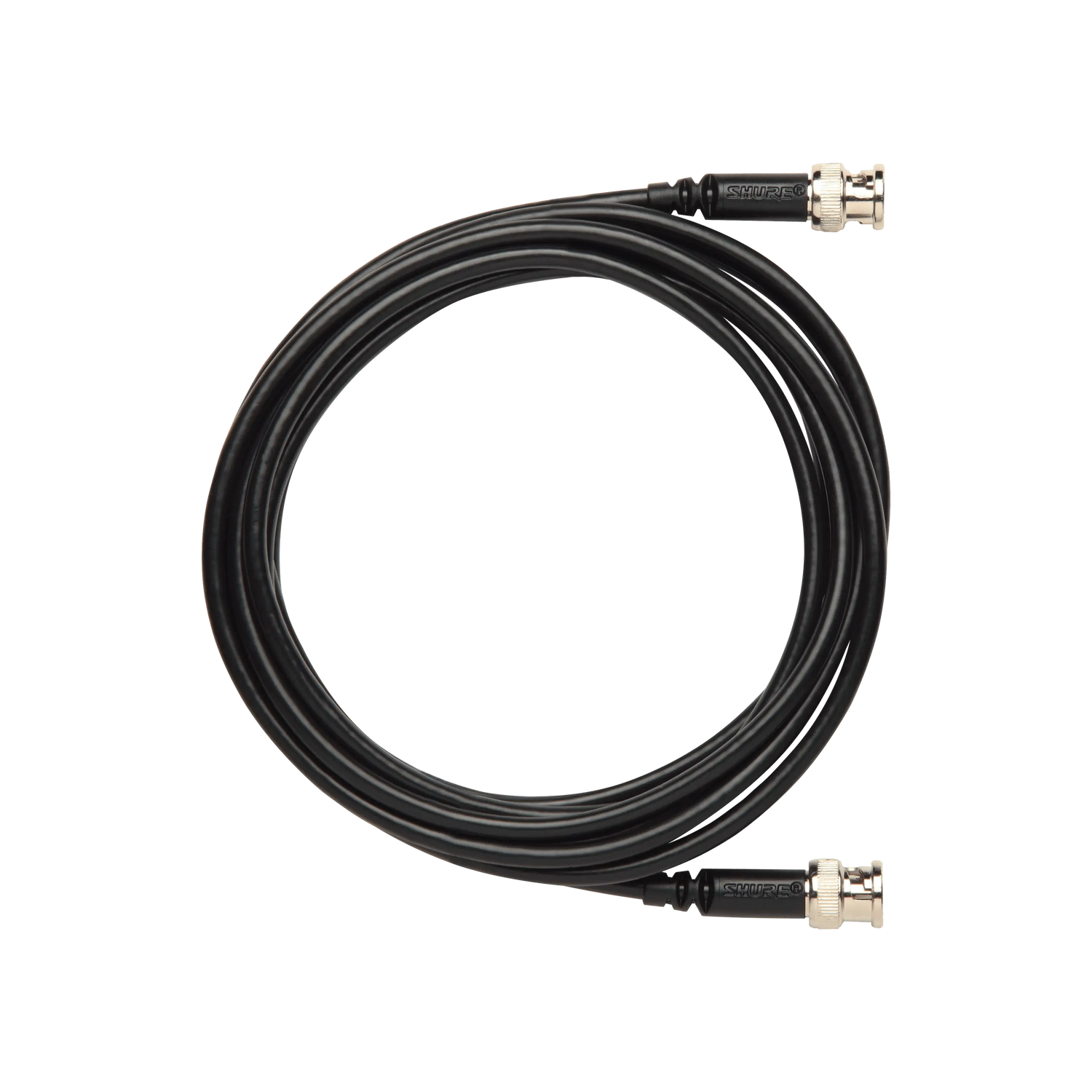

What cable should I use for longer runs?
Shure recommends low-loss 50 ohm cable such as the UA825 (25 ft) or UA850 (50 ft); the antenna ships with a 10 ft BNC-to-BNC cable for shorter runs.

Can I use multiple antennas together?
To combine several PSM systems onto shared antennas, use a PA821 antenna combiner rather than mounting many independent transmit antennas.

Is support available?
The PA805SWB is covered by Shure's standard manufacturer warranty, and Creation Networks can assist with RF planning and integration.
