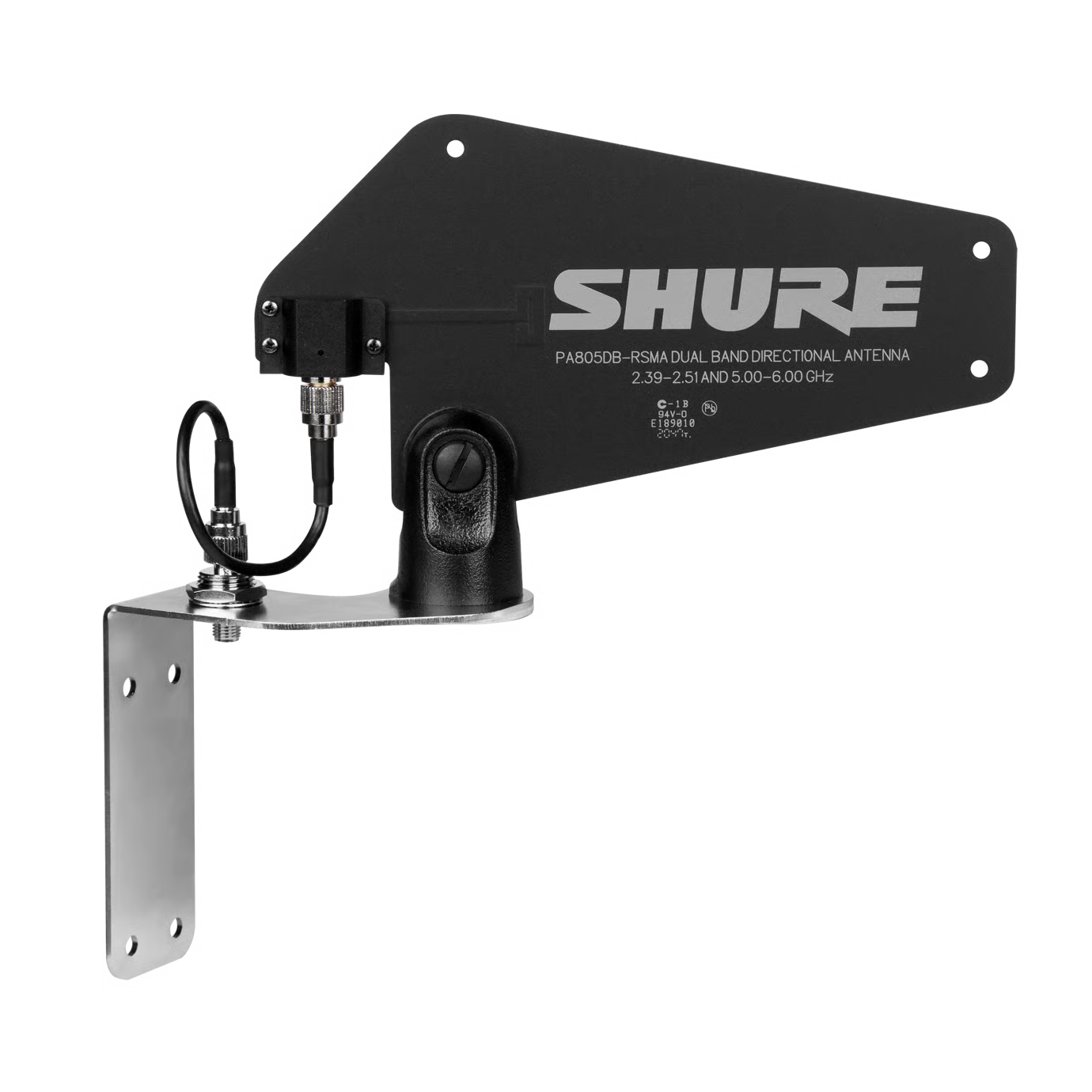

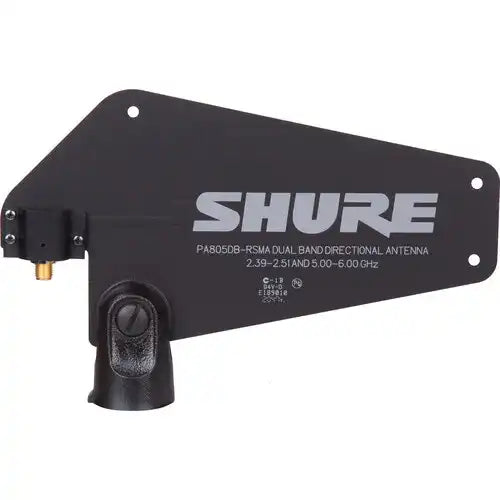

Shure PA805DB-RSMA Passive Dual Band Directional Antenna
Shure PA805DB-RSMA Passive Dual Band Directional Antenna is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure PA805DB-RSMA Passive Dual Band Directional Antenna
The Shure PA805DB-RSMA is a passive directional antenna designed to improve wireless reception for GLX-D+ Dual Band systems, including the GLXD4R+ receiver and GLXD+FM Dual Band Frequency Manager. It provides up to 8 dB of passive directional gain while offering a 24 dB front-to-back ratio for effective rejection of off-axis interference from 2.4 GHz and 5.8 GHz sources. This enhances range and signal reliability in challenging RF environments such as live events, installed sound systems, corporate venues, and houses of worship.
The antenna is compatible with Shure’s Dual Band wireless technology and includes a 3 m (10 ft) RSMA cable for flexible placement. Its design allows painting with non-metallic paint to better match the mounting surface for discreet installation.
| Feature | Benefit |
|---|---|
| 8 dB Passive Directional Gain | Improves wireless reception range and signal strength |
| 24 dB Front-to-Back Ratio | Provides strong rejection of off-axis interference from 2.4 GHz and 5.8 GHz sources |
| Dual Band Operation | Supports both 2.4 GHz and 5.8 GHz frequencies used by GLX-D+ systems |
| Includes 3 m RSMA Cable | Allows convenient and flexible antenna placement relative to the receiver |
| Paintable Design | Can be painted with non-metallic paint to blend with the installation environment |
| Passive Operation | Requires no external power, simplifying setup and reducing potential failure points |
| Specification | Details |
|---|---|
| Antenna Type | Passive Dual Band Directional |
| Gain | 8 dB (typical directional gain) |
| Front-to-Back Ratio | 24 dB |
| Frequency Range | 2.4 GHz and 5.8 GHz |
| Connector | RSMA |
| Included Cable | 3 m (10 ft) RSMA cable |
| Mounting | Compatible with standard microphone stands or wall mounting |
| Applications | GLXD4R+ receivers and GLXD+FM Dual Band Frequency Manager |
| Aspect | Shure PA805DB-RSMA | Shure PA805SWB | Typical Omnidirectional Antenna |
|---|---|---|---|
| Antenna Type | Passive Directional | Passive Directional | Omnidirectional |
| Gain | 8 dB directional | Varies by band | Lower directional gain |
| Interference Rejection | 24 dB front-to-back | Band-specific | Minimal off-axis rejection |
| Frequency Support | Dual Band (2.4/5.8 GHz) | Single or specific bands | Varies |
| Cable Included | 3 m RSMA | Varies | Often none |
| Primary Use | GLX-D+ Dual Band systems | Specific wireless bands | General coverage |
| Paintable | Yes (non-metallic paint) | Limited | Varies |
FAQ
- What systems is the PA805DB-RSMA compatible with? It is designed for use with Shure GLXD4R+ receivers and the GLXD+FM Dual Band Frequency Manager.
- Does it require power? No, it is a passive antenna and does not require external power.
- Can the antenna be painted? Yes, it can be painted with non-metallic paint to match the mounting surface for discreet installation.
- What cable is included? A 3 m (10 ft) RSMA cable is included for connection to the receiver.
- What is the main benefit of using this directional antenna? It improves reception range and provides better rejection of off-axis interference compared to standard antennas.
- How should it be positioned? Aim the front of the antenna toward the transmitters for optimal gain and interference rejection.
