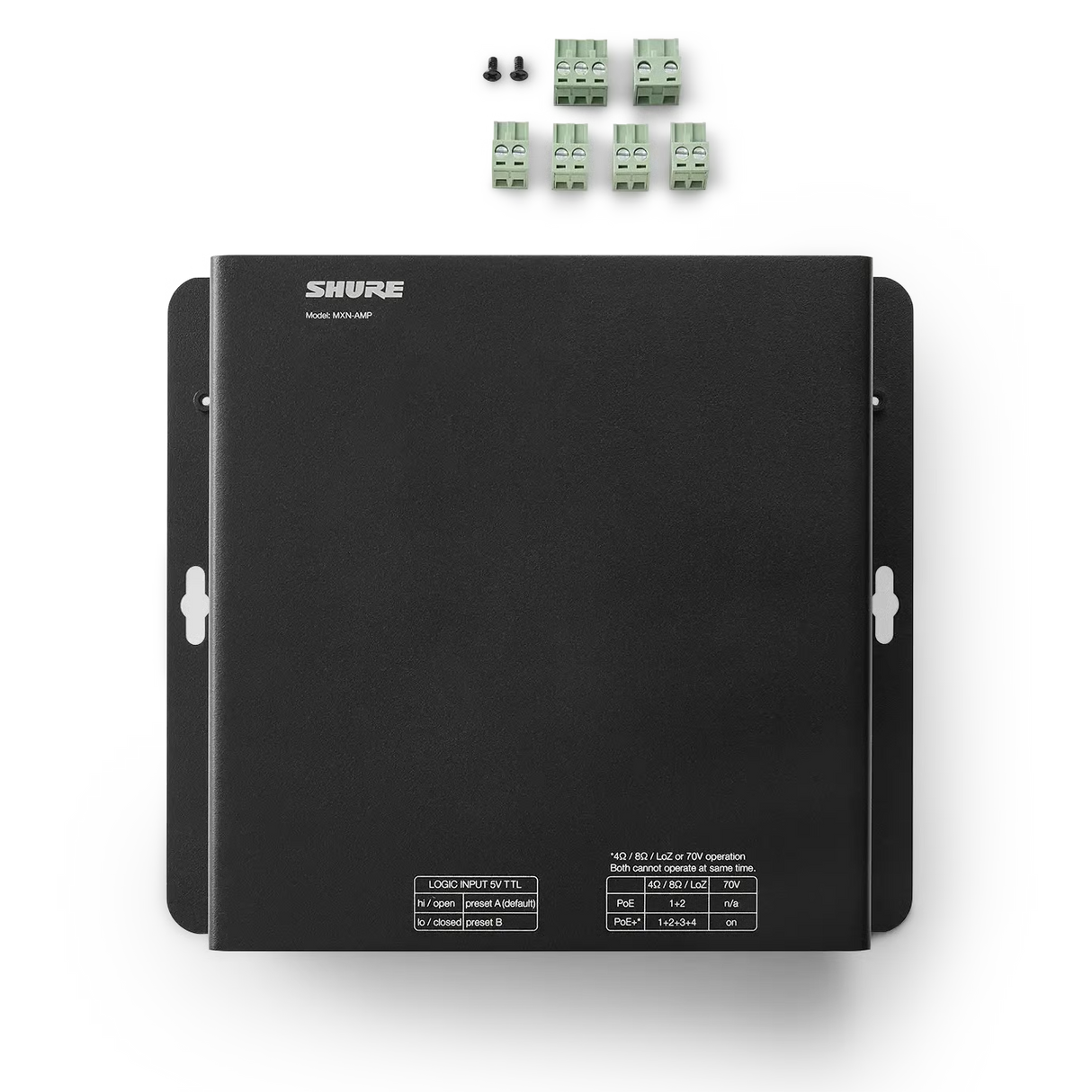

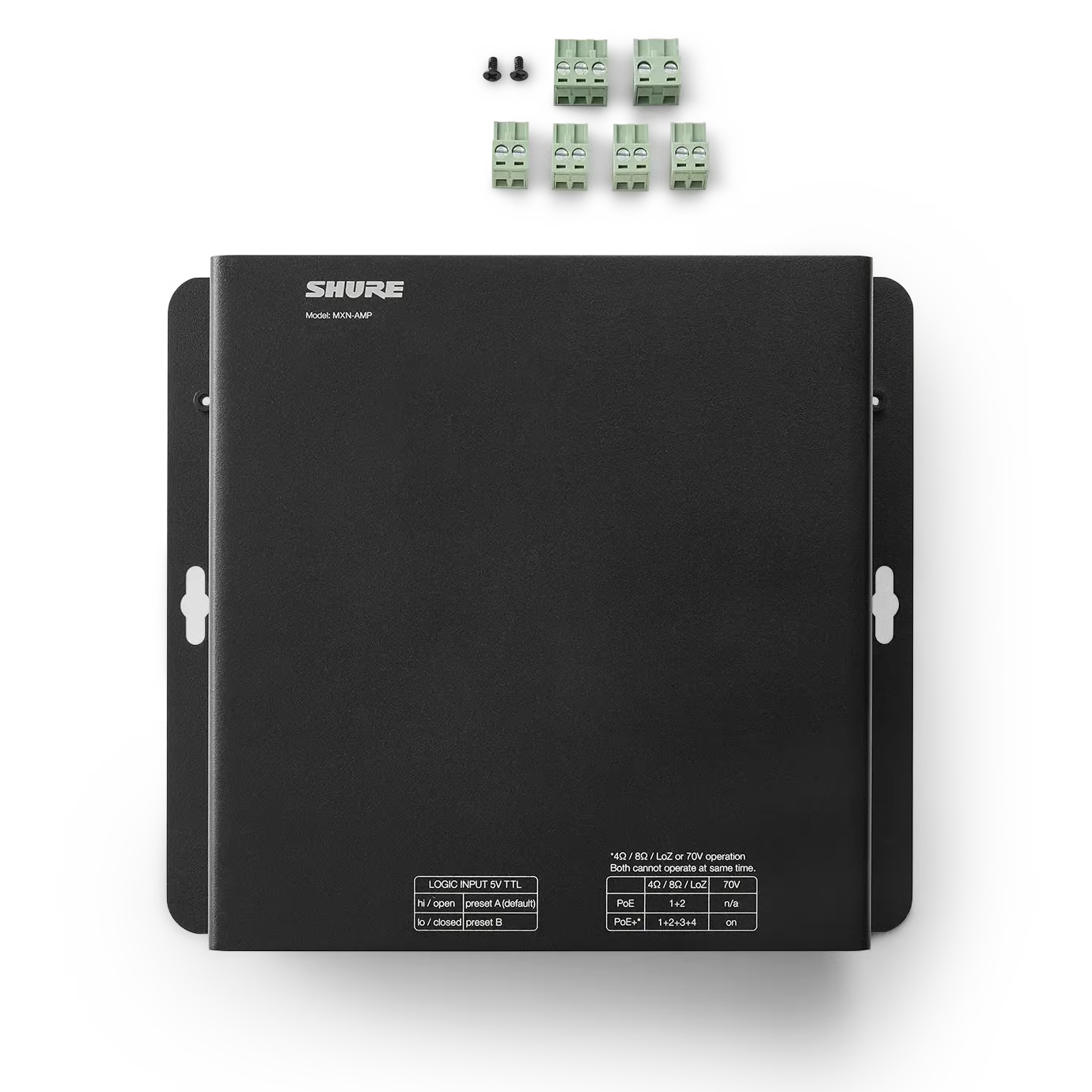

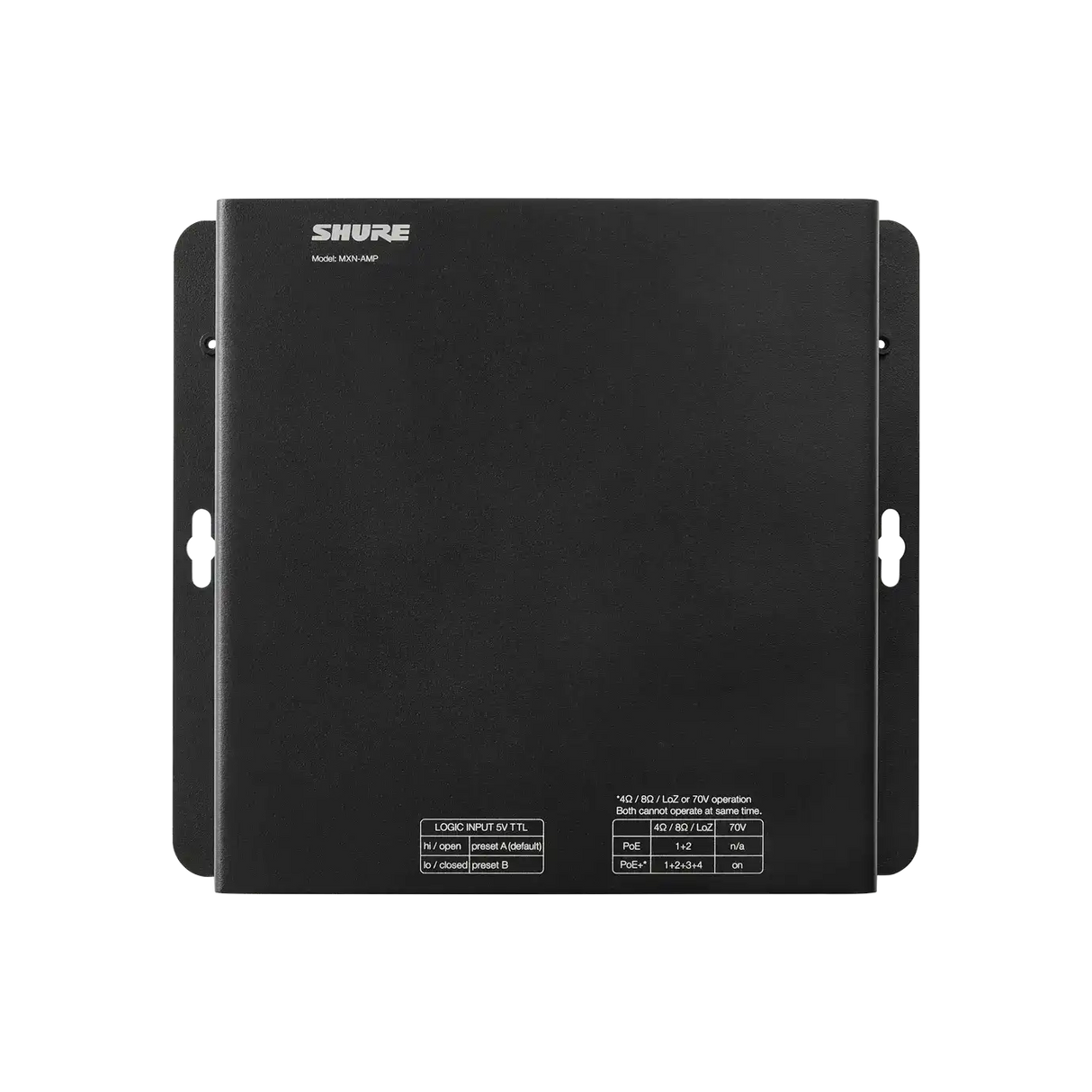

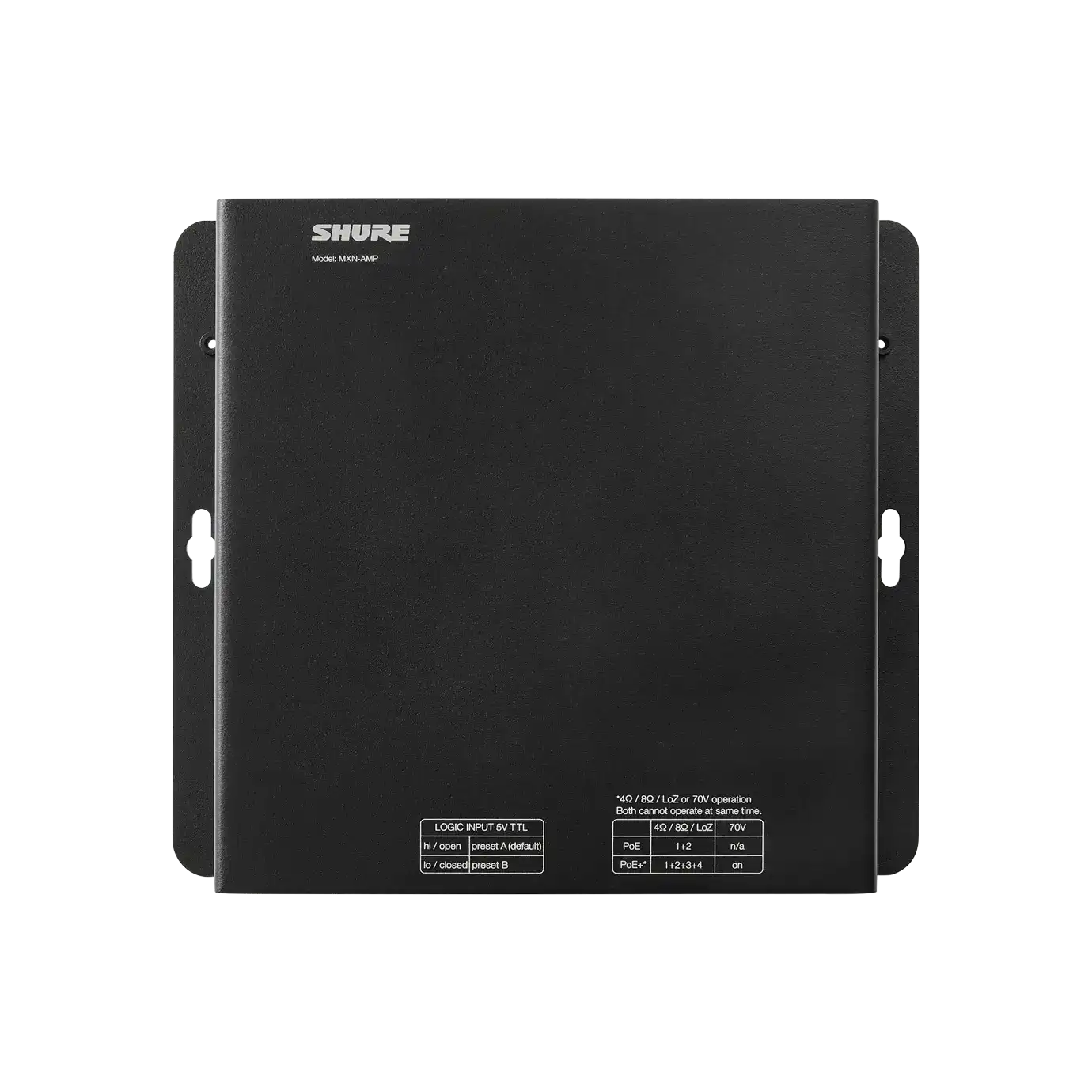

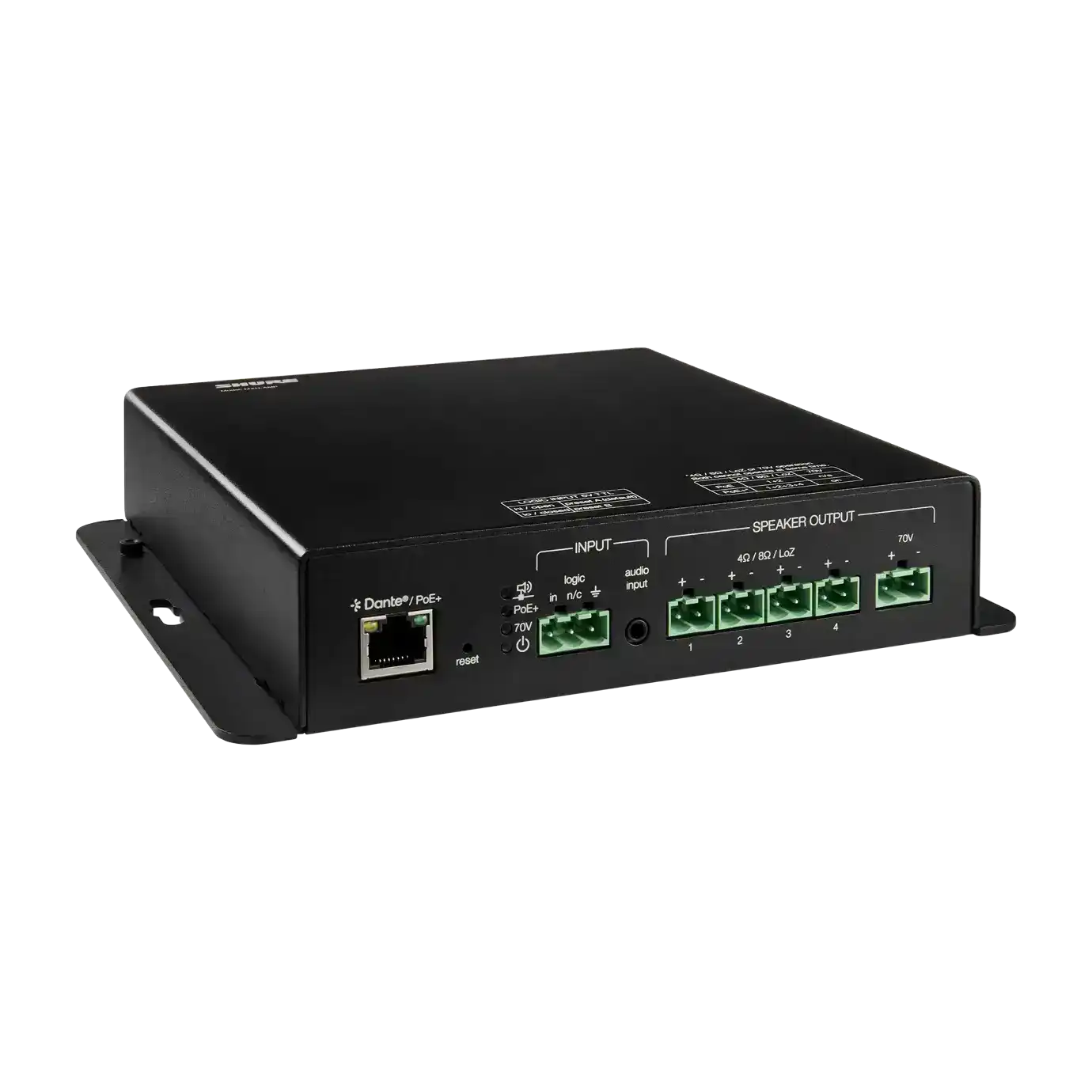

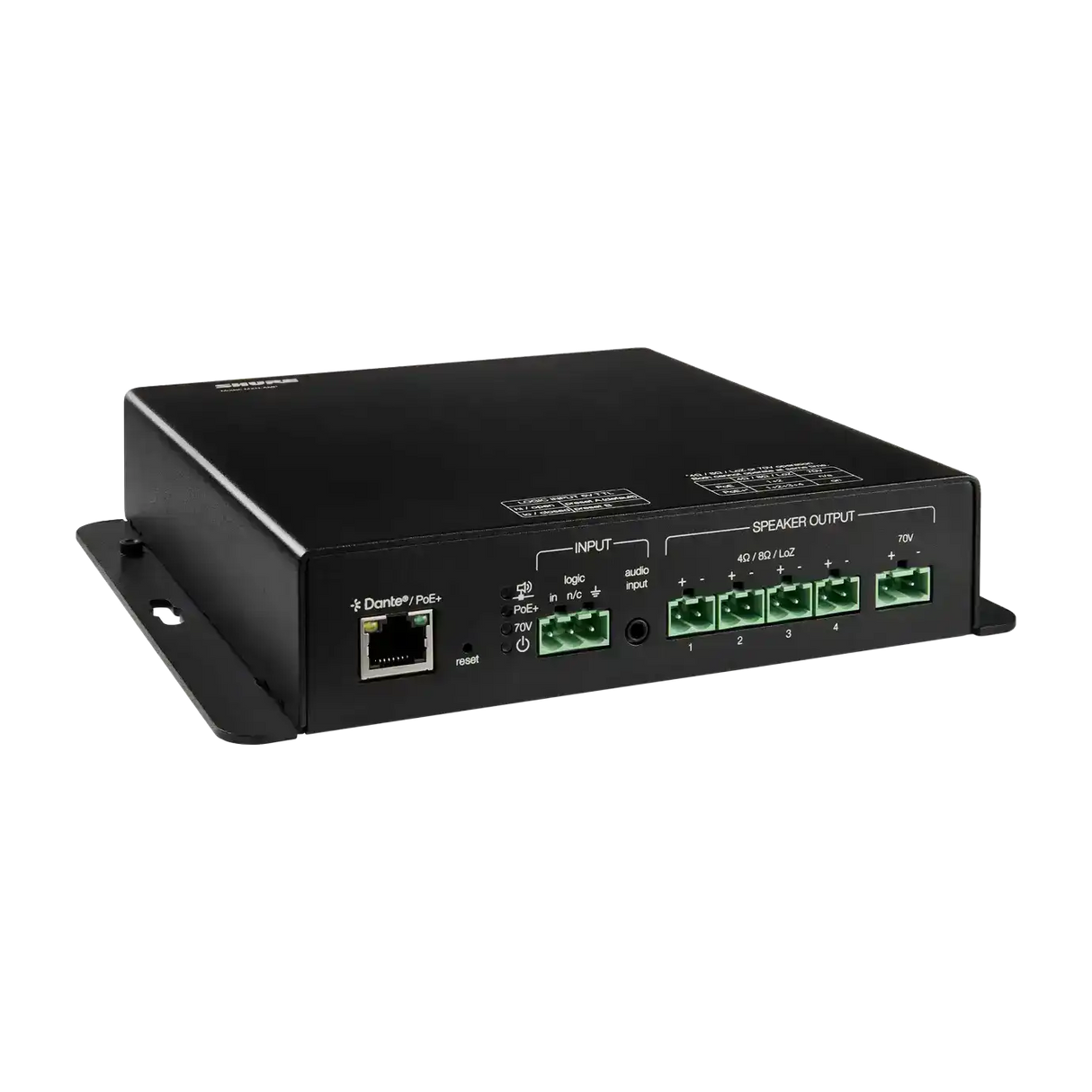

Shure MXN-AMP PoE+ Powered Multichannel Amplifier
The Shure MXN-AMP is a compact PoE+ powered multichannel amplifier designed for conferencing applications within the Microflex Ecosystem. It delivers clear, intelligible speech and program audio while powering multiple MXP-series ceiling loudspeakers. The amplifier supports flexible installation with Dante networking, analog inputs, and onboard DSP for EQ, delay, limiter, and signal generation.
It can drive up to 4 MXP loudspeakers in 8 ohm mode or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode with 14.5 watts of combined output power. The unit is plenum-rated (UL 2043) and offers versatile mounting options including rack, wall, or ceiling. It includes presets optimized for MXP loudspeakers and supports standards-based security features including 802.1x and Shure Audio Encryption.
| Feature | Benefit |
|---|---|
| PoE+ Powered Operation | Simplifies installation with single-cable power and audio delivery |
| Multichannel Output | Powers up to 4 loudspeakers in 8 ohm mode or up to 8 in 70V mode |
| Four Dante Inputs and Outputs | Enables flexible digital audio routing and system integration |
| Onboard DSP Utilities | Provides EQ, delay, limiter, and signal/tone generator for optimized sound |
| Optimized Presets for MXP Loudspeakers | Ensures best audio performance with minimal setup |
| Plenum Rated (UL 2043) | Suitable for installation above drop ceilings |
| Logic Input | Allows switching between presets via external control |
| Shure Audio Encryption | Protects audio content between MXN-AMP and other Microflex Ecosystem devices |
| Specification | Details |
|---|---|
| Amplifier Type | Class D Multichannel Amplifier |
| Combined Output Power | 14.5 watts |

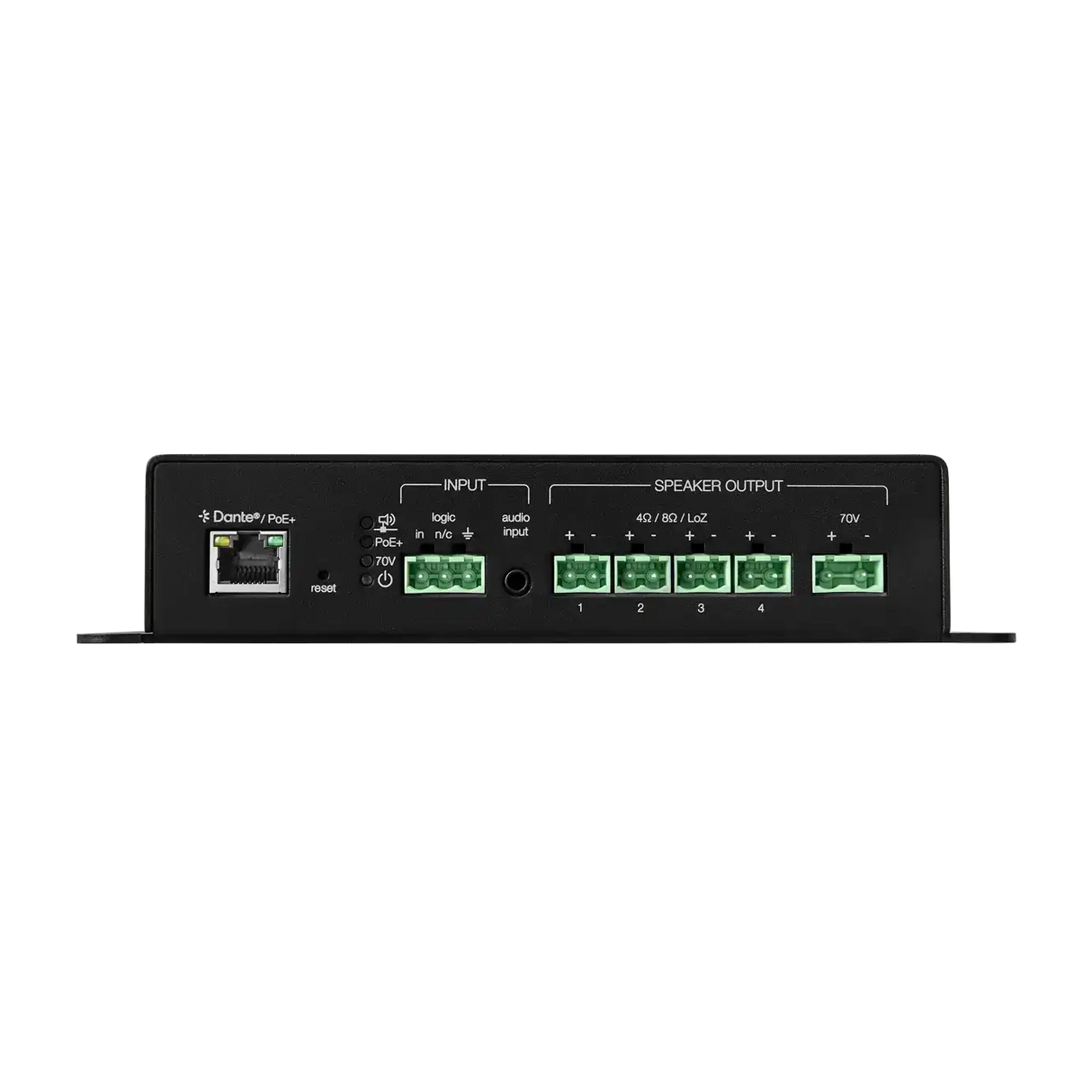

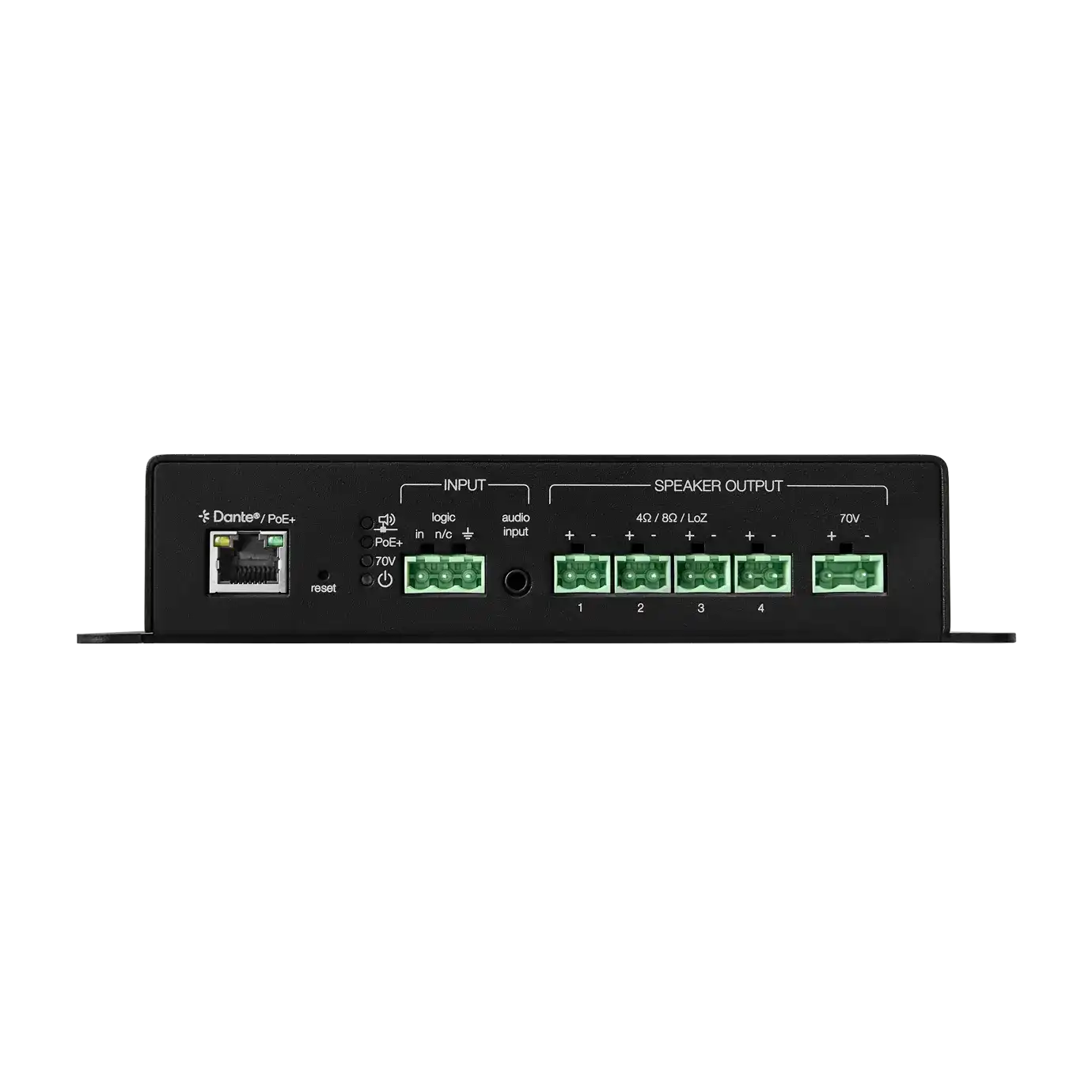

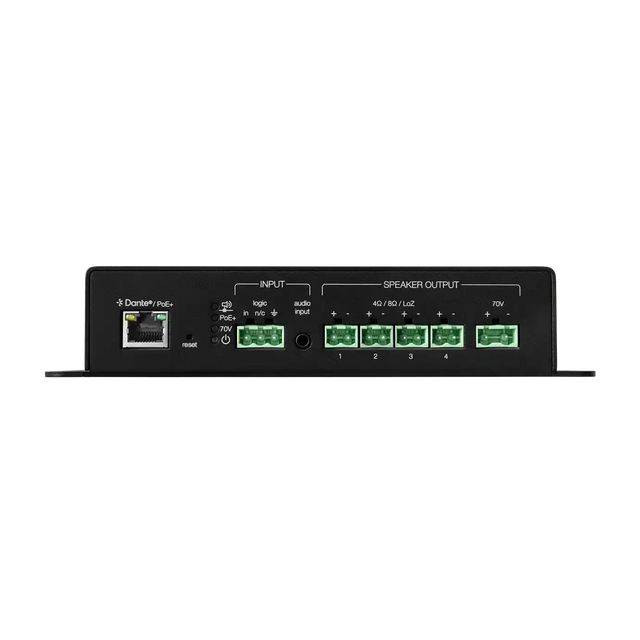

| Inputs | 4 Dante, 1 unbalanced stereo analog (3.5 mm TRS), 1 logic input |
| Outputs | 4 Dante, 4 LoZ loudspeaker outputs, 1 70V loudspeaker output |
| Networking | Dante / AES67 |
| Power Requirement | PoE+ (IEEE 802.3at) over RJ45 |
| Mounting Options | Rack (with optional CRT-1 tray), wall, or ceiling |
| Dimensions | 7.95 x 7.01 x 1.57 in (202 x 178 x 40 mm) |
| Weight | 2.43 lbs (1.1 kg) |
| Applications | Conference rooms, meeting spaces, hybrid collaboration |
| Aspect | Shure MXN-AMP | Typical PoE+ Amplifier | Competitor Multichannel Amplifier |
|---|---|---|---|
| Output Power | 14.5 W combined | Varies | Varies |
| Loudspeaker Support | Up to 8 in 70V or 4 in 8 ohm | Varies | Varies |
| Networking | 4 Dante in/out | Varies | Varies |
| DSP | Onboard EQ, delay, limiter | Varies | Varies |
| Plenum Rating | UL 2043 | Varies | Varies |
| Primary Use | Microflex Ecosystem conferencing | General AV | General AV |
| Security | Shure Audio Encryption + 802.1x | Varies | Varies |
FAQ
- How many loudspeakers can the MXN-AMP power? It can power up to 4 MXP loudspeakers in 8 ohm mode or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
- Does it require a separate power supply? No, it is powered via PoE+ over the network cable.
- Is Dante networking supported? Yes, it includes four Dante inputs and four Dante outputs.
- Can it be installed above a drop ceiling? Yes, it is UL 2043 plenum rated.
- Does it include onboard DSP? Yes, it features EQ, delay, limiter, and presets optimized for MXP loudspeakers.
- Is it compatible with Shure conferencing systems? Yes, it integrates seamlessly with the Microflex Ecosystem and supports Microsoft Teams and other platforms.
