Shure MXWAPX4-Z10 Microflex Wireless Next 4-Channel Access Point Transceiver

Product Overview

The Shure MXWAPX4-Z10 is a four-channel access point transceiver for the Microflex Wireless neXt conferencing ecosystem, serving as the network hub that links MXW neXt wireless transmitters to a room's audio system. It combines analog, Dante, and USB-C connectivity with built-in IntelliMix DSP, so a single device handles wireless reception, processing, and routing for boardrooms and conference rooms. Automatic Frequency Management scans the spectrum and moves channels when interference is expected, reducing the RF coordination burden on integrators. A supplied mounting plate and paintable cover allow discreet ceiling or wall placement where low visibility matters.

Product Description

The MXWAPX4 manages up to four wireless audio channels from MXW neXt transmitters and brings their audio into the room system over analog, Dante, or USB-C connections. Built-in IntelliMix DSP applies automatic mixing, acoustic echo cancellation, noise reduction, automatic gain control, and EQ, which means a separate DSP is often unnecessary for straightforward conferencing rooms. Power over Ethernet and Dante networked audio both arrive on a single Ethernet cable to simplify installation, and a dual RJ45 connection supports Switched, Split, or Redundant network operation modes for flexible integration into enterprise networks. Two-way wireless transmission enables remote control of the transmitters and delivery of secondary program audio back to each one. The system scales as needs grow: multiple access points combine to support up to 40 compatible channels, or 80 in Europe and select countries, and these figures double in HD mode. Standards-based security covers 802.1x, secure boot and storage, and AES encryption for both wired and wireless control and audio data, and selectable RF output power lets integrators tune coverage to the room. Diagnostic LEDs show power, wireless, and network audio status, and a control user interface is reachable from a PC on the same network. Compatible MXW neXt transmitters and accessories are available at creationnetworks.net.

Key Features

• Four Wireless Channels — Receives up to four MXW neXt wireless transmitters as the room's access point transceiver.

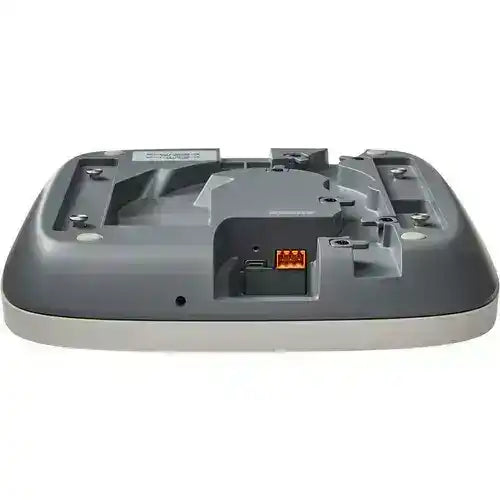

• Analog, Dante, and USB-C Audio — Connects to room systems, networks, and computers without additional interfaces.
• Built-In IntelliMix DSP — Provides automatic mixing, echo cancellation, noise reduction, AGC, and EQ in the unit.
• Automatic Frequency Management — Scans the spectrum, selects a clear channel, and changes channels automatically when interference is likely.
• Single-Cable PoE Install — Power and Dante audio arrive over one Ethernet cable to simplify deployment.
• Flexible Network Modes — Dual RJ45 ports support Switched, Split, or Redundant operation for enterprise integration.
• Two-Way Wireless — Enables remote transmitter control and secondary program audio to each transmitter.
• Scalable Channel Count — Multiple units combine for up to 40 channels (80 in Europe and select countries), doubling in HD mode.
• Enterprise Security — Supports 802.1x, secure boot and storage, and AES encryption for wired and wireless data.

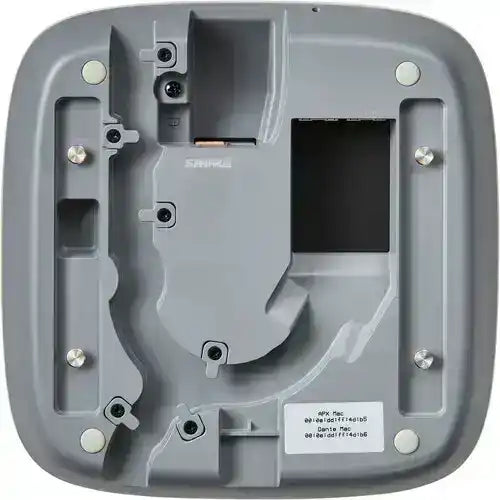

• Discreet Mounting — Supplied mounting plate and paintable cover allow low-visibility ceiling or wall placement.

Typical Applications

• Boardroom — Provides wireless conferencing reception and processing with a discreet, paintable enclosure.
• Conference room — Brings MXW neXt wireless audio into the room system over Dante, analog, or USB-C.
• Huddle room — Delivers compact, single-cable wireless conferencing in small spaces.
• Multi-purpose room — Adapts channel coverage and RF power as room use changes.
• Training room — Supports multiple wireless presenter and participant microphones.
• Commercial meeting space — Scales across rooms with redundant networking and centralized management.

Technical Specifications

Frequently Asked Questions

What does the MXWAPX4 do in a Microflex Wireless system?
It is the access point transceiver that receives up to four MXW neXt wireless transmitters and routes their audio into the room system, with onboard IntelliMix DSP handling processing.

How is it installed and powered?
Power over Ethernet and Dante audio are delivered on a single Ethernet cable, and the supplied mounting plate and paintable cover allow discreet ceiling or wall placement.

Can the system grow beyond four channels?
Yes. Multiple access points combine to support up to 40 channels (80 in Europe and select countries), and those figures double in HD mode.

How does it integrate with our network securely?
Dual RJ45 ports support Switched, Split, or Redundant modes, and it supports 802.1x, secure boot and storage, and AES encryption for wired and wireless data.

What about warranty and support?
The unit carries the manufacturer warranty. Contact the Creation Networks team for configuration, integration, and warranty assistance.
