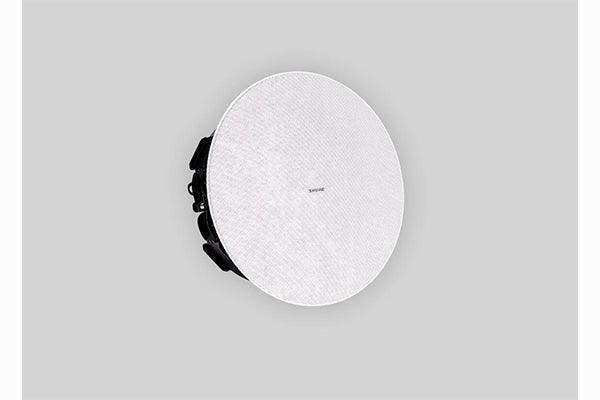

Shure MXN5W-C+TB-V Networked Ceiling Loudspeaker Bundle with Tile Bridge
Shure MXN5W-C+TB-V Networked Ceiling Loudspeaker Bundle with Tile Bridge is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Shure MXN5W-C+TB-V Networked Ceiling Loudspeaker Bundle with Tile B...
The Shure MXN5W-C+TB-V bundle combines the MXN5W-C networked ceiling loudspeaker with the A-MXN5-TB tile bridge for straightforward drop ceiling installation. The loudspeaker delivers high-quality speech reproduction optimized for AV conferencing with a pre-tuned frequency response for excellent voice intelligibility. It features a low-profile, shallow-can design and PoE/PoE+ power, eliminating the need for a separate amplifier or outboard DSP.
The 2-way system includes a 5.25-inch woofer and integrates Shure DSP utilities such as EQ, delay, limiter, and signal/tone generator. It supports 2 Dante inputs and 1 Dante output with AES67 compatibility and Shure Audio Encryption for secure networked audio. The aesthetic white design includes a removable magnetic paintable grille and blends discreetly into ceiling environments.
The included A-MXN5-TB tile bridge enables quick and secure mounting in standard drop ceilings. This bundle is ideal for boardrooms, conference rooms, and professional AV conferencing installations requiring clear speech reinforcement with easy deployment and network control via Shure Designer software.
Features Chart
| Feature | Benefit |
|---|---|
| PoE/PoE+ Powered | Eliminates the need for a separate amplifier or external power supply |
| Pre-Tuned Frequency Response | Optimized for clear voice intelligibility in conferencing applications |
| 2 Dante Inputs / 1 Dante Output | Supports flexible networked audio routing with low latency |
| Integrated DSP Utilities | Provides EQ, delay, limiter, and signal generator for system optimization |
| Low-Profile Shallow-Can Design | Fits most drop ceiling installations with minimal visual impact |
| Removable Magnetic Paintable Grille | Allows custom color matching while covering the entire loudspeaker |
| AES67 and Dante Domain Manager Compatible | Ensures interoperability in modern AV networks |
| Tile Bridge Included | Enables fast, secure mounting in standard drop ceiling grids |
Specifications Table
| Specification | Details |
|---|---|
| Loudspeaker Type | Networked Ceiling Loudspeaker |
| Driver | 2-way with 5.25 in (13.3 cm) woofer |
| Frequency Response | 120 Hz to 20 kHz (-3 dB) |
| Power Requirements | PoE (Class 0) or PoE+ (Class 4) |
| Connectivity | RJ45 with 2 Dante inputs / 1 Dante output |
| Maximum Output Level | 92 dB SPL (PoE) / 98 dB SPL (PoE+) at 1 meter |
| Plenum Rating | UL 2043 (suitable for air handling spaces) |
| Dimensions | 12 x 12 x 4 in (304.8 x 304.8 x 101.6 mm) |
| Weight | 6.5 lb (2.95 kg) |
| Bundle Contents | MXN5W-C loudspeaker and A-MXN5-TB tile bridge |
| Control Software | Shure Designer |
Compare Chart
| Aspect | Shure MXN5W-C+TB-V Bundle | Standard Ceiling Speakers | Non-Networked Loudspeakers |
|---|---|---|---|
| Power Source | PoE/PoE+ | Separate amplifier required | Separate amplifier required |
| Network Audio | Dante with 2 in / 1 out | Analog only | Analog only |
| DSP Integration | Built-in EQ, delay, limiter | External DSP needed | External DSP needed |
| Installation | Tile bridge for drop ceilings | Varies | Varies |
| Typical Applications | AV conferencing speech | General background music | General PA |
| Control | Software-based via Designer | Manual or limited | Manual |
| Plenum Rating | UL 2043 | Varies | Varies |
FAQ
- What is included in the MXN5W-C+TB-V bundle? The bundle contains the MXN5W-C networked ceiling loudspeaker and the A-MXN5-TB tile bridge for drop ceiling installation.
- Does the loudspeaker require a separate amplifier? No, it is PoE/PoE+ powered and includes integrated amplification.
- How is the system configured? Configuration and control are performed via the Shure Designer software.
- Is the loudspeaker suitable for plenum spaces? Yes, it carries a UL 2043 plenum rating for use in air handling spaces.
- Can the grille be painted? Yes, the magnetic grille is paintable to match ceiling decor.
- What audio networking does it support? It features Dante networking with AES67 compatibility and Shure Audio Encryption.
